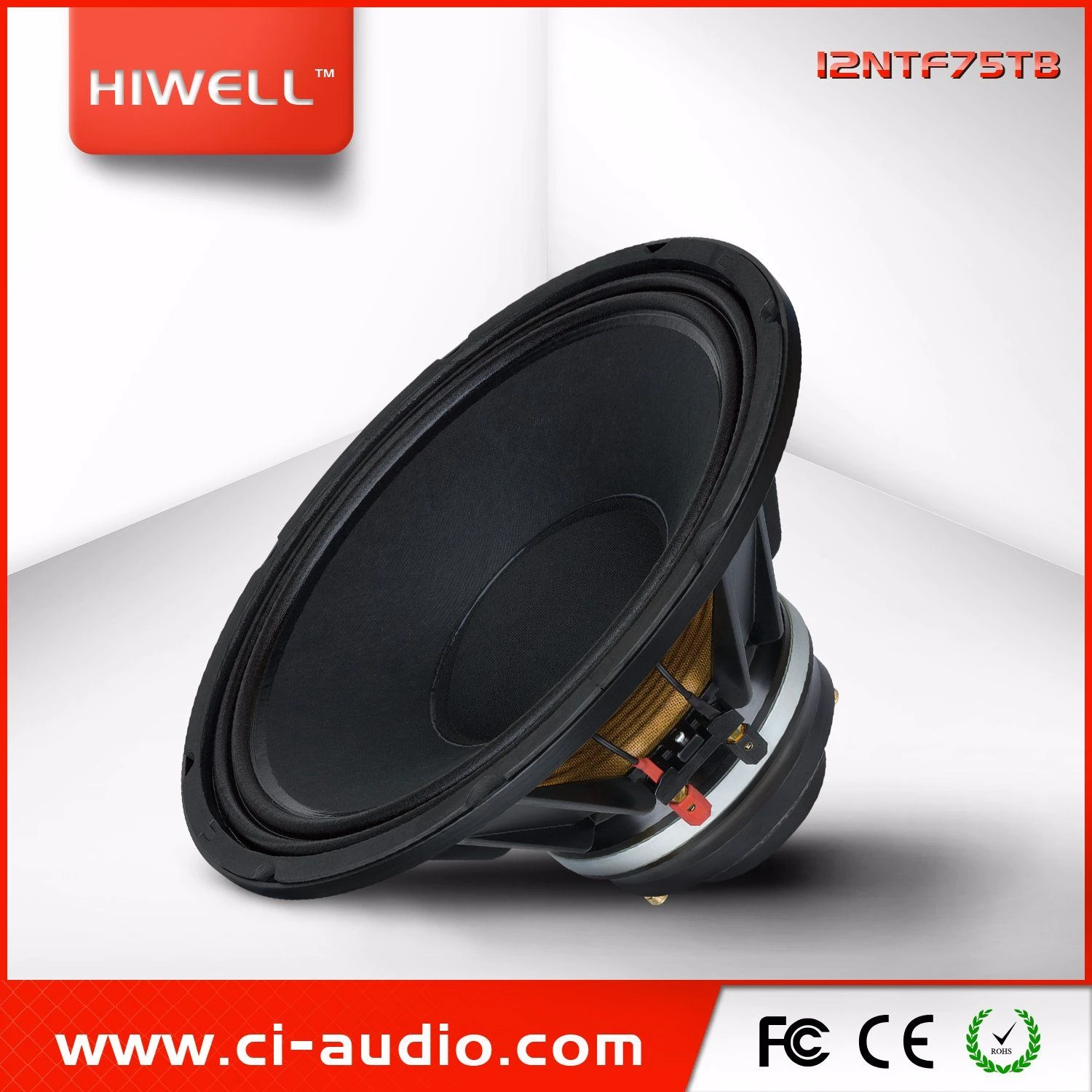

12” Coaxial Loudspeaker, Neodymium Manget, Professional Speaker.
- Sensitivity
- 97 dB / 108 dB
- Application
- Stage
- Activity
- Passive
- Operation Mode
- No
- Speaker Material
- Plastic
- Certification
- CE, RoHS, FCC
Specifications
| Product name | 12” Coaxial Loudspeaker, Neodymium Manget, Professional Speaker. |
|---|---|
| Category | Speaker Drivers, Woofers & Tweeters |
| Customization | Available |
| Activity | Passive |
| Model NO. | 12NTF75TB |
| Operation Mode | No |
| Speaker Material | Plastic |
| Application | Stage |
| Certification | CE, RoHS, FCC |
| AES Power Rating | 400 W / 110 W |
| Program Power | 800 W / 220W |
| Voice Coil | 3''vc Ccaw in/out / 3''vc Aluminum |
| Frequency Range | 60-3000Hz / 500-18000 Hz |
| Sensitivity | 97 dB / 108 dB |
| Diaphragm Material | Titanium |
| Magnet | Neodymium |
| Chassis | Aluminum |
| Transport Package | Carton |
| Specification | 325 x 325 x 205 mm |
| Origin | China |
| HS Code | 8518290000 |
| Production Capacity | 50000 |
| Price | US$46.00-116.00 1 Piece(MOQ) |
| Supplier | GUANGDONG HIWELL AUDIO CO., LTD |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Plastic |
|---|---|
| AES Power Rating | |
| Program Power | |
| Diaphragm Material | Titanium |
Additional data
| Nominal diameter | mm(in.) | 311(12) |
|---|---|---|
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 6.1 |
| Program power (1) | W | 800 |
| AES Power rating(2) | W | 400 |
| Sensitivity (3) | dB | 97 |
| Frequency range | Hz | 60 ~ 3000 |
| Voice coil diameter | mm(in.) | 75(3) |
| Chassis material | Aluminum | |
| Magnet material | Neodymium | |
| Magnet dimensions (ODxIDxh) | mm | 138 x 90 x 10 |
| Coil material | CCAW | |
| Former material | Glass Fiber | |
| Xmax(4) | mm | 7.5 |
| Xmech(5) | mm | 13 |
| Gap height | mm | 8 |
| Voice coil Wingding height | mm | 18 |
| Diaphragm material | Titanium | |
| Program power (1) | W | 220 |
| AES Power rating(2) | W | 110 |
| Sensitivity (3) | dB | 108 |
| Frequency range | Hz | 500 ~ 18000 |
| Voice coil diameter | mm(in.) | 72(3) |
| Coil material | ALR |
| DC resistance | Re | Ohm | 5.3 |
|---|---|---|---|
| Resonance frequency | Fs | Hz | 60 |
| Moving mass | Mms | g | 50 |
| Compliance | Cms | mm/N | 0.14 |
| Force factor | BL | N/A | 15.3 |
| Mechanical Q-factor | Qms | 5.4 | |
| Electrical Q-factor | Qes | 0.45 | |
| Total Q-factor | Qts | 0.41 | |
| Equivalent air volume | Vas | I | 67 |
| Voice coil Inductance | Le | mH | 0.25 |
| Diaphragm area | Sd | cm² | 581 |
| Reference efficiency | Eta 0 | % | 3.1 |
| Net weight | Kg | 4.5 |
|---|---|---|
| Multipack size (1) (W x D x H) | mm | 325 x 325 x 205 |
| Multipack weight | Kg | 5.1 |
Product description
The supplier lists this product. Its stated application is Stage. The listed model is 12NTF75TB. The specifications below reflect the information publicly displayed on the listing. Noise: 0. Model NO.: 12NTF75TB. Speaker Material: Plastic. AES Power Rating: 400 W / 110 W. Program Power: 800 W / 220W. Frequency Range: 60-3000Hz / 500-18000 Hz. Sensitivity: 97 dB / 108 dB. Diaphragm Material: Titanium.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 12” Coaxial Loudspeaker, Neodymium Manget, Professional Speaker.?
The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 12” Coaxial Loudspeaker, Neodymium Manget, Professional Speaker. cost?
The published price is US$46.00 – 116.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
12NTF75TB · US$46.00 – 116.00 · MOQ 1 Piece
