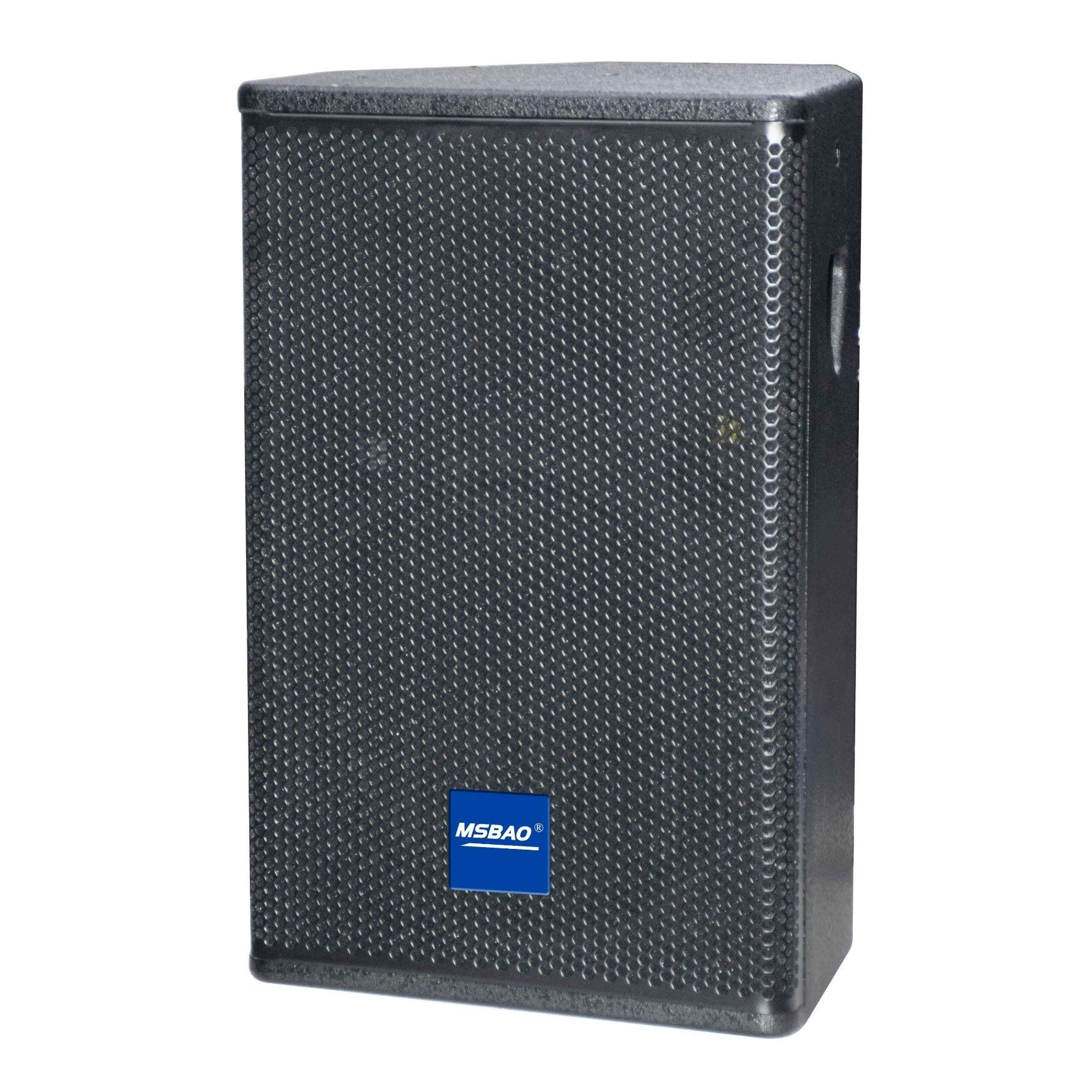

12 Inch Passive 2-Way PA Speaker Professional Audio for Conference and Small Sound System
- Application
- Commercial, Home
- Noise
- ≥105dB
- Hi-Fi
- Not Hi-Fi
- Activity
- Passive
- Operation Mode
- Wire / Remote Control
- Speaker System
- Optional Combination
Specifications
| Product name | 12 Inch Passive 2-Way PA Speaker Professional Audio for Conference and Small Sound System |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Customization | Available |
| Noise | ≥105dB |
| Hi-Fi | Not Hi-Fi |
| Model NO. | MR-12 |
| Activity | Passive |
| Operation Mode | Wire / Remote Control |
| Speaker System | Optional Combination |
| Speaker Material | Wood |
| Application | Commercial, Home |
| THD | >0.01% |
| Woofer | 12-in (65 mm Voice-Coil, 156 mm Magnet) |
| Cabinet | MDF |
| Finish | Water-Based Fine-Particle Paint |
| Grille | 1.2 mm Steel Mesh |
| Transport Package | Carton |
| Specification | 350 × 340 × 546 mm |
| Origin | China |
| Package Size | 40.00cm * 40.00cm * 60.00cm |
| Package Gross Weight | 16.400kg |
| Lead Time | 7 days (1 - 1 set) To be negotiated ( > 1 set) |
| Core Advantage | Dual-Ecosystem-Driven Supply Chain Matrix |
| Strategic Ecosystem I | Core Partner in Global Smart Audio Systems |
| Strategic Ecosystem II | Strategic Manufacturer in Smart Interactive Display |
| Lightning Cloud Value | Integrated Solution Delivery Capability |
| Price | US$267.00 1 set(MOQ) |
| Supplier | Shandong Lightning Cloud Technology Engineering Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Wood |
|---|
Additional data
| Specifications | ||||
|---|---|---|---|---|
| Model | MR-8 | MR-10 | MR-12 | MR-15 |
| System Type | Passive Full-Range | Passive Full-Range | Passive Full-Range | Passive Full-Range |
| Crossover | Built-in 2-Way | Built-in 2-Way | Built-in 2-Way | Built-in 2-Way |
| Frequency Response (-10 dB) | 80 Hz – 18 kHz | 70 Hz – 20 kHz | 60 Hz – 20 kHz | 45 Hz – 20 kHz |
| Coverage (H × V) | 80° × 50° | 80° × 50° | 80° × 50° | 80° × 50° |
| Rated Power | 150 W | 250 W | 300 W | 400 W |
| Sensitivity (1W/1m) | 94 dB | 95 dB | 96 dB | 98 dB |
| Nominal Impedance | 8 Ω | 8 Ω | 8 Ω | 8 Ω |
| Maximum SPL | 116 dB / 122 dB (Peak) | 119 dB / 125 dB (Peak) | 121 dB / 127 dB (Peak) | 124 dB / 130 dB (Peak) |
| LF Driver | 8" woofer, 50 mm voice coil | 10" woofer, 50 mm voice coil | 12" woofer, 65 mm voice coil | 15" woofer, 75 mm voice coil |
| HF Driver | 25 mm voice coil | 34 mm voice coil | 44 mm voice coil | 44 mm voice coil |
| Connector | NL4 connector | NL4 connector | NL4 connector | NL4 connector |
| Wiring | 1+ / 1- | 1+ / 1- | 1+ / 1- | 1+ / 1- |
| Cabinet Material | MDF | MDF | MDF | MDF |
| Finish | Water-based textured paint | Water-based textured paint | Water-based textured paint | Water-based textured paint |
| Grille | Steel grille | Steel grille | Steel grille | Steel grille |
| Dimensions (W × D × H) | 250 × 218 × 424 mm | 296 × 280 × 500 mm | 350 × 340 × 546 mm | 412 × 358 × 646 mm |
| Net Weight | 8.4 kg | 12.2 kg | 16.4 kg | 23.3 kg |
Product description
The supplier lists this product. Its stated application is Commercial, Home. The listed model is MR-12. The specifications below reflect the information publicly displayed on the listing. Noise: ≥105dB. Model NO.: MR-12. Speaker Material: Wood.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 12 Inch Passive 2-Way PA Speaker Professional Audio for Conference?
The listed minimum order quantity is 1 set. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 12 Inch Passive 2-Way PA Speaker Professional Audio for Conference cost?
The published price is US$267.00 per set. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
