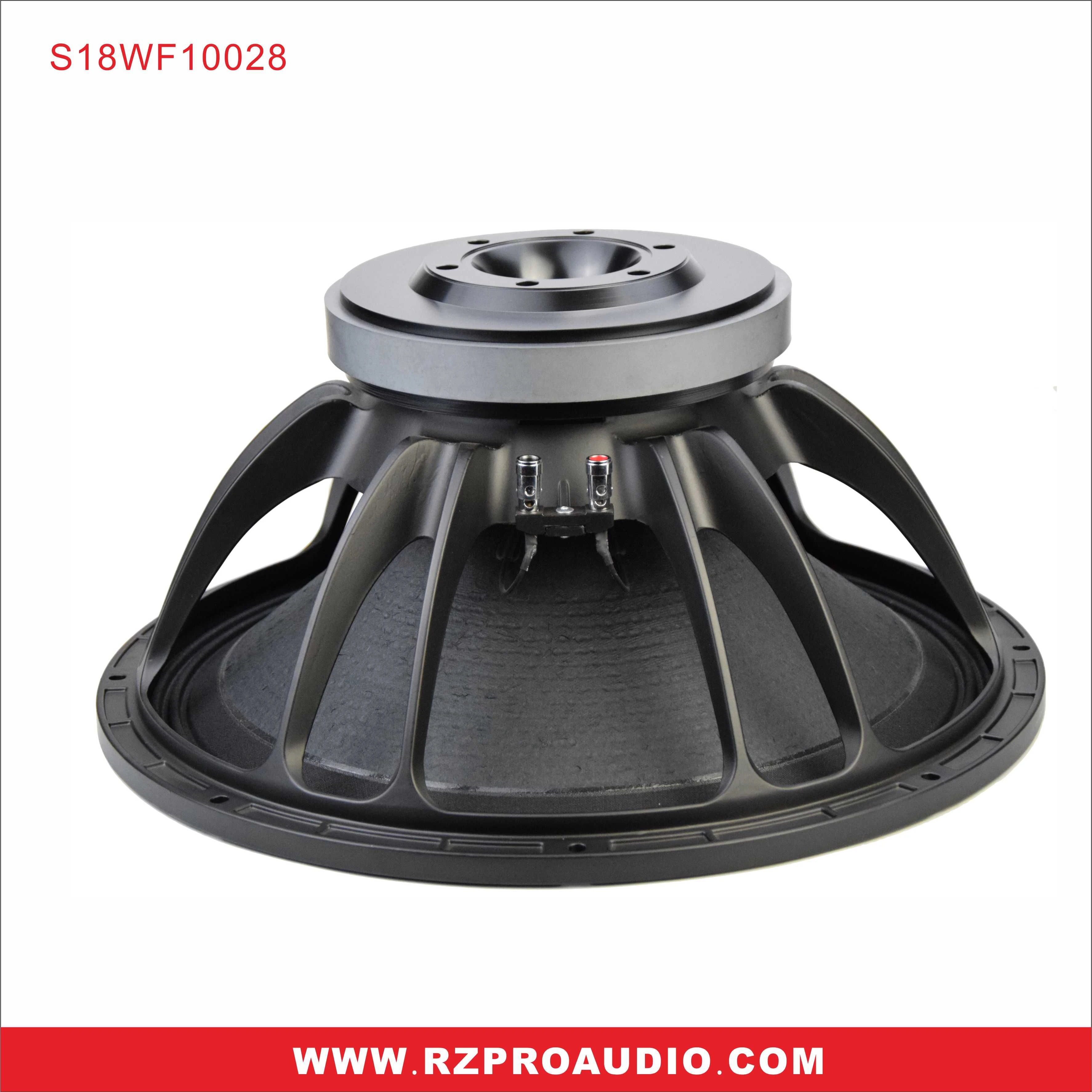

18inch Ferrite Punch Bass Professional Audio Subwoofer Altavoz Speaker
- Type
- Subwoofer
- Application
- Commercial
- Activity
- Passive
- Cone
- Paper with UK Coating
- Spider
- 2 Spiders with Silicone
- Voice Coil
- Copper in/out Fiberglass Bobbin
Specifications
| Product name | 18inch Ferrite Punch Bass Professional Audio Subwoofer Altavoz Speaker |
|---|---|
| Category | Speaker Drivers, Woofers & Tweeters |
| Customization | Available |
| Activity | Passive |
| Application | Commercial |
| Model NO. | S18WF10028 |
| Cone | Paper with UK Coating |
| Spider | 2 Spiders with Silicone |
| Voice Coil | Copper in/out Fiberglass Bobbin |
| Magnet | Ferrite |
| Type | Subwoofer |
| Transport Package | Strong Carton |
| Specification | Shipping Weight ( 1 unit) 15 kg |
| Origin | Guangzhou, China |
| HS Code | 8518290000 |
| Production Capacity | 3000/Month |
| https | //ruizhengsound.en.made-in-china.com/product/FOPGYuMAgRVp/China-15inch-Loose-Magnetic-Material-Punchful-Bass-Sound-Bar-Speaker.html |
| Price | US$73.00-78.00 2 Pieces(MOQ) |
| Supplier | Foshan Ruizheng Audio Co.,Ltd |
| Data retrieved | 2026-10-23 |
Additional data
| MODEL S18WF10028 | ||||
|---|---|---|---|---|
| Specifications | Thiele Small Parameters | |||
| TYPE | Subwoofer | Fs | 33 Hz | |
| Nominal Diameter | 465 mm/18 in | Re | 5.6ohm | |
| Rated impedance | 8 ohm | Qms | 6.98 | |
| Nominal (AES) | 1000 W | Qes | 0.42 | |
| Continuous Program | 2000 W | Qts | 0.40 | |
| Sensitivity(1w/1m) | 96 dB | Vas | 233L | |
| Frequency Range | 33Hz-1500Hz | Sd | 0.125 m2 | |
| Voice Coil Diameter | 100 mm/4 in | Mms | 207 g | |
| Voice Coil Material | Copper out/in | BL | 25 T.M | |
| Mounting lnformation | Shipping lnformation | |||
| Overall Diameter | φ460 mm/φ18.1 in | Net Weight ( 1 unit) | 13 kg | |
| Bolt Circle Diameter | φ443 mm/φ17.4 in | Shipping Weight ( 1 unit) | 15 kg | |
| Mount Baffle Cut-out | φ423 mm/φ16.7 in | Package Size ( 1 unit) | 50x50x24 cm | |
| Depth | 210 mm/8.26 in | |||
| Bolt Hole Diameter | 8-6.5mm/8-0.26 in |
Product description
The supplier lists this product as Subwoofer. Its stated application is Commercial. The listed model is S18WF10028. The specifications below reflect the information publicly displayed on the listing. Model NO.: S18WF10028.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 18inch Ferrite Punch Bass Professional Audio Subwoofer Altavoz Speaker?
The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 18inch Ferrite Punch Bass Professional Audio Subwoofer Altavoz Speaker cost?
The published price is US$73.00 – 78.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
S18WF10028 · US$73.00 – 78.00 · MOQ 2 Pieces
