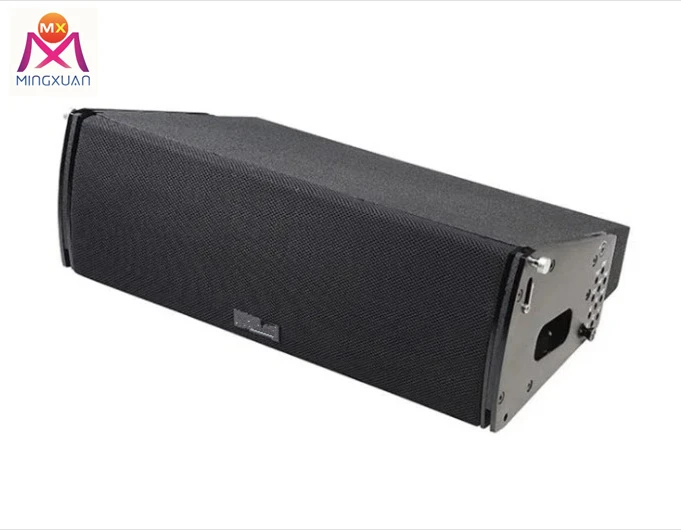

2 Way Double 8 Inch Powered Line Array Speaker with DSP Mini Subwoofer Active PA Speaker System for Conference Room
PA, Stage & Line-Array Speakers

2 Way Double 8 Inch Powered Line Array Speaker with DSP Mini Subwoofer Active PA Speaker System for Conference Room

Model: MX-A8A Customization available Speakers & Audio Systems
US$300.00 – 600.00
MOQ 1 Piece
Application
Commercial, Home
Activity
Active
Operation Mode
Wire / Remote Control
Speaker System
5.1 Channel
Speaker Material
Metal
Certification
CE, RoHS
Send Inquiry Full specifications

Specifications

Product name2 Way Double 8 Inch Powered Line Array Speaker with DSP Mini Subwoofer Active PA Speaker System for Conference Room
CategoryPA, Stage & Line-Array Speakers
Model NO.MX-A8A
ActivityActive
Operation ModeWire / Remote Control
Speaker System5.1 Channel
Speaker MaterialMetal
ApplicationCommercial, Home
CertificationCE, RoHS
MonitorNo
THD<0.05%
Frequency Range (Hz)70Hz-20kHz
Active Line ArrayClass D Amplifier Module
on-Board DSPEnable for Remote Control
Warranty2 Years
Transport PackageCarton or Flight Case Packing
Specification643× 385× 232mm
OriginGuangdong, China
Production Capacity50000
CustomizationAvailable
Noise≥105dB
Hi-FiHi-Fi
TopA8,active 2-way doule 8" line-array,
HF1x1.75",8ohm 75W
LF2 x 8",4ohm 350W
With amplifier,Class-D,output power1200W 4Ohm
MF350W/700W/ HF:75W/150W
SubA18A,active single 18" line-array,
Configuration18",800W
With Class-D,output power1200W,with built-in two channel DSP made in Germany
PriceUS$300.00-600.00 1 Piece (MOQ)
SupplierGuangzhou MINGXUAN Stage Light Equipment CO.,LTD
Data retrieved2026-10-23

Available options

Speaker MaterialMetal
With amplifier,Class-D,output power1200W 4Ohm
With Class-D,output power1200W,with built-in two channel DSP made in Germany

Additional data

Configuration2*8 inch MF+1*1.75inch HF
Power(AES/Peak)MF:350W/700W/ HF:75W/150W
Impedance4Ohm/ 4Ohm
Sencitivity (1 W/m)MF:102dB/HF:110dB
Rated Maximum SPLMF:124dB/HF:132dB ( peak@1m)
Franquency Range70Hz- 20KHz (+3dB)
Dispertion angle(V x H)H120°x V20°
Input Impedance20 KΩ
Input Sensitivity0.775V
Amplifier Output Power1200W/4ohm
Power ConnectorPower Con
Operating Voltage90~ 120V/190~ 240V
Damping Factor≥400
Weight16Kg
Shipping Size643x385x 232mm
Configuration1*18inch
Power(AES/Peak)800W
Impedance8Ω
Sencitivity (1 W/m)102dB
Rated Maximum SPL131dB (peak@1m)
Franquency Range35Hz- 220KHz (±3dB)
Input Impendance20KΩ
Input Sensitivity0.775V
Amplifier Output Power1200W/8ohm
Operating Voltage90~ 120V/190~ 240V
Damping Factor≥400
Weight44kg
Shipping Size642x620x 489mm

Product description

The supplier lists this product. Its stated application is Commercial, Home. The listed model is MX-A8A. The specifications below reflect the information publicly displayed on the listing. Model NO.: MX-A8A. Speaker Material: Metal. Frequency Range (Hz): 70Hz-20kHz. Noise: ≥105dB. With amplifier,Class-D,output power: 1200W 4Ohm. With Class-D,output power: 1200W,with built-in two channel DSP made in Germany.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for 2 Way Double 8 Inch Powered Line Array Speaker with DSP Mini?

The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does 2 Way Double 8 Inch Powered Line Array Speaker with DSP Mini cost?

The published price is US$300.00 – 600.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
