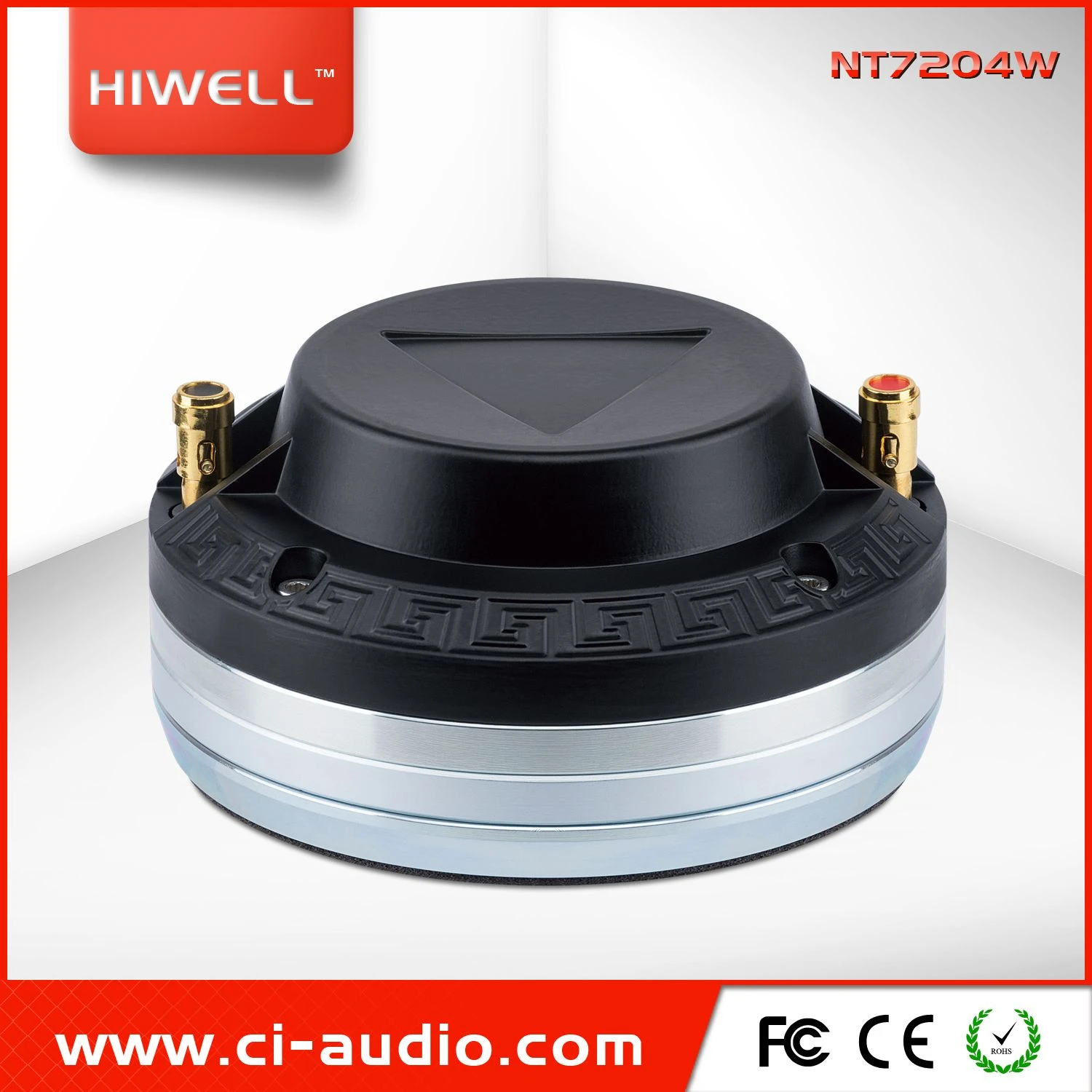

3” Vc Neodymium 220watt Compression Tweeter Professional Loudspeaker System
- Impedance
- 8 Ohm
- Sensitivity
- 109dB
- Application
- Stage
- Operation Mode
- No
- Speaker Material
- Plastic
- Certification
- CE, RoHS, FCC
Specifications
| Product name | 3” Vc Neodymium 220watt Compression Tweeter Professional Loudspeaker System |
|---|---|
| Category | Speaker Drivers, Woofers & Tweeters |
| Model NO. | NT7204W |
| Operation Mode | No |
| Speaker Material | Plastic |
| Application | Stage |
| Certification | CE, RoHS, FCC |
| AES Power Rating | 110W |
| Program Power | 220W |
| Frequency Range | 500-18000Hz |
| Sensitivity | 109dB |
| Voice Coil | 3''vc |
| Former Material | Kapton |
| Coil Material | Aluminum |
| Diaphragm Material | Titanium |
| Impedance | 8 Ohm |
| Magnet | Neodymium |
| Transport Package | Carton |
| Specification | 400 x 270 x 165 mm |
| Origin | China |
| HS Code | 8518290000 |
| Production Capacity | 50000 |
| Customization | Available |
| Activity | Passive |
| Price | US$19.00-63.00 4 Pieces (MOQ) |
| Supplier | GUANGDONG HIWELL AUDIO CO., LTD |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Plastic |
|---|---|
| AES Power Rating | 110W |
| Program Power | 220W |
| Former Material | Kapton |
| Coil Material | Aluminum |
| Diaphragm Material | Titanium |
Additional data
| Throat diameter | mm(in.) | 36(1.4) |
|---|---|---|
| Nominal impedance | Ω | 8 |
| Minimum impedance | Ω | 6 |
| Program power (1) | W | 220 |
| AES Power rating(2) | W | 110 |
| Sensitivity (3) | dB | 109 |
| Frequency range | Hz | 500 ~ 18000 |
| Voice coil diameter | mm(in.) | 72(3) |
| Magnet material | Neodymium | |
| Magnet OD | mm | 124 |
| Coil material | ALR | |
| Former material | Kapton | |
| Diaphragm material | Titanium | |
| Voice coil Inductance | mH | 0.09 |
| Flux density | T | 1.9 |
| Recommended crossover (4) | Hz | 1200 |
| Net weight | Kg | 2.1 |
|---|---|---|
| Multipack size(12) (WxDxH) | mm | 400 x 270 x 165 |
| Multipack weight | Kg | 26.8(12PCS) |
Product description
The supplier lists this product. Its stated application is Stage. The listed model is NT7204W. The specifications below reflect the information publicly displayed on the listing. Model NO.: NT7204W. Speaker Material: Plastic. AES Power Rating: 110W. Program Power: 220W. Frequency Range: 500-18000Hz. Sensitivity: 109dB. Former Material: Kapton. Coil Material: Aluminum. Diaphragm Material: Titanium. Impedance: 8 Ohm.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 3” Vc Neodymium 220watt Compression Tweeter Professional Loudspeaker?
The listed minimum order quantity is 4 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 3” Vc Neodymium 220watt Compression Tweeter Professional Loudspeaker cost?
The published price is US$19.00 – 63.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
NT7204W · US$19.00 – 63.00 · MOQ 4 Pieces
