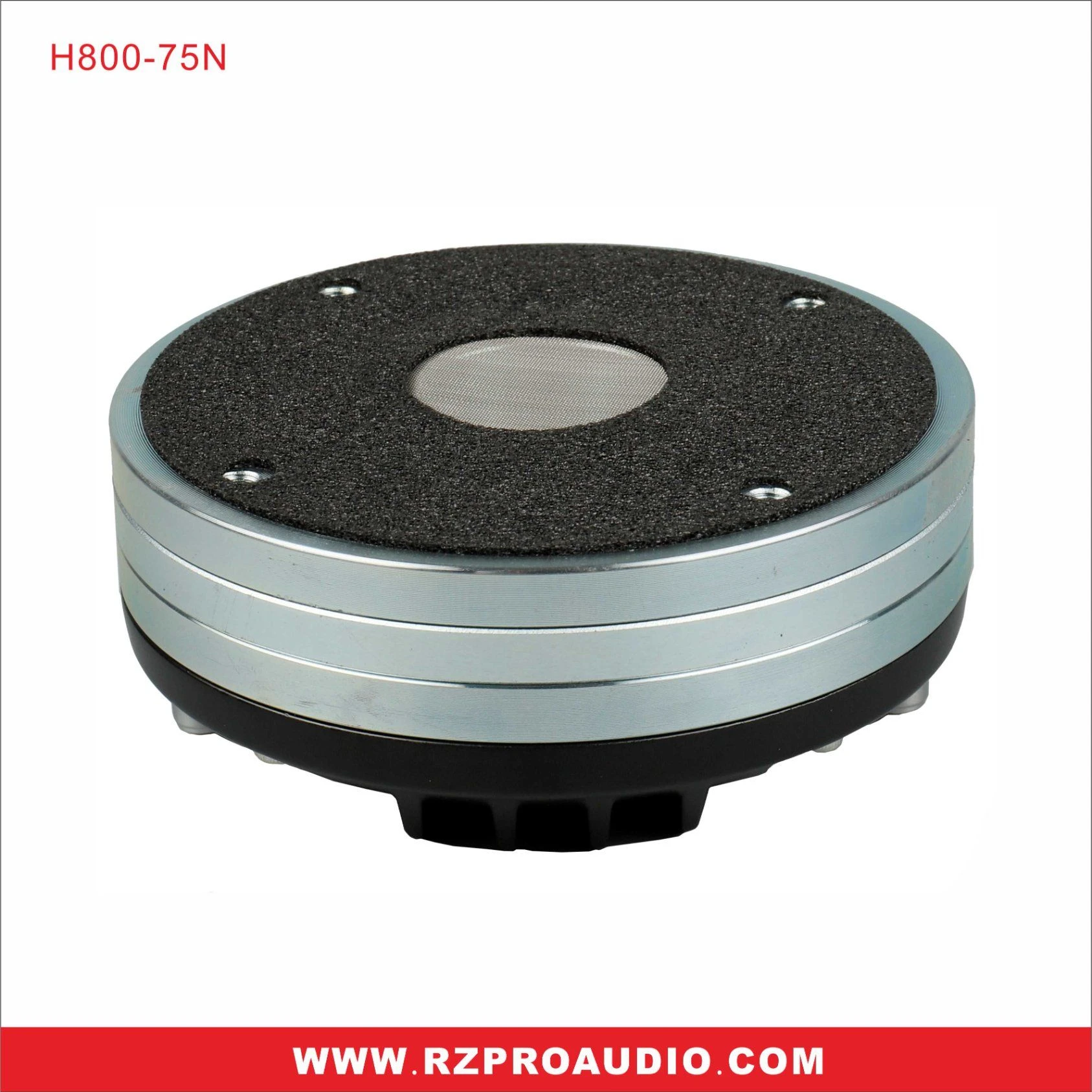

3inch Neo 1.4inch Throat High Spl Tweeter Compression Driver Audio Speaker
Speaker Drivers, Woofers & Tweeters

3inch Neo 1.4inch Throat High Spl Tweeter Compression Driver Audio Speaker

Model: H800-75N Customization available Speaker Parts & Accessories
US$40.00 – 80.00
MOQ 8 Pieces
Type
Compression Driver
Usage
Stage/DJ, Karaoke, Portable Player
Amplification Type
Active
Phase Plug
CNC Alu
Magnet
Neodymium
Diaphragm
Titanium
Send Inquiry Full specifications

Specifications

Product name3inch Neo 1.4inch Throat High Spl Tweeter Compression Driver Audio Speaker
CategorySpeaker Drivers, Woofers & Tweeters
CustomizationAvailable
Amplification TypeActive
UsageStage/DJ, Karaoke, Portable Player
Model NO.H800-75N
Phase PlugCNC Alu
MagnetNeodymium
DiaphragmTitanium
TypeCompression Driver
CoverAlu
Short RingCopper
Transport PackageStrong Carton
SpecificationNet Weight (4unit) 18 kg Shipping Weight
OriginGuangzhou, China
HS Code8518290000
Production Capacity8000
Package Size29.50cm * 29.50cm * 18.50cm
Package Gross Weight19.500kg
https//ruizhengsound.en.made-in-china.com/product/HBcQDlREJFpz/China-1-7inch-Neodymium-Pi-Diaphragm-Line-Array-Compression-Driver.html
PriceUS$40.00-80.00 8 Pieces(MOQ)
SupplierFoshan Ruizheng Audio Co.,Ltd
Data retrieved2026-10-23

Additional data

MODEL H800-75N
SpecificationsThiele Small Parameters
TYPECompression driverFs800 Hz
Exit Throat Diameter36 mm/1.4 inRe5.6ohm
Rated impedance8 ohmDiaphragm MaterialTitanium
Nominal (AES)80 WSuspension MaterialPEK
Continuous Program160 WMagnetNeodymium
Sensitivity(1w/1m)108 dBPhase plugAluminum
Frequency Range800Hz-19000Hz
Voice Coil Diameter75 mm/3 in
Voice Coil MaterialCCAR outside
Mounting lnformationShipping lnformation
Overall Diameterφ124 mm/φ4.9 inNet Weight ( 8unit)17.5 kg
Bolt Circle Diameterφ102 mm/φ4.0 inShipping Weight (8unit)19.5 kg
Bolt Hole Diameter4-M6mm/4-M0.24 inPackage Size (8unit)291x291x183 mm
Depth58 mm/2.3 in

Product description

The supplier lists this product as Compression Driver. Its stated application is Stage/DJ, Karaoke, Portable Player. The listed model is H800-75N. The specifications below reflect the information publicly displayed on the listing. Model NO.: H800-75N.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for 3inch Neo 1.4inch Throat High Spl Tweeter Compression Driver Audio?

The listed minimum order quantity is 8 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does 3inch Neo 1.4inch Throat High Spl Tweeter Compression Driver Audio cost?

The published price is US$40.00 – 80.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
