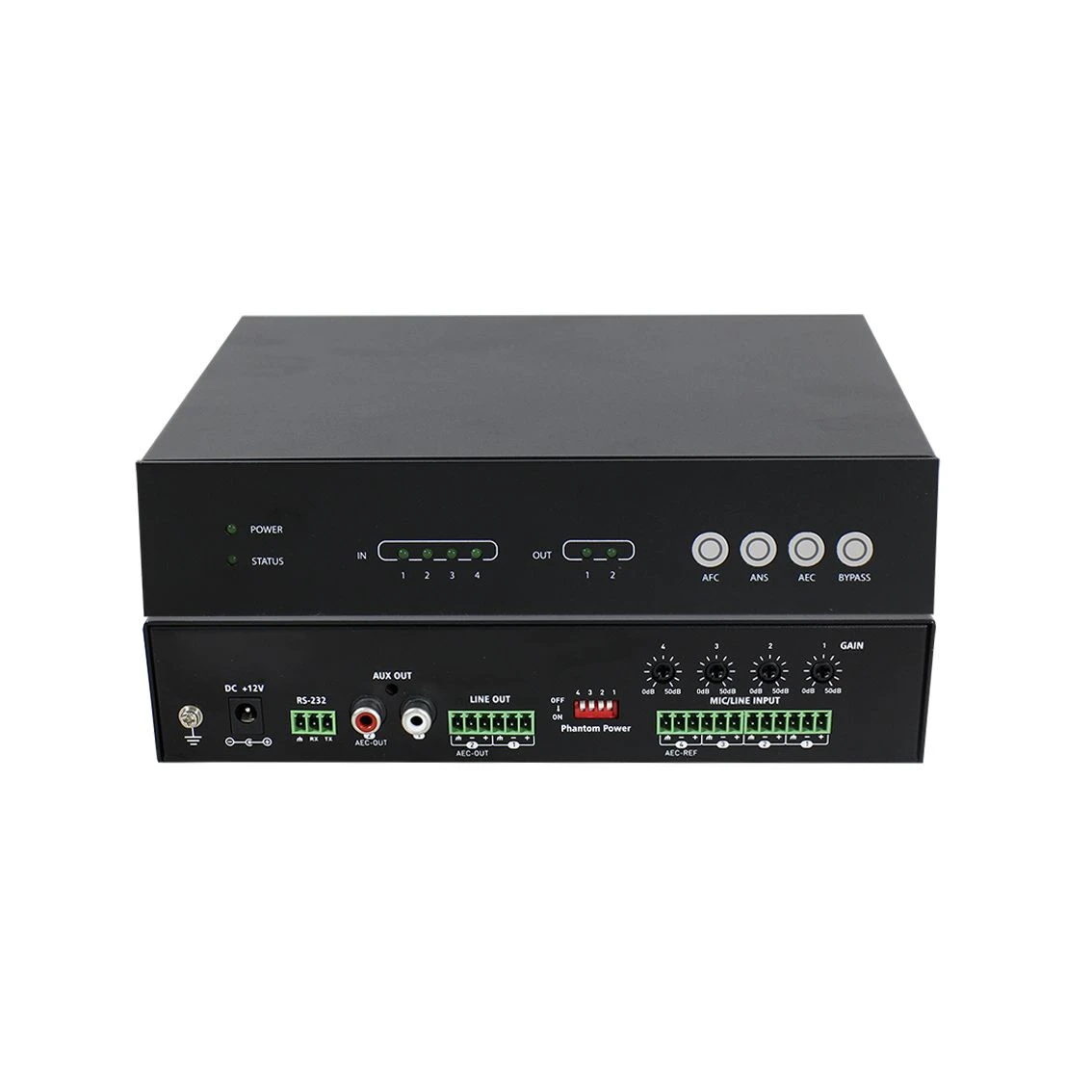

4 in 2 out Remote Interaction and Conference Sound Reinforcement System Automatic DSP Digital Audio Processor with Afc, Aec, Ans and Anc
- Frequency Response
- (20~20kHz)
- Application
- Commercial, Home
- Noise
- <95dB
- Speaker Material
- Metal
- Input Channels(Analog)
- 4
- Output Channels(Analog)
- 2
Specifications
| Product name | 4 in 2 out Remote Interaction and Conference Sound Reinforcement System Automatic DSP Digital Audio Processor with Afc, Aec, Ans and Anc |
|---|---|
| Category | Speaker Amplifiers & Audio Processors |
| Customization | Available |
| Noise | <95dB |
| Speaker Material | Metal |
| Model NO. | DSP-0402+ |
| Application | Commercial, Home |
| Input Channels(Analog) | 4 |
| Output Channels(Analog) | 2 |
| Frequency Response | (20~20kHz) |
| Processor | Adi Sharc 21489@450 MHz Simd |
| Thd+N | <-94dB @17dbu |
| Power Supply | DC12V |
| Dimension | 215X182X44mm |
| Weight | 1.2kg |
| Transport Package | Gift Box/ Export Carton/ Pallet |
| Specification | 215x182x44mm |
| Origin | China |
| HS Code | 8543709200 |
| Production Capacity | 500000PCS Per Year |
| Hz) | ±0.3dB |
| Price | US$257.00 1-9 Pieces US$233.00 10+ Pieces |
| Supplier | Guangzhou Temeisheng Audio Technic Co Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Metal |
|---|---|
| Power Supply | DC12V |
Additional data
| MODEL | DSP-0402+ |
|---|---|
| Input Channels(analog) | 4 |
| Output Channels(analog) | 2 |
| Processor | ADI SHARC 21489@450 MHz SIMD |
| DSP Handling Capacity | 400 MIPS, 1.6 GFLOPS |
| Sampling Rate | 48K/24bit |
| Frequency Response | (20~20kHz): ±0.3dB |
| THD+N | <-94dB @17dBu |
| Input Dynamic Range | 110dB |
| Output Dynamic Range | 112dB |
| Input gain | 0- 50dBu |
| Phantom Power | +48V/10mA max |
| Maximum level | +18dBu |
| Channel isolation @1kHz | 108dB |
| Input Impedance (balanced connection) | 5.4K Ω |
| Output Impedance (balanced connection) | 600 Ω |
| System Latency | <3ms |
| Power Supply | DC12V |
| Dimension | 215x182x44mm |
| Weight | 1.2KG |
Product description
The supplier lists this product. Its stated application is Commercial, Home. The listed model is DSP-0402+. The specifications below reflect the information publicly displayed on the listing. Noise: <95dB. Speaker Material: Metal. Model NO.: DSP-0402+. Frequency Response: (20~20kHz). Power Supply: DC12V.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 4 in 2 out Remote Interaction and Conference Sound Reinforcement?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 4 in 2 out Remote Interaction and Conference Sound Reinforcement cost?
The published price is US$233.00 – 257.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
DSP-0402+ · US$233.00 – 257.00 · MOQ 1 Pieces
