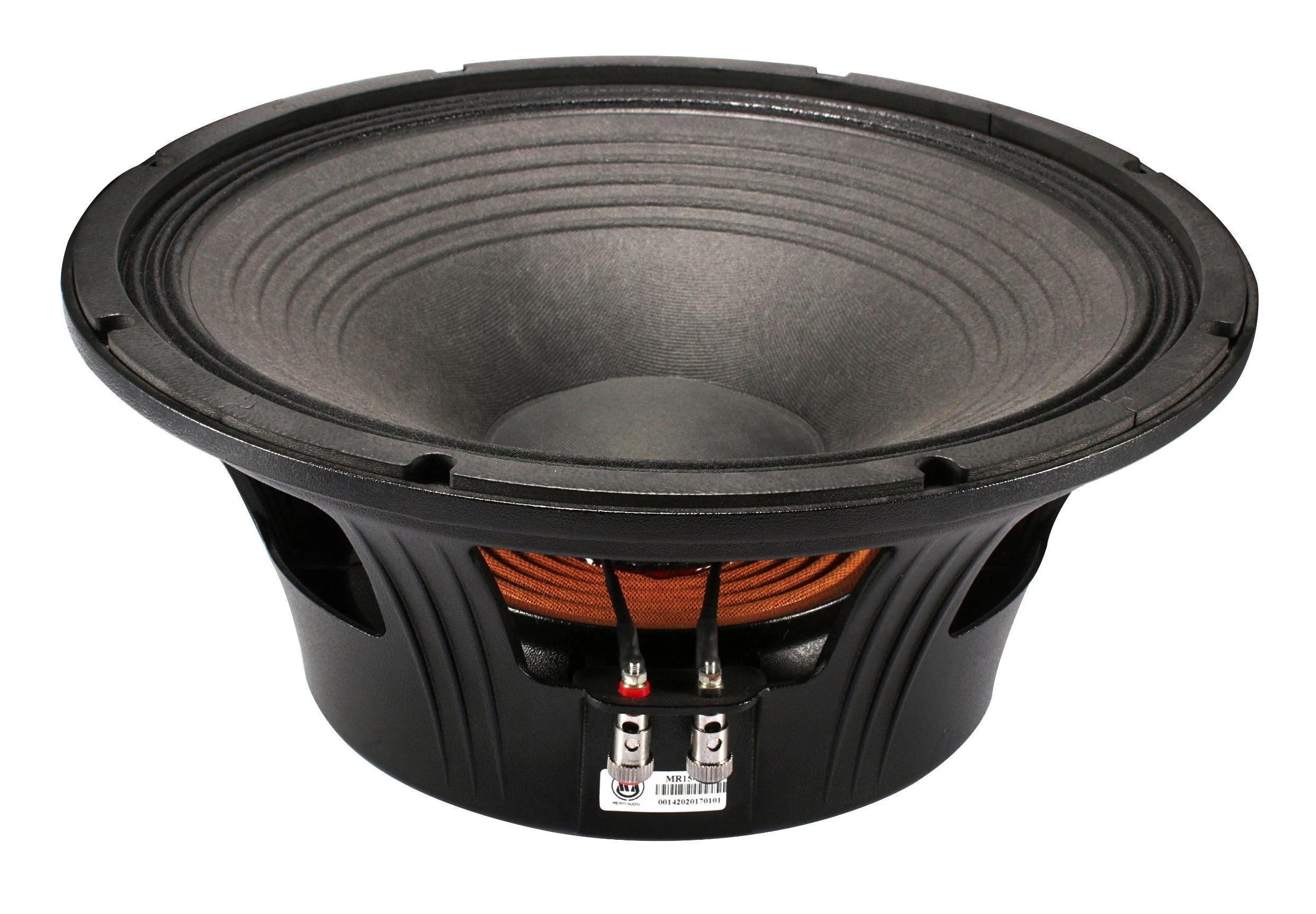

15 Inch 3 Inch Voice Coil AES Power 350W Merry Audio PA Model Speaker
US$35.00 – 40.00
MOQ 50 Pieces
Crossovers, Voice Coils, Cones & Repair Parts
44mm Titanium Diaphragm Compression Driver PRO Sound Audio Speaker
US$15.00 – 20.00
MOQ 2 Pieces
- Power
- 50W
- Type
- Compression Driver
- Usage
- Stage/DJ, Karaoke, Portable Player
- Amplification Type
- Passive
- Phase Plug
- CNC PP
- Magnet
- Ferrite
Specifications
| Product name | 44mm Titanium Diaphragm Compression Driver PRO Sound Audio Speaker |
|---|---|
| Category | Crossovers, Voice Coils, Cones & Repair Parts |
| Customization | Available |
| Amplification Type | Passive |
| Usage | Stage/DJ, Karaoke, Portable Player |
| Model NO. | H26-44 |
| Phase Plug | CNC PP |
| Magnet | Ferrite |
| Diaphragm | Titanium |
| Power | 50W |
| Type | Compression Driver |
| Back Cover | Plastic |
| Transport Package | Strong Carton |
| Specification | Shipping Weight (10unit) 19.5 kg |
| Origin | Guangzhou, China |
| HS Code | 8518290000 |
| Production Capacity | 8000 |
| Package Size | 34.00cm * 27.00cm * 18.00cm |
| Package Gross Weight | 19.500kg |
| https | //ruizhengsound.en.made-in-china.com/product/qXkQFRaECOpK/China-3inch-High-Precise-Y35A-Ferrite-1-4-quot-Throat-Compression-Driver-Speaker.html |
| Price | US$15.00-20.00 2 Pieces(MOQ) |
| Supplier | Foshan Ruizheng Audio Co.,Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Power | 50W |
|---|
Additional data
| MODEL H26-44 | ||||
|---|---|---|---|---|
| Specifications | Thiele Small Parameters | |||
| TYPE | Compression driver | Fs | 1200 Hz | |
| Exit Throat Diameter | 25.4 mm/1 in | Re | 5.9 ohm | |
| Rated impedance | 8 ohm | Diaphragm Material | Titanium | |
| Nominal (AES)1 | 50W | Suspension Material | Titanium | |
| Continuous Program | 100 W | Magnet | Ferrite | |
| Sensitivity(1w/1m)2 | 106dB | Phase plug | Plastic | |
| Frequency Range3 | 1200Hz-19000Hz | |||
| Voice Coil Diameter | 44.4 mm/1.7 in | |||
| Voice Coil Material | CCAR outside | |||
| Mounting lnformation | Shipping lnformation | |||
| Overall Diameter | φ120 mm/φ4.7in | Net Weight (1unit) | 1.45 kg | |
| Bolt Circle Diameter | φ76 mm/φ3.0 in | Shipping Weight (10unit) | 19.5 kg | |
| Bolt Hole Diameter | 4-M6mm/4-M0.24 in | Package Size (10unit) | 34x27x18 cm | |
| Depth | 52 mm/2 in |
Product description
The supplier lists this product as Compression Driver. Its stated application is Stage/DJ, Karaoke, Portable Player. The listed model is H26-44. The specifications below reflect the information publicly displayed on the listing. Model NO.: H26-44. Power: 50W.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 44mm Titanium Diaphragm Compression Driver PRO Sound Audio Speaker?
The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 44mm Titanium Diaphragm Compression Driver PRO Sound Audio Speaker cost?
The published price is US$15.00 – 20.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
