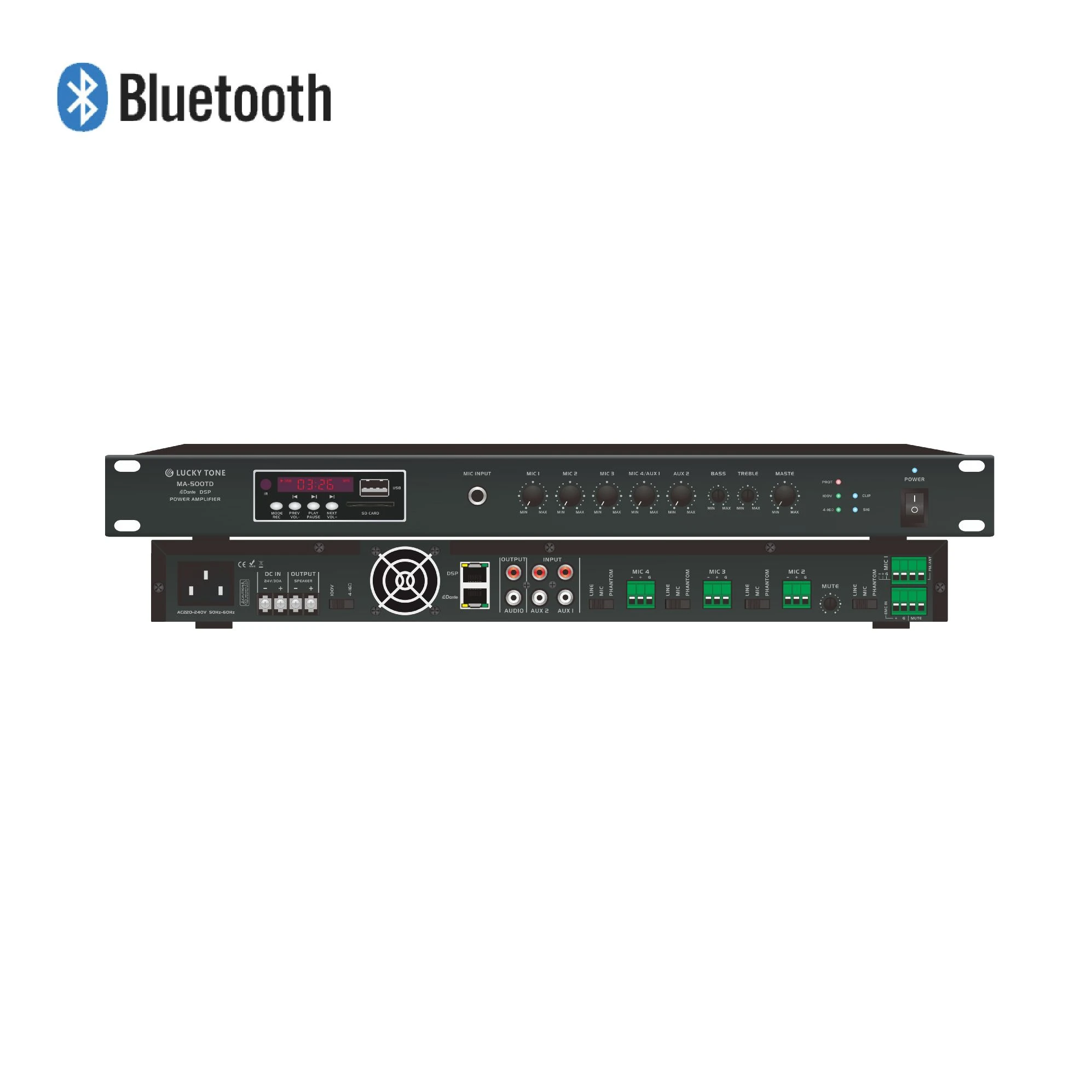

500W 1u Powerful Class D Mixer Amplifier with USB/SD/Aux/Tuner/Bluetooth and Optional Dante Module or DSP Module for Audio System
Speaker Amplifiers & Audio Processors

500W 1u Powerful Class D Mixer Amplifier with USB/SD/Aux/Tuner/Bluetooth and Optional Dante Module or DSP Module for Audio System

Model: MA-500TD Customization available Cables, Adapters & Audio Electronics
US$160.00 – 300.00
MOQ 50 Pieces
Frequency Response
60 - 15,000 Hz
Type
Mixer Amplifier
Usage
Public Address System
Used For
Civilian
Function
Amplifier Combined
Voltage
220-240V AC
Send Inquiry Full specifications

Specifications

Product name500W 1u Powerful Class D Mixer Amplifier with USB/SD/Aux/Tuner/Bluetooth and Optional Dante Module or DSP Module for Audio System
CategorySpeaker Amplifiers & Audio Processors
Model NO.MA-500TD
Used ForCivilian
FunctionAmplifier Combined
Voltage220-240V AC
Conductive ModeD
Rated Power Output500W
Frequency Response60 - 15,000 Hz
ThdLess Than 0.5% at 1kHz (1/3 Rated Power)
S/N RatioBetter Than 80dB
ControlsAll Input Gain, 1 Treble, 1 Bass, 1 Mute, and Powe
ProtectionCurrent Limiter, Short Circuit and Thermal Protect
IndicatorsPower Indicator LED, Prot, 100V, 4-16 Ohm, Clip, S
Output100V or 4 - 16 Ohm Switchable
Power Consumption720W
Built-in Dimensions1 U Rack 19 Inch
Net Weight5.7kg
Transport PackageCarton
Specification44.5(H) x 483(W) x 330(D) mm
OriginGuangzhou, China
Production Capacity5000/Month
CustomizationAvailable
TypeMixer Amplifier
UsagePublic Address System
Model NumberMA-500TD
MA-TD DANTEOptional Dante Audio module for MA-120TD series to Order
MA-TD DSPOptional DSP module for MA-120TD series to Order
BASS100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB)
PanelAluminum plate, black
Casesteel plate, black
PriceUS$160.00-300.00 50 Pieces (MOQ)
SupplierGuangzhou strong sound electronic equipment Co., Ltd
Data retrieved2026-10-23

Available options

Voltage220-240V AC
Rated Power Output500W
Power Consumption720W
Model NumberMA-500TD

Additional data

ModelMA-500TD
Rated Power Output500W
Output100V or 4 - 16 ohm switchable
Frequency Response60 - 16,000 Hz, +/- 3dB
THDLess than 0.5% at 1kHz (1/3 Rated Power)
S/N RatioBetter than 80dB
Tone ControlsBASS: 100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB)
ControlsAll input gain, 1 treble, 1 bass, 1 mute, and power switch
CoolingInternal 12VDC fan, extensive heat sinking
IndicatorsPower indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG
ProtectionCurrent limiter, short circuit and thermal protection circuits
Power Consumption720W
Power Requirments220-240V AC, 50/60 Hz; 24VDC
Dimensions44.5(H) x 483(W) x 330(D) mm
Built-in Dimensions1 U rack 19 inch
Net Weight5.7kg
FinishPanel: Aluminum plate, black Case: steel plate, black

Product description

The supplier lists this product as Mixer Amplifier. Its stated application is Public Address System. The listed model is MA-500TD. Supplier-stated function: Amplifier Combined. The specifications below reflect the information publicly displayed on the listing. Model NO.: MA-500TD. Rated Power Output: 500W. Frequency Response: 60 - 15,000 Hz. Power Consumption: 720W. Model Number: MA-500TD.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for 500W 1u Powerful Class D Mixer Amplifier with?

The listed minimum order quantity is 50 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does 500W 1u Powerful Class D Mixer Amplifier with cost?

The published price is US$160.00 – 300.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
