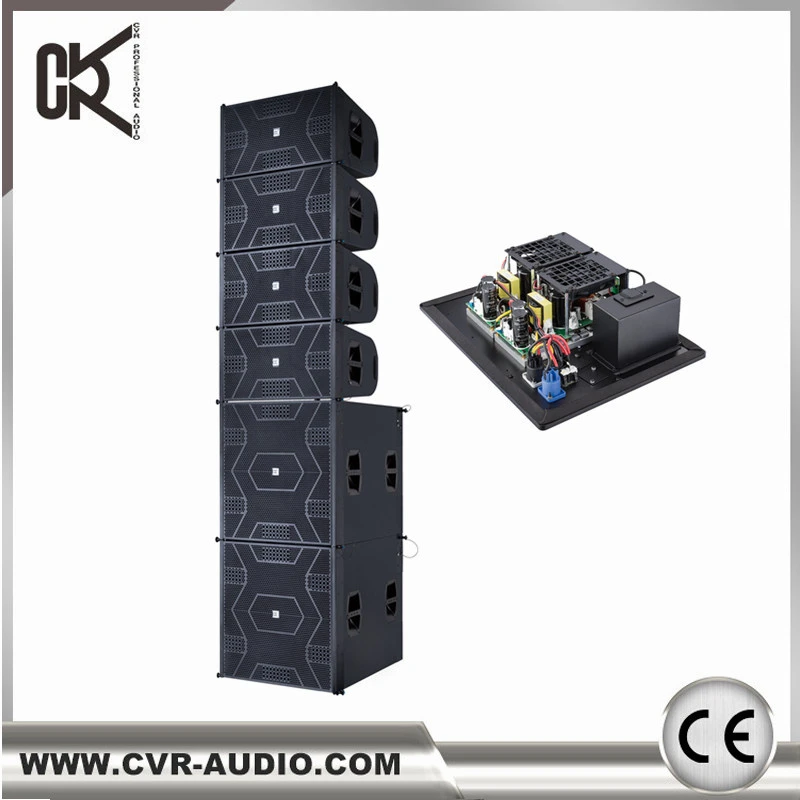

Active 12 Inch Concert Line Array Loudspeaker
- Power
- (RMS)Lf600W, Hf 200W
- Frequency Response
- 65Hz-18kHz±3dB
- Sensitivity
- Lf 105dB(1W@1m) Hf 109dB(1W@1m)
- Material
- Neodymium
- Type
- Professional Line Array Loudspeaker
- Application
- Commercial
Specifications
| Product name | Active 12 Inch Concert Line Array Loudspeaker |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Model NO. | W-3P/W-21P |
| Type | Professional Line Array Loudspeaker |
| Size | 12"Lf 2X2.5" Hf |
| Frequency Response | 65Hz-18kHz±3dB |
| Sensitivity | Lf 105dB(1W@1m) Hf 109dB(1W@1m) |
| Power | (RMS)Lf600W, Hf 200W |
| Material | Neodymium |
| Finish | Water-Proof, Birch Plywood |
| Net Weight | 26kg |
| Dimension | 600×347×451mm(W×h×d) |
| Warranty | Two Years Free Warranty |
| Transport Package | Quality Carton Box or Flight Case |
| Specification | CE, RoHS |
| Origin | China |
| HS Code | 851822 |
| Production Capacity | 10000 PCS/Month |
| Customization | Available |
| Application | Commercial |
| Certification | CE, RoHS, CCC, FCC, ETL, MET |
| Price | US$10,000.00 2 Pieces (MOQ) |
| Supplier | CVR PRO AUDIO CO.,LTD |
| Data retrieved | 2026-10-23 |
Available options
| Size | 12"Lf 2X2.5" Hf |
|---|---|
| Power | |
| Material | Neodymium |
Additional data
| Model | W-3 |
|---|---|
| Type | Two-way line array system |
| Frequency Response | 65Hz-18KHz±3dB |
| Power handling | LF 600W(RMS)2400W(PEAK) |
| HF 200W(RMS)800W(PEAK) | |
| Sensitivity | LF 105dB(1W@1M) |
| HF 109dB(1W@1M) | |
| Max SPL | LF 131dB(PEAK/1M) |
| HF 135dB(PEAK/1M) | |
| Drivers | LF 1×12"(310mm)woofer 75mm(3in)coil |
| HF 2×2.5" neodymium compression driver with 65mm titanium diaphragm | |
| Nominal impedance | LF 8 ohm |
| HF 16ohm | |
| Coverage | 110º H×10º V |
| Crossover | LF 65Hz-1.2KHz HF 1.2KHz-20KHz |
| Connectors | 2×NL4MP speakon |
| Finish | Textured high-density polyurethane coating |
| Enclosure Material | Birch Plywood |
| Dimensions | 600×347×451mm(W×H×D) |
| Packing Dimensions | 670×420×520mm(W×H×D)/0.25cbm |
| Net weight | 25kg |
| Gross weight | 27kg |
| Model | W-21 |
|---|---|
| Type | Sub-bass system |
| Frequency Response | 25Hz-400Hz±3dB |
| Power handling | 1500W(RMS)6000W(PEAK) |
| Sensitivity | 109dB(1W@1M) |
| Max SPL | 138dB(PEAK/1M) |
| Drivers | 1×21"(545mm) neodymium woofer 115mm(4.5in)coil |
| Nominal impedance | 8 ohm |
| Finish | Textured high-density polyurethane coating |
| Connectors | 2×NL4MP speakon |
| Enclosure Material | Plywood |
| Dimensions | 600×650×750mm(W×H×D) |
| Packing Dimensions | 690×740×840mm(W×H×D)/0.76cbm |
Product description
The supplier lists this product as Professional Line Array Loudspeaker. Its stated application is Commercial. The listed model is W-3P/W-21P. The specifications below reflect the information publicly displayed on the listing. Model NO.: W-3P/W-21P. Frequency Response: 65Hz-18kHz±3dB. Sensitivity: Lf 105dB(1W@1m) Hf 109dB(1W@1m). Power: (RMS)Lf600W, Hf 200W. Material: Neodymium.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Active 12 Inch Concert Line Array Loudspeaker?
The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Active 12 Inch Concert Line Array Loudspeaker cost?
The published price is US$10,000.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
W-3P/W-21P · US$10,000.00 · MOQ 2 Pieces
