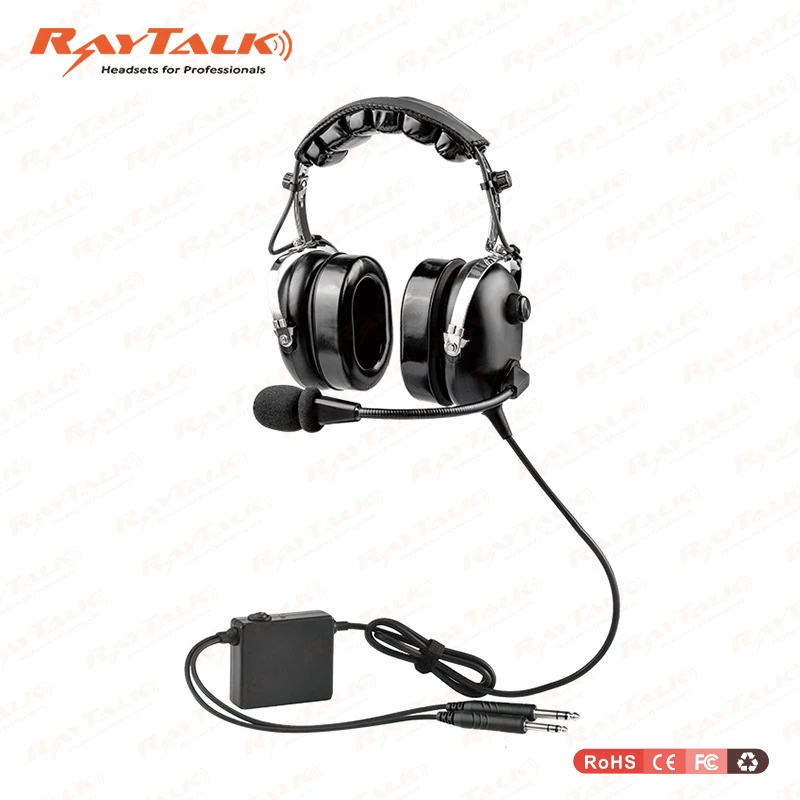

Anr Active Aviation Headset Substitue for David Clark Headset
Call Center, Business & Aviation Headsets

Anr Active Aviation Headset Substitue for David Clark Headset

Model: PH-100AC Customization available Headphones & Earphones
US$200.0024–99 Pieces
US$170.00100+ Pieces
MOQ 24 Pieces
Communication
Wired
Impedance
150 ohms (300 ohms each; wired in parallel)
Frequency Response
100Hz to 8 kHz
Sensitivity
95+/-5 dB SPL
Jack Type
General Aviation
Wire Material
PU
Send Inquiry Full specifications

Specifications

Product nameAnr Active Aviation Headset Substitue for David Clark Headset
CategoryCall Center, Business & Aviation Headsets
CustomizationAvailable
Wire MaterialPU
TypeElectret Earphone
Model NO.PH-100AC
CommunicationWired
FunctionNoise-Canceling
Jack TypeGeneral Aviation
Products ColorGreen/Black/Pink/Red/Yellow/Blue/ White/Gray
FeatureMicrophone, Noise Canceling
Noise Reduction Ratings(Nrr):24dB
Cable LengthStraight Cable 150cm
BoomSpring Tension Boom
Ear PadsGel Ear Pads Optional
Microphone PlugPj-068( .206"F5.2 Phone Plug)
Earphone PlugPj-055( .25"F6.3 Phone Plug)
Warranty12 Months
ItemAnr Active Noise Canceling Aviation Headset
Transport Package1PCS with White Box
SpecificationRoHS/CE
OriginChina
HS Code850780200
Production Capacity10000PCS/Months
Operating Temperature-20 to 70 °C
Frequency Response100Hz to 8 kHz
CordageStraight cord from headset to molded
Sensitivity95+/-5 dB SPL
Intercom Connections Plugfull volume on ear simulator
Impedance150 ohms (300 ohms each; wired in parallel)
Rate Input100mW
Weights530g
Max. Input250mW
Headset size range Height10 to 14 cm
ColorGreen/Black/Pink/Red/Yellow/Blue/ White
Element TypeNoise-canceling electret
Operating Voltage (supplied by aircraft )8-32 Volts DC
Matching Impedance150-1000 ohms
PriceUS$200.00 24-99 Pieces US$170.00 100+ Pieces
SupplierRAYTALK COMMUNICATIONS LTD
Data retrieved2026-10-23

Available options

Wire MaterialPU
Products ColorGreen/Black/Pink/Red/Yellow/Blue/ White/Gray
Cable LengthStraight Cable 150cm
Impedance
150 ohms (300 ohms eachwired in parallel)
Headset size range Height10 to 14 cm
ColorGreen/Black/Pink/Red/Yellow/Blue/ White

Additional data

HeadphoneGeneral
Type: Dynamic (F50)Operating Temperature: -20 to 70 °C
Frequency Response:100Hz to 8 kHzCordage: Straight cord from headset to molded
Sensitivity:95+/-5 dB SPLplug, 150CM
(1 kHz, 1 mW input per earcup side)Intercom Connections Plug:
full volume on ear simulatorEarphone Plug: PJ-055( .25"F6.3 phone plug)
Impedance:150 ohms (300 ohms each; wired in parallel)Microphone Plug:PJ-068( .206"F5.2 phone plug)
Rate Input:100mWWeights: 530g
Max. Input: 250mWHeadset size range Height: 10 to 14 cm
Microphone and Amplifier:Color: Green/Black/Pink/Red/Yellow/Blue/ White
Element Type: Noise-canceling electret/Gray
Frequency Response:100Hz to 5 kHzBoom: Spring tension boom
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity:-33+/-4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms
AC load)

Product description

The supplier lists this product as Electret Earphone. The listed model is PH-100AC. Supplier-stated function: Noise-Canceling. The specifications below reflect the information publicly displayed on the listing. Wire Material: PU. Model NO.: PH-100AC. Noise Reduction Ratings: (Nrr):24dB. Frequency Response: 100Hz to 8 kHz. Sensitivity: 95+/-5 dB SPL. Impedance: 150 ohms (300 ohms each; wired in parallel). Matching Impedance: 150-1000 ohms.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Anr Active Aviation Headset Substitue for David Clark Headset?

The listed minimum order quantity is 24 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Anr Active Aviation Headset Substitue for David Clark Headset cost?

The published price is US$170.00 – 200.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
