Ascsonic 4 Channels ATP10000q 2u Line Array Audio Power Amplifier with Pfc
US$700.001–14 Pieces
US$680.0015+ Pieces
MOQ 1 Pieces
- Type
- Professional Amplifier
- Usage
- KTV, Bar, Disco
- Used For
- Professional
- Tube Type
- Transistor Amplifier
- Function
- Amplifier Combined
- Sound Channel
- 4
Specifications
| Product name | Ascsonic 4 Channels ATP10000q 2u Line Array Audio Power Amplifier with Pfc |
|---|---|
| Category | Speaker Amplifiers & Audio Processors |
| Model NO. | ATP10000Q |
| Used For | Professional |
| Tube Type | Transistor Amplifier |
| Function | Amplifier Combined |
| Sound Channel | 4 |
| Output Number | 4 |
| Voltage | 90V-240V |
| Element Number | Push-Pull Amplifier |
| Conductive Mode | Td |
| 8ω Stereo Power(RMS) | 4X13500W |
| 4ω Stereo Power(RMS) | 4X2100W |
| 2ω Stereo Power(RMS) | 4X2500W |
| Heatsink | 100% Pure Copper |
| Transistors | Onsemi |
| Inputs | Neutrik XLR |
| Outputs | Neutrik |
| Net Weight | 13kg |
| Gross Weight | 18kg |
| Warranty | 2 Years |
| Transport Package | Export Standard Durable Carton Box |
| Specification | 483×88×396mm |
| Origin | China |
| HS Code | 8518400000 |
| Production Capacity | 2000 Pieces/Month |
| Package Size | 18.00cm * 58.00cm * 60.00cm |
| Package Gross Weight | 18.000kg |
| Lead Time | 5 days (1 - 10 Pieces) 15 days (11 - 50 Pieces) To be negotiated ( > 50 Pieces) |
| Customization | Available |
| Type | Professional Amplifier |
| Usage | KTV, Bar, Disco |
| THD+N | 1KHz |
| Applications | 1>Concerts & Live Events |
| The delivery time | it is 8-10 days if by air; it is 45-60 days if by sea. |
| Price | US$700.00 1-14 Pieces US$680.00 15+ Pieces |
| Supplier | Ascsonic Audio Technology Co., Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Voltage | 90V-240V |
|---|---|
| 8ω Stereo Power(RMS) | 4X13500W |
| 4ω Stereo Power(RMS) | 4X2100W |
| 2ω Stereo Power(RMS) | 4X2500W |
Additional data
| ATP100000Q 4 Channels 100000 Watts Auto-volt Audio Live House Power Amplifier | ||
|---|---|---|
| ITEM | ATP10000Q | AT10000Q |
| 8ΩStereo Power(RMS) | 1350WX4 | |
| 4ΩStereo Power(RMS) | 2100WX4 | |
| 2ΩStereo Power(RMS) | 2500WX4 | |
| 8ΩBridged Power(RMS) | 4200WX2 | |
| 4ΩBridged Power(RMS) | 5000WX2 | |
| Frequency Response(+0/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz | |
| THD+N :1KHz | <0.1% | |
| Signal-to-Noise Ratio | >112 dBA | |
| Channel separation (Crosstalk) at 1 kHz | >70 dB | |
| Input Connectors (per channel) | 3-pin XLR,balanced | |
| Output Connectors (per channel) | Binding Posts 2-pole, Speakon | |
| Class | TD | |
| Protection | short circuit, DC voltage, turn-on/off transient, current inrush | |
| Operating voltage | 90V-260V Auto-volt | 130-265V / 65-135V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | |
| Input impedance | 20 Kohms | |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB | |
| Dimensions (W×H×D) | 483×88×396mm | |
| Packing dimension | 580×180×560mm | |
| Net weight(kg) | 13 | |
| Gross weight(kg) | 18 |
Product description
The supplier lists this product as Professional Amplifier. Its stated application is KTV, Bar, Disco. The listed model is ATP10000Q. Supplier-stated function: Amplifier Combined. The specifications below reflect the information publicly displayed on the listing. Model NO.: ATP10000Q. 8ω Stereo Power(RMS): 4X13500W. 4ω Stereo Power(RMS): 4X2100W. 2ω Stereo Power(RMS): 4X2500W.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Ascsonic 4 Channels ATP10000q 2u Line Array Audio Power Amplifier?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Ascsonic 4 Channels ATP10000q 2u Line Array Audio Power Amplifier cost?
The published price is US$680.00 – 700.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
Ascsonic 4 Channels ATP10000q 2u Line Array Audio Power Amplifier with Pfc
ATP10000Q · US$680.00 – 700.00 · MOQ 1 Pieces
ATP10000Q · US$680.00 – 700.00 · MOQ 1 Pieces
Inquiry sent
Related products
All Speaker Amplifiers & Audio Processors →

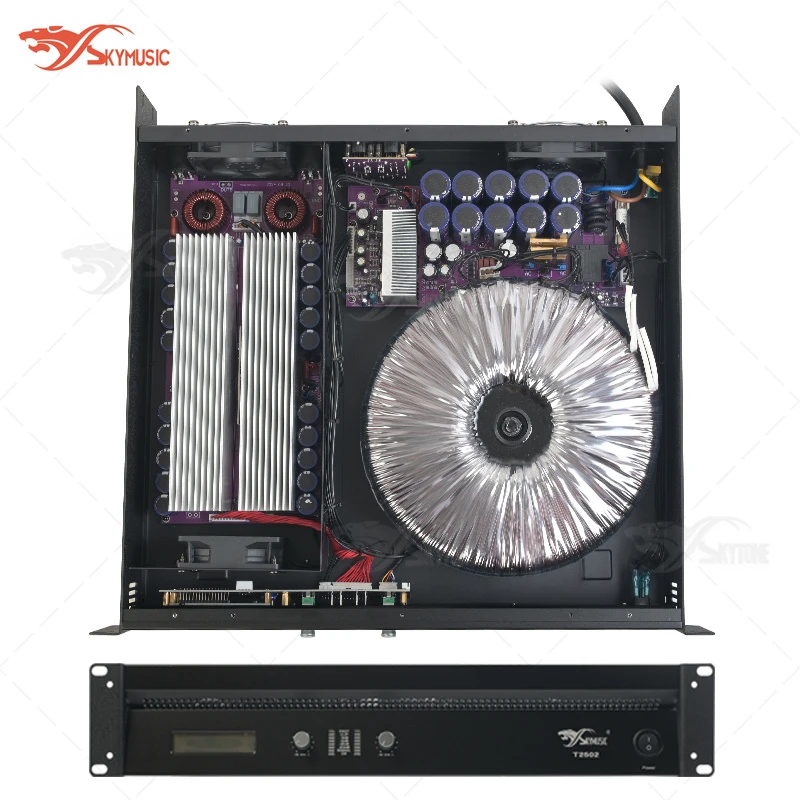

2 Channel 2X2500W Powerful T2502 Power Professional Audio Sound Amplifier, Power AMP
