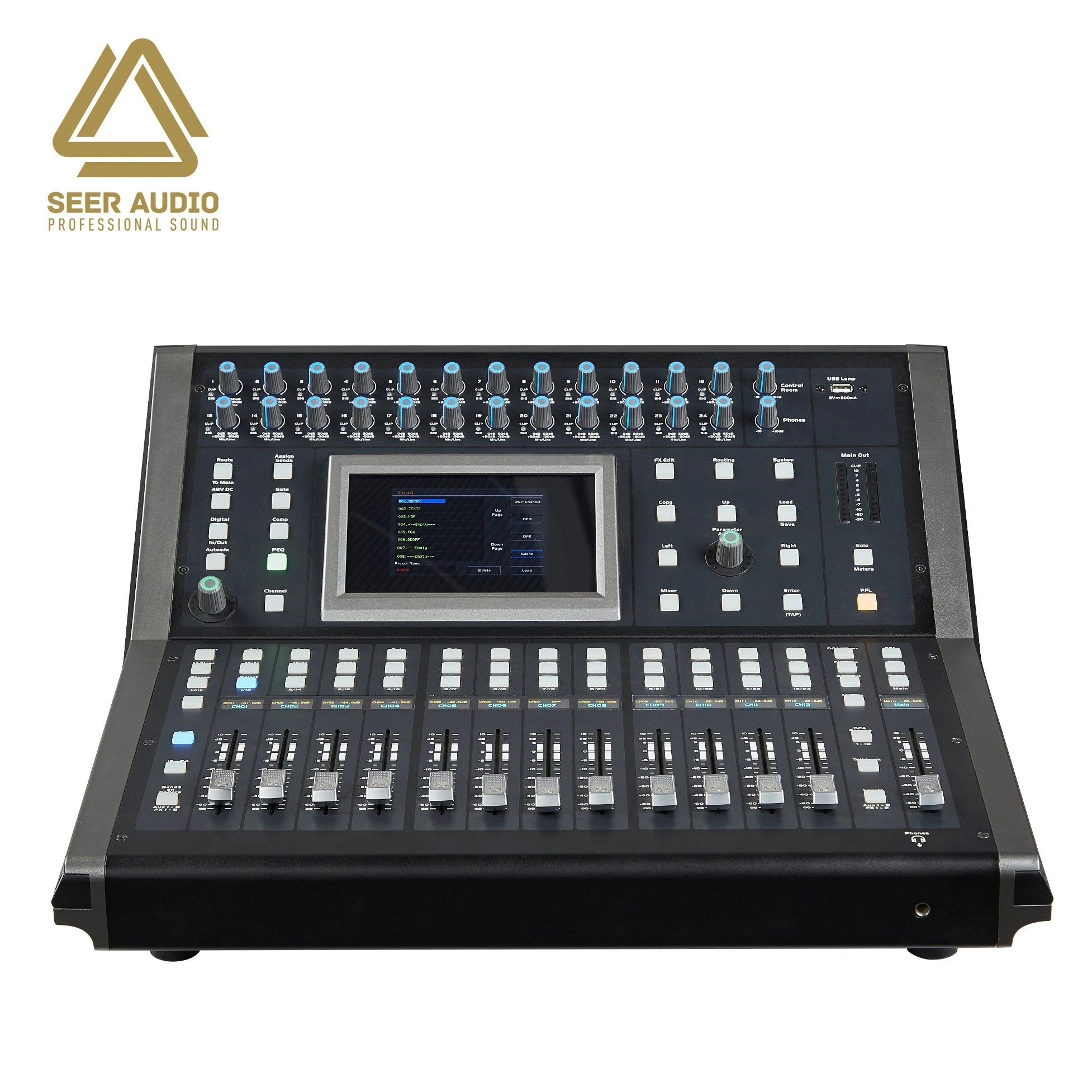

Auto Motorized Fader 24 Mic XLR Inputs Audio Mixer with Touch Screen
Speaker Amplifiers & Audio Processors

Auto Motorized Fader 24 Mic XLR Inputs Audio Mixer with Touch Screen

Model: DB-24DL Customization available Cables, Adapters & Audio Electronics
US$1,318.001–9 Pieces
US$1,278.0010–49 Pieces
US$1,178.0050+ Pieces
MOQ 1 Pieces
Application
Commercial
Noise
<95dB
Hi-Fi
Not Hi-Fi
Activity
Passive
Operation Mode
Wire / Remote Control
Speaker System
Optional Combination
Send Inquiry Full specifications

Specifications

Product nameAuto Motorized Fader 24 Mic XLR Inputs Audio Mixer with Touch Screen
CategorySpeaker Amplifiers & Audio Processors
CustomizationAvailable
Noise<95dB
Hi-FiNot Hi-Fi
Model NO.DB-24DL
ActivityPassive
Operation ModeWire / Remote Control
Speaker SystemOptional Combination
ApplicationCommercial
CertificationCE, RoHS, CCC
MonitorLCD Screen
THD<0.005%
Fader22X100mm Motorized Faders
Channels Input24 Mic, 2 Stereo, 1 Return,Sound Card, /MP3+ Fiber
Mic / Line Input1-24, Balanced XLR Jack
Input Sensitivity (XLR/Trs)-60 +10dB /-50 +20dB
Maximum Input Level (XLR/Trs)+19dB/+29dB
Input Impedance (XLR/Trs)>5K / >10 K
Input Independent DelayMaximum 10ms
Output 15 Segment Full Parameter Equaliz20-20kHz, +/-12dB, Q Value 0.3~15.0
Output Independent DelayMaximum 30ms
Threshold / Ratio-50dbu to 6dbu / 1:1 to Infinity
Gross Weight17kg
Transport Package5 Layers Corrugated Box
Specification76x53x27cm
OriginChina
HS Code8543709990
Production Capacity1000
PriceUS$1,318.00 1-9 Pieces US$1,278.00 10-49 Pieces US$1,178.00 50+ Pieces
SupplierGuangzhou strong sound electronic equipment Co., Ltd
Data retrieved2026-10-23

Available options

Input Impedance (XLR/Trs)
>5K>10 K

Additional data

ModelDB-12DLDB-16DLDB-20DLDB-24DL
channels Input12 channels16 channels20 channels24 channels
8 MIC, 2 stereo12 MIC, 2 stereo, 1 return,16 MIC, 2 stereo24 MIC, 2 stereo, 1 return,
sound card, /MP3+ fibersound card, /MP3+ fiber inputsound card, /MP3+ fiber inputsound card, /MP3+ fiber input
Numbers of motorized fadders9 Motorized fadders (100mm)13 Motorized fadders (100mm)17 Motorized fadders (100mm)22 Motorized fadders (100mm)
Input processingInput gain adjustment (electronic gain), pre amplifier, high and low pass filter,
4 segment parameter equalization, compressor, noise gate, delay, input channel sound balance adjustment
MIC / line Input1-8 balance XLR jack1-12 balance XLR jack1-16 balance XLR jack1-24, balanced XLR jack
Input sensitivity (XLR/TRS)-60 ~ +10db /-50 ~ +20db-60 ~ +10db /-50 ~ +20db-60 ~ +10db /-50 ~ +20db-60 ~ +10db /-50 ~ +20db
Electronic gain-42 ~ +10db, 0.7 steps
Maximum input level (XLR/TRS)+19db/+29db
Input impedance (XLR/TRS)>5k / >10 K
THD+N uniform gain state 0db0.0005%-89db (20 -20KHZ, direct output @0db 1KHZ)
THD+N medium gain +30db0.001-75db (20- 20KHZ, direct output @0db 1KHZ)
Output processinghigh and low pass filter, 15 segment parameter balance, compressor, delay, phase
Output voltage4V MAX
Headphone output7V 220 Euro
Input 4 segment full parameter equalization20-20kHz, +/-12db, Q value 0.3~15.0
Frequency band 1selectable Lshelf, PEQ
Frequency band 2PEQ
Frequency band 3PEQ
Frequency band 4selectable Hshelf, PEQ
Input independent delaymaximum 10ms
Output 15 segment full parameter Equalization20-20kHz, +/-12db, Q value 0.3~15.0
Output independent delaymaximum 30ms
Threshold / ratio-50dBu to 6dBu / 1:1 ~ infinity
Impact / release1ms -127ms / 1ms -127ms
Gain+/-12dB
Motorized faders100mm

Product description

The supplier lists this product. Its stated application is Commercial. The listed model is DB-24DL. The specifications below reflect the information publicly displayed on the listing. Noise: 5K / >10 K.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Auto Motorized Fader 24 Mic XLR Inputs Audio Mixer with Touch Screen?

The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Auto Motorized Fader 24 Mic XLR Inputs Audio Mixer with Touch Screen cost?

The published price is US$1,178.00 – 1,318.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
