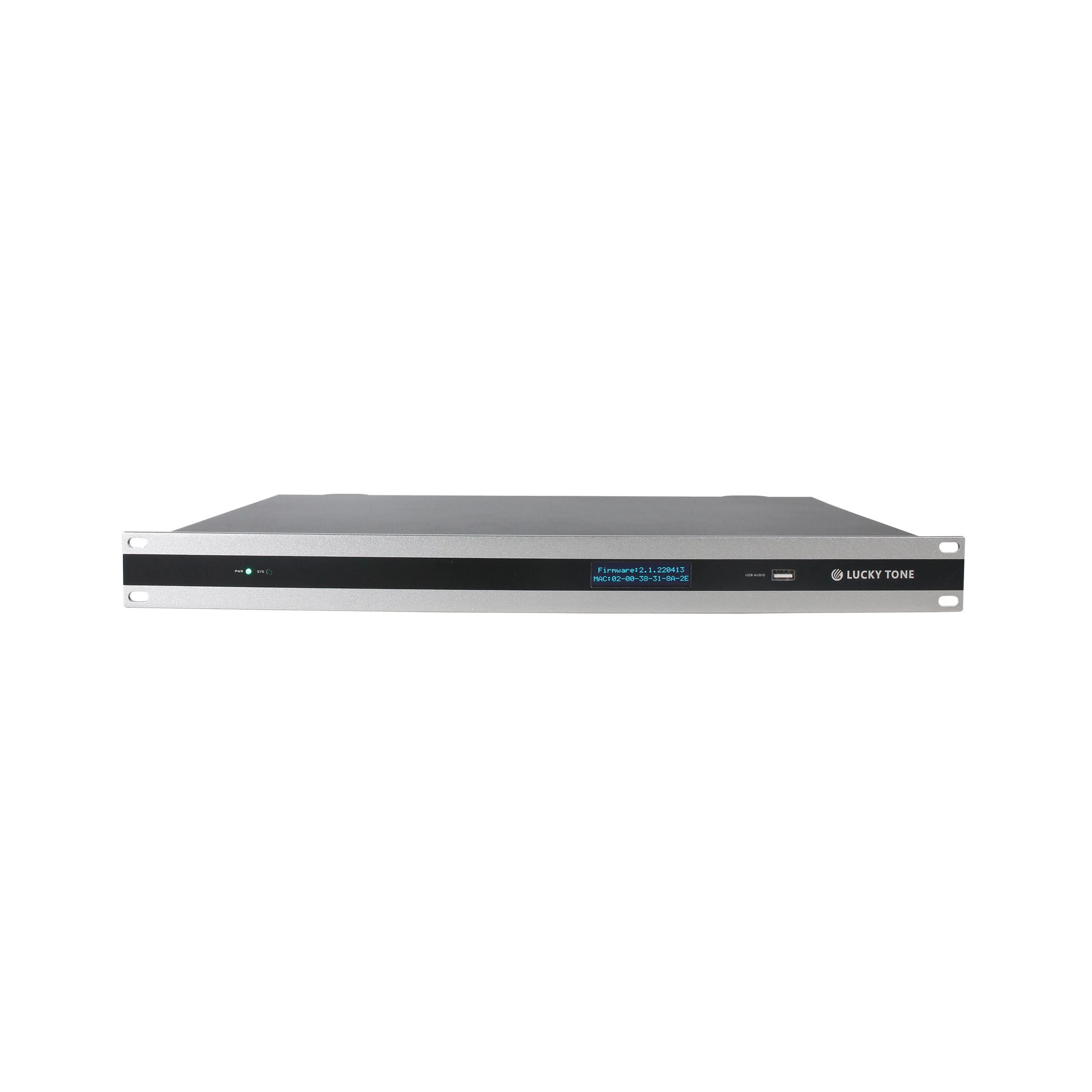

Built-in Industry-Leading Chip 8 in 8 out DSP Audio Processor with Full-Featured Matrix Mixing
- Frequency Response
- 20~20kHz
- Application
- Commercial, Home
- Noise
- <95dB
- Speaker Material
- Metal
- THD
- <0.005%
- Input Channel
- 8
Specifications
| Product name | Built-in Industry-Leading Chip 8 in 8 out DSP Audio Processor with Full-Featured Matrix Mixing |
|---|---|
| Category | Speaker Amplifiers & Audio Processors |
| Customization | Available |
| Noise | <95dB |
| Speaker Material | Metal |
| Model NO. | DSP-880N2+ |
| Application | Commercial, Home |
| THD | <0.005% |
| Input Channel | 8 |
| Frequency Response | 20~20kHz |
| Maximum Level | +24dbu |
| Phantom Power | +48V |
| Dynamic Range (Analog Channel) | 113dB |
| Power Supply | AC110~240V,50Hz/60Hz |
| Dimension | 482 X 260 X 45mm |
| Weight | 3kg |
| Transport Package | Gift Box/ Export Carton/ Pallet |
| Specification | 482 x 260 x 45mm |
| Origin | China |
| HS Code | 8543709200 |
| Production Capacity | 500000PCS Per Year |
| Package Size | 90.00cm * 110.00cm * 90.00cm |
| Package Gross Weight | 6.000kg |
| Frequency divider | 5, 8, 12 segment PEQ (optional); Delayer; Limiter |
| Price | US$420.00 1-9 Pieces US$390.00 10+ Pieces |
| Supplier | Guangzhou Temeisheng Audio Technic Co Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Metal |
|---|---|
| Phantom Power | +48V |
| Power Supply |
Additional data
| MODEL | DSP-880N2+ |
|---|---|
| Input Channels(analog) | 8 |
| Output Channels(analog) | 8 |
| Input | 5/ 8/ 12 section PEQ (optional), AFC/AEC/ANS/AGC/Auto Mixer |
| Output | Frequency divider: 5, 8, 12 segment PEQ (optional); Delayer; Limiter |
| Input gain | 0/10/20/30/40/43 dB |
| THD+N | 0.003% @4dBu |
| Frequency response | 20~20kHz ± 0.2dB |
| Maximum level | +24dBu |
| Phantom power | +48V |
| Dynamic range (analog channel) | 113dB |
| Self-Noise (A-Weighting-analog ) | -89dBu |
| Common mode rejection ratio @60Hz | 80dB |
| Channel isolation @1kHz | 108dB |
| Input impedance (balanced connection) | 9.4K Ω |
| Output impedance (balanced connection) | 102 Ω |
| System delay | <3ms |
| Power supply | AC110~240V,50Hz/60Hz |
| Dimension | 482 x 260 x 45mm |
| Weight | 3kg |
Product description
The supplier lists this product. Its stated application is Commercial, Home. The listed model is DSP-880N2+. The specifications below reflect the information publicly displayed on the listing. Noise: <95dB. Speaker Material: Metal. Model NO.: DSP-880N2+. Frequency Response: 20~20kHz. Phantom Power: +48V. Power Supply: AC110~240V,50Hz/60Hz. Frequency divider: 5, 8, 12 segment PEQ (optional); Delayer; Limiter.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Built-in Industry-Leading Chip 8 in 8 out DSP Audio Processor with?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Built-in Industry-Leading Chip 8 in 8 out DSP Audio Processor with cost?
The published price is US$390.00 – 420.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
DSP-880N2+ · US$390.00 – 420.00 · MOQ 1 Pieces
