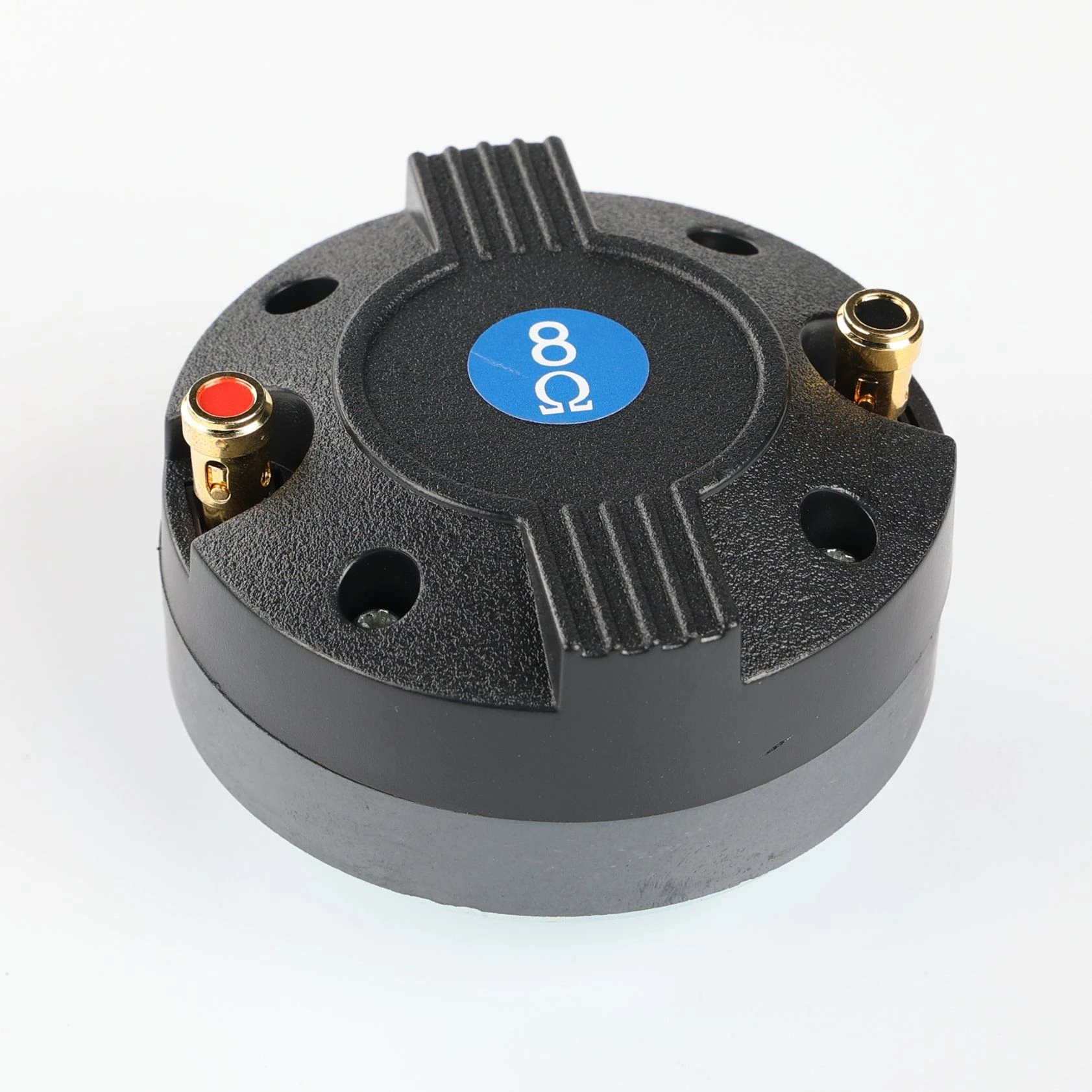

Compression Driver Unit Speaker Horn Tweeter (HT-20)
Speaker Drivers, Woofers & Tweeters

Compression Driver Unit Speaker Horn Tweeter (HT-20)

Model: HT-20 Customization available Speaker Parts & Accessories
US$4.50200–499 Pieces
US$4.20500+ Pieces
MOQ 200 Pieces
Material
Aluminum
Type
Speaker
Speaker Design
Tweeter
Shape
Basin-shaped
Sound Frequency
High Pitch
Voltage
24V
Send Inquiry Full specifications

Specifications

Product nameCompression Driver Unit Speaker Horn Tweeter (HT-20)
CategorySpeaker Drivers, Woofers & Tweeters
CustomizationAvailable
TypeSpeaker
Speaker DesignTweeter
Model NO.HT-20
ShapeBasin-shaped
MaterialAluminum
Sound FrequencyHigh Pitch
Voltage24V
Connection ModeDouble Wire
Contact PointWithout Contact Point
Energy Exchanging MechanismElectrical
Nominal Impedance8 Ohm
Voice Coil Diameter1.35" (34.4mm)
Transport PackageStrengthen The Carton Packaging +Color Box Packing
SpecificationCE
OriginNingbo
HS Code851829000
Production Capacity1000PCS/Week
SpecificationsModel No.
Mounting TypeBolt-on
Power Capacity20Watts
Sensitivity(1W/1M)103dB
Frequency Range3500-20000Hz
Diaphragm MaterialComposite Polyester/Titanium
Magnet90X45X15,Y30
Pcs/CTN16PCS
PriceUS$4.50 200-499 Pieces US$4.20 500+ Pieces
SupplierNingbo Yinzhou Join Industry Co., Ltd.
Data retrieved2026-10-23

Available options

MaterialAluminum
Voltage24V
Voice Coil Diameter1.35" (34.4mm)
Nominal Impedance8 Ohm
Power Capacity20Watts
Diaphragm MaterialComposite Polyester/Titanium

Additional data

Model No.HT-20
Mounting Type:Bolt-on
Nominal Impedance:8 Ohm
Power Capacity:20Watts
Sensitivity(1W/1M):103dB
Frequency Range:3500-20000Hz
Diaphragm Material:Composite Polyester/Titanium
Voice Coil Diameter1.35" (34.4mm)
Voice Coil MaterialPure Aluminum Ribbon Wire
Magnet:90X45X15,Y30
Pcs/CTN:16PCS

Product description

The supplier lists this product as Speaker. The listed model is HT-20. The specifications below reflect the information publicly displayed on the listing. Model NO.: HT-20. Material: Aluminum. Sound Frequency: High Pitch. Nominal Impedance: 8 Ohm. Power Capacity: 20Watts. Sensitivity(1W/1M): 103dB. Frequency Range: 3500-20000Hz. Diaphragm Material: Composite Polyester/Titanium.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Compression Driver Unit Speaker Horn Tweeter (HT-20)?

The listed minimum order quantity is 200 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Compression Driver Unit Speaker Horn Tweeter (HT-20) cost?

The published price is US$4.20 – 4.50 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
