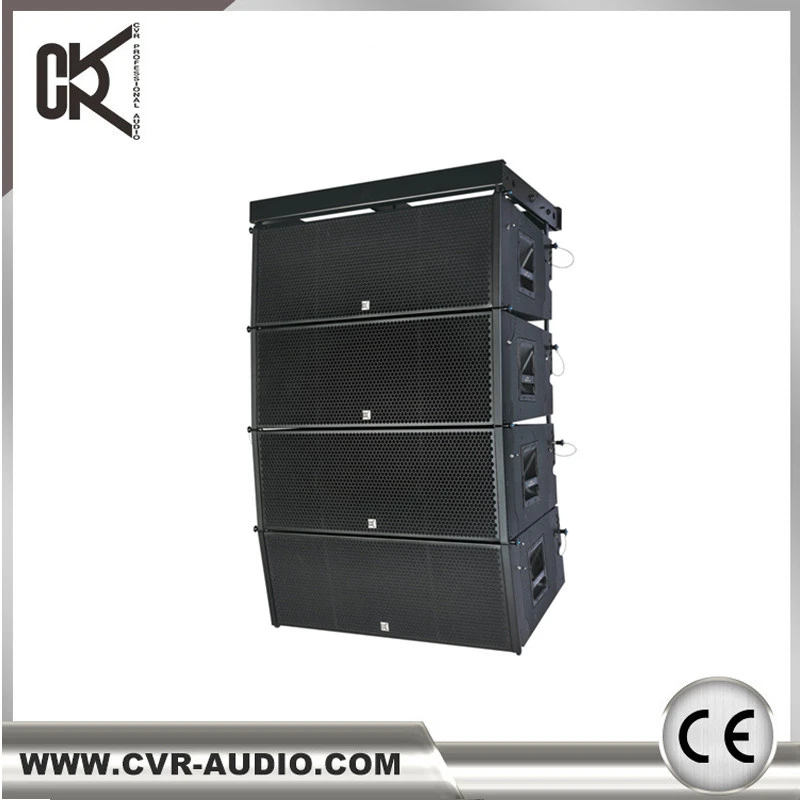

Headphones, speakers & audio parts from manufacturers — quotations on request loginxiao@gmail.com Contact
Concert Music Production Live Events Sound Equipment Line Array Speaker
PA, Stage & Line-Array Speakers

Concert Music Production Live Events Sound Equipment Line Array Speaker

Model: W-8B Customization available Speakers & Audio Systems
Price on request
MOQ 2 Pieces
Type
Passive, Three Way Line Array
Application
Commercial
Certification
CE, RoHS, CCC, FCC, ETL, MET
High Output
Stadium Sound System
Size
12' X2 Three Way
Cabinet
Birch Plyood Cabinet
Send Inquiry Full specifications

Specifications

Product nameConcert Music Production Live Events Sound Equipment Line Array Speaker
CategoryPA, Stage & Line-Array Speakers
CustomizationAvailable
ApplicationCommercial
CertificationCE, RoHS, CCC, FCC, ETL, MET
Model NO.W-8B
High OutputStadium Sound System
Size12' X2 Three Way
TypePassive, Three Way Line Array
CabinetBirch Plyood Cabinet
ComponentNeodymium Drivers
WarrantyTwo Years Free Warranty
LogoClient's Logo Accepted
Transport PackageGood Quality Carton Box or Flightcase
SpecificationCE
OriginChina
HS Code85182100
Production Capacity10000 Pieces Per Month
PriceNegotiable 2 Pieces(MOQ)
SupplierCVR PRO AUDIO CO.,LTD
Data retrieved2026-10-23

Available options

Size12' X2 Three Way

Additional data

ModelW-9B
TypeThree-way line array system
Frequency Response60Hz-18KHz±3dB
Power handlingLF 1200W(RMS)4800W(PEAK)
MF 500W(RMS)2000W(PEAK)
HF 200W(RMS)800W(PEAK)
SensitivityLF 106dB(1W@1M)
MF 107dB(1W@1M)
HF 109dB(1W@1M)
Max SPLLF 132dB(PEAK)
MF 133dB(PEAK)
HF 135dB(PEAK)
DriversLF 2×12"(310mm) neodymium woofer 75mm(3in)coil
MF 2×8"(210mm) neodymium woofer 50mm(2in)coil
HF 2×3" neodymium compression driver with 75mm titanium diaphragm
Nominal impedanceLF 8 ohm
MF 8 ohm
HF 16 ohm
Coverage110°H×7°V
ConnectionsLF 1(+)1(-) LF 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Connectors2×Neutrik NL8
FinishTextured high-density polyurethane coating
Enclosure MaterialBirch Plywood
CrossoverLF 60Hz-250Hz MF 250Hz-1.5KHz HF 1.5KHz-20KHz
Dimensions932×360×584mm(W×H×D)
Packing Dimensions995×425×645mm(W×H×D)0.27cbm
Net weight64kg
Gross weight68kg

Product description

The supplier lists this product as Passive, Three Way Line Array. Its stated application is Commercial. The listed model is W-8B. The specifications below reflect the information publicly displayed on the listing. Model NO.: W-8B.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Concert Music Production Live Events Sound Equipment Line Array?

The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Concert Music Production Live Events Sound Equipment Line Array cost?

The price is not publicly listed. Send an inquiry with your quantity and requirements to receive a quotation.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
