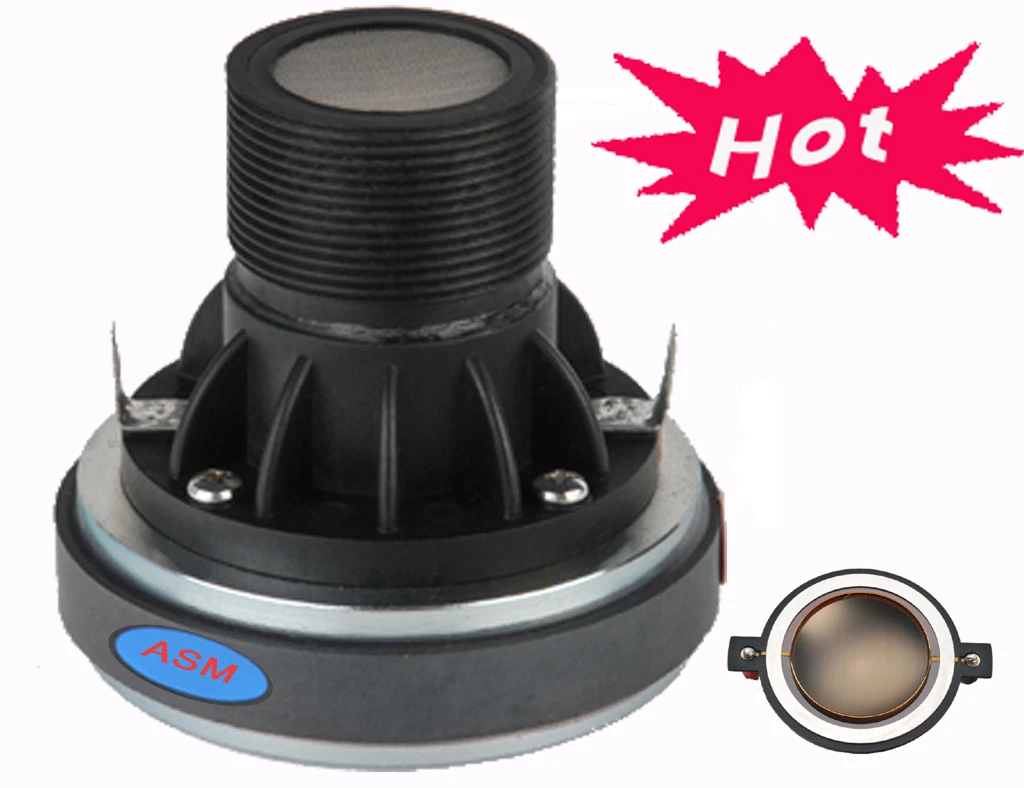

De-13p Car Speaker Audio Driver
- Power
- Larger Power
- Material
- Aluminum
- Type
- Speaker
- Color
- Black
- Speaker Design
- Tweeter
- Shape
- Spiral
Specifications
| Product name | De-13p Car Speaker Audio Driver |
|---|---|
| Category | Car Speakers & Subwoofers |
| Model NO. | DE-13P |
| Type | Speaker |
| Speaker Design | Tweeter |
| Shape | Spiral |
| Material | Aluminum |
| Voltage | 12V |
| Current | 3A |
| Power | Larger Power |
| Color | Black |
| Brand | Asm |
| Basket Material | Iron |
| Transport Package | White Foram Package |
| Specification | CE |
| Origin | China, Zhejiang |
| HS Code | 315000 |
| Production Capacity | 6500PCS/Month |
| Customization | Available |
| After-sales Service | Asm |
| Warranty | One Year |
| Who we are | Ningbo ASM manufacturing, has become one of the largest company specialized in Sub- woofer, Car speaker, ceiling speaker, boom box, Professional sound. Manufacture in China. |
| The reason to work with Ningbo ASM manufacturing | 1) Focus on every detail |
| You can see us at 3 Tradeshows we will attend | NAMM IN January |
| Model No | DE-12P |
| Throat Diameter | 1 in (25mm) |
| Mounting Type | Screw on |
| Nominal Impedance | 8 Ohm |
| Power Capacity | 30Watts RMS |
| Sensitivity(1W/1M) | 106dB |
| Frequency Range | 1.5KHz-20KHz |
| Diaphragm Material | Titanium |
| Flux Density | 1.45T |
| Magnet | Strontium Ferrite |
| Overall DiameterxDepth | 80mm(3.15in) |
| Net Weight | 0.83 Kgs |
| Price | Negotiable 800 Pieces (MOQ) |
| Supplier | Ningbo ASM Electronics Technology Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Material | Aluminum |
|---|---|
| Voltage | 12V |
| Power | Larger Power |
| Color | Black |
| Basket Material | Iron |
| Throat Diameter | 1 in (25mm) |
Additional data
| Model No: | DE-12P | DE-13P | DE-14P | DE-15P | DE-16P |
|---|---|---|---|---|---|
| Throat Diameter: | 1 in (25mm) | 1 in (25mm) | 1 in (25mm) | 1 in (25mm) | 1 in (25mm) |
| Mounting Type: | Screw on 13/8" or Bolt-on | Screw on 1 3/8" or Bolt-on | Screw on 1 3/8" or Bolt-on | Screw on 13/8" or Bolt-on | Screw on 1 3/8" or Bolt-on |
| Nominal Impedance: | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm | 8 Ohm |
| Power Capacity: | 30Watts RMS | 40Watts RMS | 60Watts RMS | 100Watts RMS | 120Watts RMS |
| Sensitivity(1W/1M): | 106dB | 107dB | 108dB | 109dB | 110dB |
| Frequency Range: | 1.5KHz-20KHz | 1.2KHz-20KHz | 1.2KHz-20KHz | 1.0KHz-20KHz | 500Hz-20KHz |
| Diaphragm Material: | Titanium | Titanium | Titanium | Titanium | Titanium |
| Voice Coil Diameter | 1.1in(28mm) | 1.35 in(34.4mm) | 1.75 in(44.4mm) | 2.03 in(51.6mm) | 2.84 in(72.2mm) |
| Voice Coil Material | Round& Ribbon Aluminum Wire | Round& Ribbon Aluminum Wire | Round& Ribbon Aluminum Wire | Round& Ribbon Aluminum Wire | Round& Ribbon Aluminum Wire |
| Flux Density: | 1.45T | 1.5T | 1.6T | 1.75T | 1.9T |
| Magnet: | Strontium Ferrite | StrontiumFerrite | Strontium Ferrite | Strontium Ferrite | Strontium Ferrite |
| Overall DiameterxDepth: | 80mm(3.15in) x63mm(2.48in) | 90mm(3.54in) x62.5mm(2.46in) | 115mm(4.53in) x67.5mm(2.66in) | 134mm(5.28in) x79.5mm(3.13in) | 170mm(6.7in) x72.5mm(2.85in) |
| Net Weight: | 0.83 Kgs | 0.95 Kgs | 1.58 Kgs | 2.83 Kgs | 5.36 Kgs |
Product description
The supplier lists this product as Speaker. The listed model is DE-13P. The specifications below reflect the information publicly displayed on the listing. Model NO.: DE-13P. Material: Aluminum. Power: Larger Power. Basket Material: Iron. Model No: DE-12P. Nominal Impedance: 8 Ohm. Power Capacity: 30Watts RMS. Sensitivity(1W/1M): 106dB. Frequency Range: 1.5KHz-20KHz. Diaphragm Material: Titanium.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for De-13p Car Speaker Audio Driver?
The listed minimum order quantity is 800 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does De-13p Car Speaker Audio Driver cost?
The price is not publicly listed. Send an inquiry with your quantity and requirements to receive a quotation.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
DE-13P · Price on request · MOQ 800 Pieces
