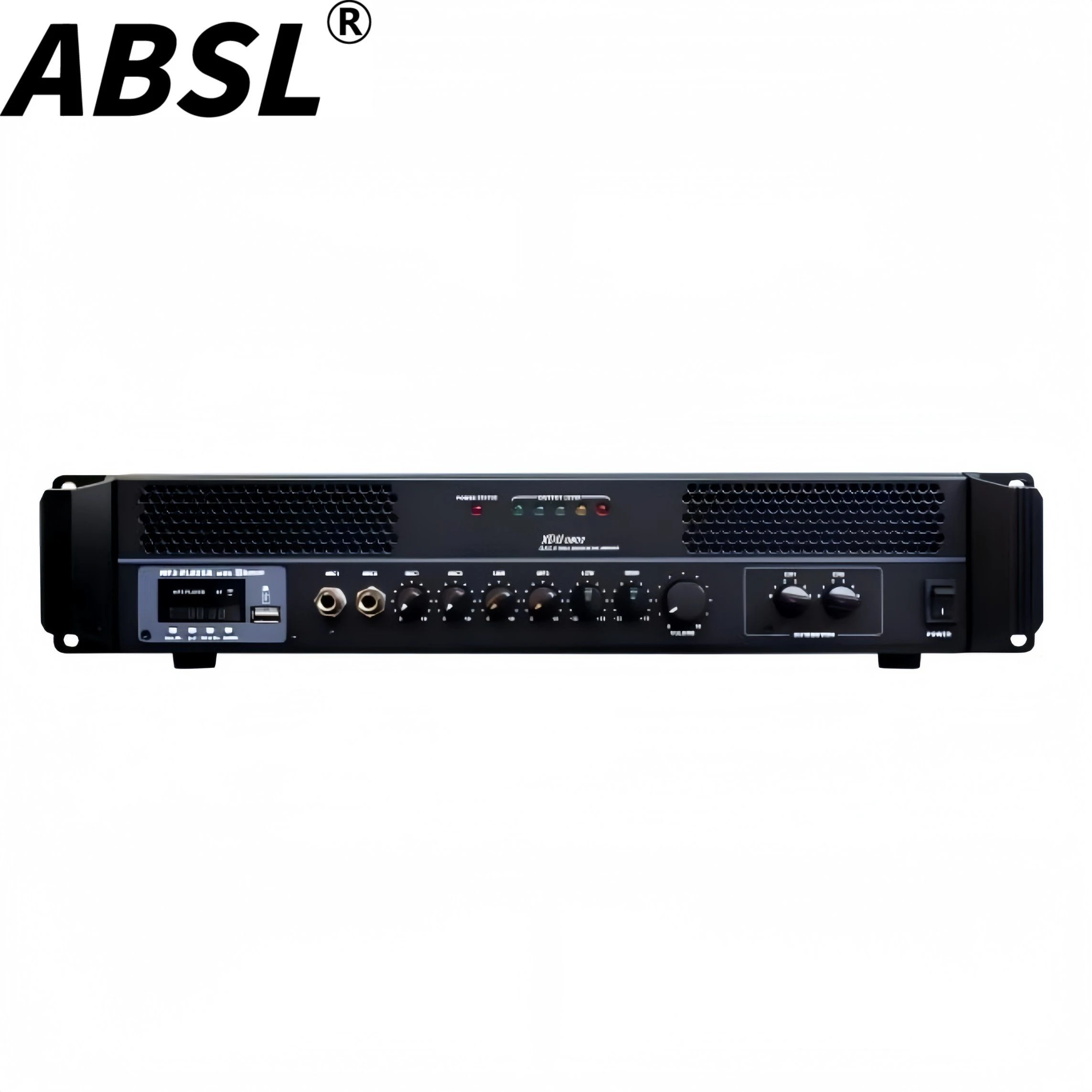

80W 2 Zones Digital PA Switching Audio Power Amplifier with Factory Price
US$1.00 – 99.00
MOQ 100 Pieces
Speaker Amplifiers & Audio Processors
Dual Power Redundancy Open Architecture 64 in 64 out DSP Audio Processor with Afc, Aec, Ans, Ducker, RS 232 and Camera Control
US$2,697.001–9 Pieces
US$2,593.0010+ Pieces
MOQ 1 Pieces
- Frequency Response
- 20Hz~20kHz
- Application
- Commercial, Home
- THD
- <0.005%
- Network Channel
- 64*64
- Audio I/O Capability
- 8 Audio I/O Card Slots
- Dynamic Range
- >118dB
Specifications
| Product name | Dual Power Redundancy Open Architecture 64 in 64 out DSP Audio Processor with Afc, Aec, Ans, Ducker, RS 232 and Camera Control |
|---|---|
| Category | Speaker Amplifiers & Audio Processors |
| Model NO. | DSP-6464 LD+ |
| Application | Commercial, Home |
| THD | <0.005% |
| Network Channel | 64*64 |
| Audio I/O Capability | 8 Audio I/O Card Slots |
| Dynamic Range | >118dB |
| Frequency Response | 20Hz~20kHz |
| Voltage | 220VAC-240VAC, 50Hz/24VDC |
| Dimension | 483X88X364mm |
| Weight | 10kg |
| Transport Package | Gift Box/ Export Carton/ Pallet |
| Specification | 483x88x364mm |
| Origin | China |
| HS Code | 8543709200 |
| Production Capacity | 500000PCS Per Year |
| Package Size | 90.00cm * 90.00cm * 100.00cm |
| Package Gross Weight | 5.000kg |
| Customization | Available |
| Noise | <95dB |
| Speaker Material | Metal |
| Price | US$2,697.00 1-9 Pieces US$2,593.00 10+ Pieces |
| Supplier | Guangzhou Temeisheng Audio Technic Co Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Voltage | |
|---|---|
| Speaker Material | Metal |
Additional data
| MODEL | DSP-6464 LD+ |
|---|---|
| Network channel | 64*64 |
| Audio I/O capability | 8 audio I/O card slots |
| Multitrack player capability | 16 tracks |
| Media storage capacity | 64G |
| Dynamic range | >118dB |
| Frequency Response (±0.2dB) | 20Hz~20kHz |
| Input Impedance | 5.5k ohm |
| THD+N | <0.002% |
| Maximum input level | +22dBu |
| RS232/485 | 6Pin3.81mm Phoenix |
| GPIO | 12Pin381mm Phoenix |
| Dante Primary | RJ45 1000Mbps |
| Dante Secondary | RJ45 1000Mbps |
| AC Main Power | IEC Connector |
| DC backup power supply | 24VDC 2A 2pin 5.81mmm Phoenix |
| Voltage | 220VAC-240VAC, 50Hz/24VDC |
| Current | 4A max@100VAC (actual current depends on specific configuration, such as I/O card |
| Product size (WxHxD) | 483x88x364mm |
| Shipping Package Dimensions | 618x153x473mm |
| Shipping weight | 10KG |
Product description
The supplier lists this product. Its stated application is Commercial, Home. The listed model is DSP-6464 LD+. The specifications below reflect the information publicly displayed on the listing. Model NO.: DSP-6464 LD+. Frequency Response: 20Hz~20kHz. Noise: <95dB. Speaker Material: Metal.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Dual Power Redundancy Open Architecture 64 in 64 out DSP Audio?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Dual Power Redundancy Open Architecture 64 in 64 out DSP Audio cost?
The published price is US$2,593.00 – 2,697.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
Dual Power Redundancy Open Architecture 64 in 64 out DSP Audio Processor with Afc, Aec, Ans, Ducker, RS 232 and Camera Control
DSP-6464 LD+ · US$2,593.00 – 2,697.00 · MOQ 1 Pieces
DSP-6464 LD+ · US$2,593.00 – 2,697.00 · MOQ 1 Pieces
Inquiry sent
Related products
All Speaker Amplifiers & Audio Processors →

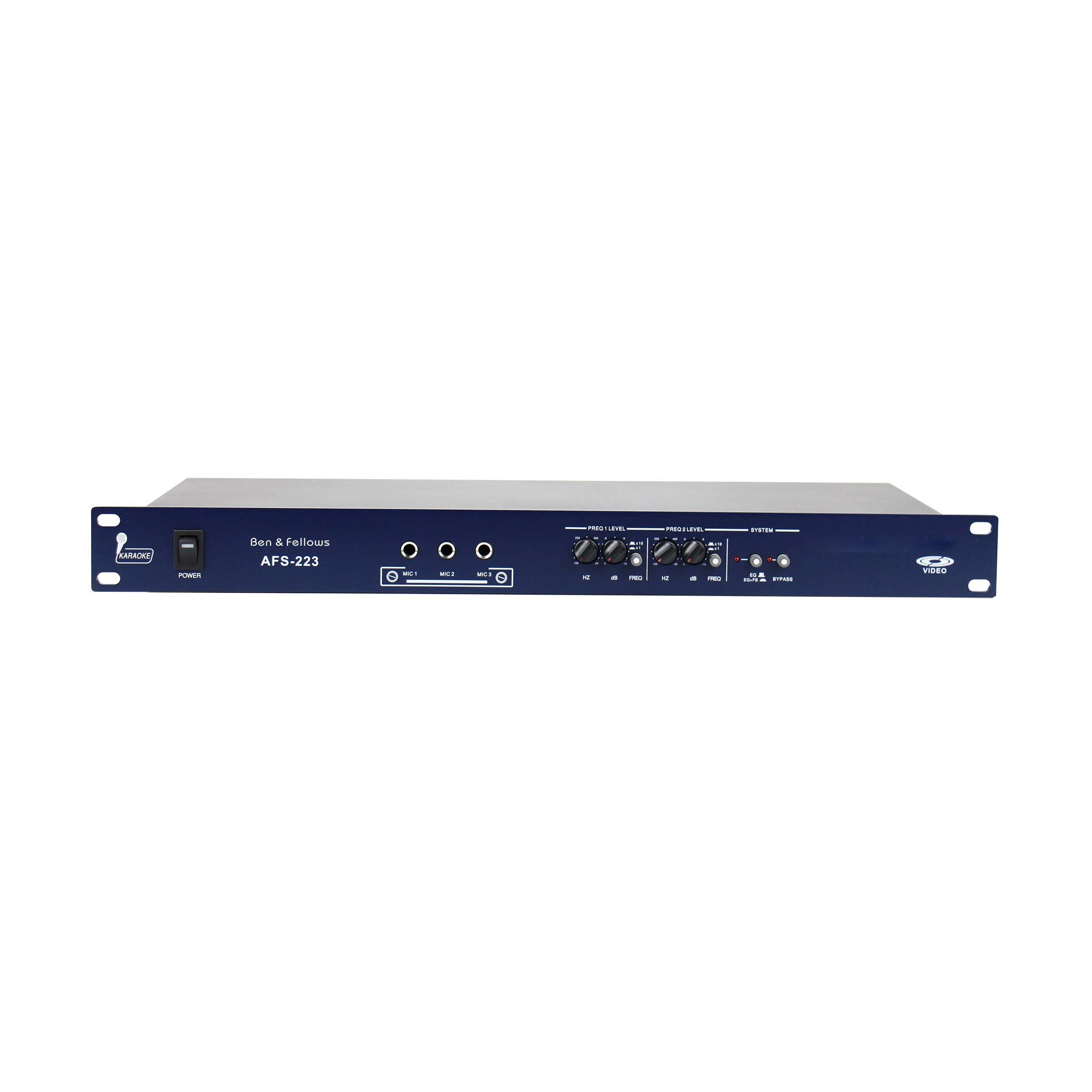

Professional Audio Dual 2 Channel Advanced Feedback Suppressor, Crossover and Sound Processor for PA System
US$43.80 – 68.30
MOQ 1 Piece
Dp20000q 4 Channels 20000 Watts Class D 90V-260V Stereo Audio Power Amplifier with Pfc
US$795.00 – 820.00
MOQ 1 Pieces
Ascsonic 4CH 1350W DSP10kq-Pfc Audio Power Amplifier for Line Array System
US$755.00 – 775.00
MOQ 1 Pieces

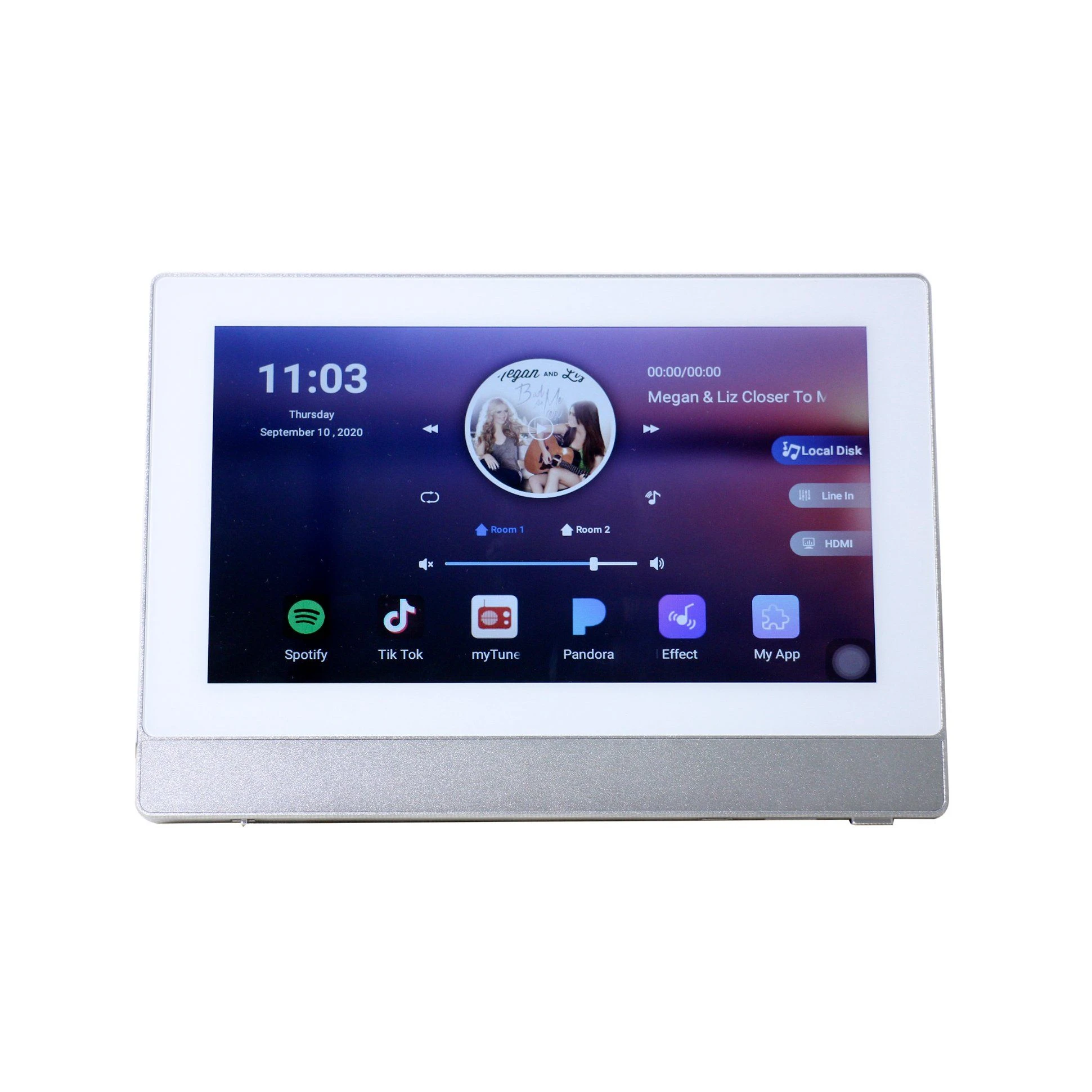

Android Wall Amplifier 7 Inch Touch Screen 8 Channels Equipped with Bluetooth, USB / TF, FM Radio for Home Audio System
