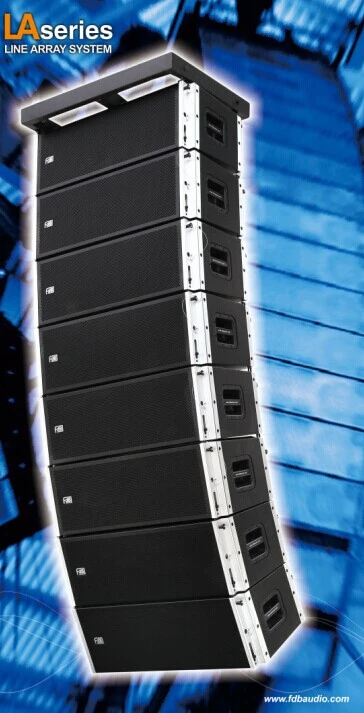

Duel 10″ Passive Line Array Speaker
- Rated Power
- 500W RMS, 2000W Peak
- Impedance
- 8 Ohms Nominal
- Sensitivity
- 101db 1 Watt/1 Meter
- Frequency Response(-3db)
- 55Hz-18kHz
- Woofer
- 2X10"(250mm)/3" Voice Coil Woofer
- Driver
- 2X1"(25mm)/1.7" Voice Coil Tweeter
Specifications
| Product name | Duel 10″ Passive Line Array Speaker |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Model NO. | LA210 |
| Frequency Response(-3db) | 55Hz-18kHz |
| Woofer | 2X10"(250mm)/3" Voice Coil Woofer |
| Driver | 2X1"(25mm)/1.7" Voice Coil Tweeter |
| Rated Power | 500W RMS, 2000W Peak |
| Sensitivity | 101db 1 Watt/1 Meter |
| Impedance | 8 Ohms Nominal |
| Maximum Spl | 128db Continuous, 134db Peak |
| Dispersion(-6db) | Horizontal Coverage 100° |
| Crossover Frequencies | 800Hz, 2.1kHz Passive |
| Transport Package | Carton Box |
| Specification | 560x415x1070mm |
| Origin | Dongguan, China |
| HS Code | 8518220000 |
| Production Capacity | 5000PCS/Month |
| Customization | Available |
| Activity | Passive |
| Certification | CE, RoHS, ISO9001:2008 |
| Applications | 1.Multi-purpose Halls |
| Factory Introduction | FDB Audio Manufacture Co., Ltd is specialized in researching, developing and manufacturing in PRO audio products. The main products are professional transducers(HF driver & woofer), speaker cabinets and electronic products like amplifiers and processors. |
| Direct | 0086-(0)769-89820683 |
| Fax | 0086-(0)769-22781297 |
| Web | fdbaudiochina.en.made-in-china.com |
| Horizontal coverage | 100° |
| Vertical coverage | Varies,depending on array length and configuration |
| Price | US$1.00-3,000.00 1 Piece (MOQ) |
| Supplier | DONGGUAN FDB AUDIO MANUFACTURE CO .,LTD |
| Data retrieved | 2026-10-23 |
Available options
| Rated Power | |
|---|---|
| Impedance | 8 Ohms Nominal |
Additional data
| FREQUENCY RESPONSE(-3dB) | 55Hz-18kHz |
|---|---|
| DRIVERS | 2×10"(250mm)/3"voice coil LF |
| 2×1"(25mm)/1.7"voice coil HF | |
| RATED POWER | 500W RMS,2000W peak |
| SENSITIVITY | 101dB 1watt/1 meter |
| MAXIMUM SPL | 128 dB continuous,134 dB peak |
| IMPEDANCE | 8 ohms nominal |
| DISPERSION(-6dB) | Horizontal coverage:100° |
| Vertical coverage:Varies,depending on array length and configuration | |
| CROSSOVER FREQUENCIES | 800Hz, 2.1kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKING SIZE | 1030mm×535mm×880mm(Flight case/Pair) |
| 560mm×415mm×1070mm | |
| NET WEIGHT | 45 kg/pc |
| GROSS WEIGHT | 127 kg/(Flight case/Pair) |
| 48 kg/pc(Carton/pc) |
Product description
The supplier lists this product. The listed model is LA210. The specifications below reflect the information publicly displayed on the listing. Model NO.: LA210. Frequency Response(-3db): 55Hz-18kHz. Driver: 2X1"(25mm)/1.7" Voice Coil Tweeter. Rated Power: 500W RMS, 2000W Peak. Sensitivity: 101db 1 Watt/1 Meter. Impedance: 8 Ohms Nominal.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
