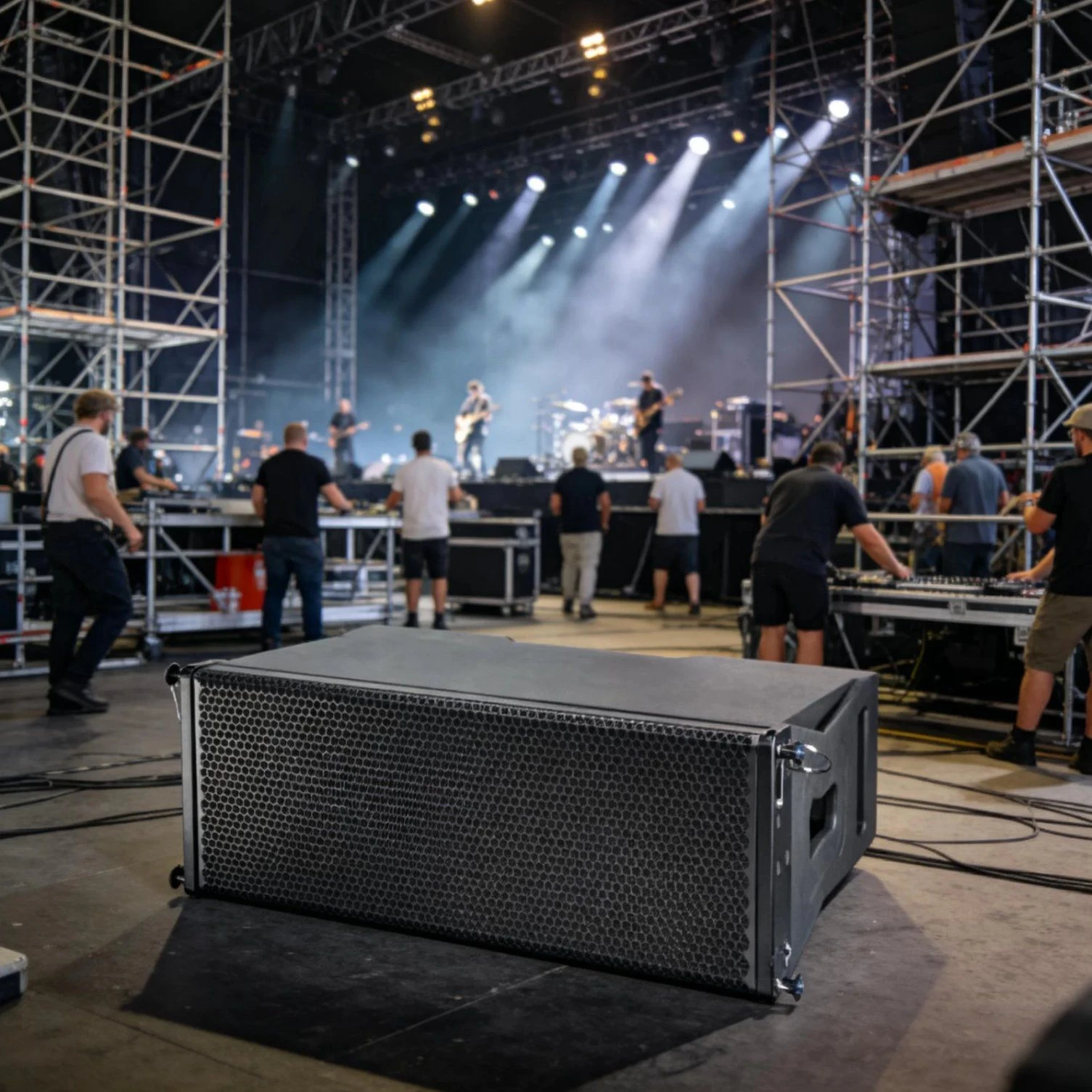

High-Output Symmetric Wavefront Three-Way Touring Grade Line Array Sound System for Professional Audio Applications with Long-Throw High Power Spl Precision
US$1,499.001–9 Pieces
US$1,449.0010+ Pieces
MOQ 1 Pieces
- Sensitivity
- 105db (Passive Mode); Hf 113db, Mf 106db, Lf 105db
- Application
- Commercial, Home
- Noise
- ≥105dB
- Hi-Fi
- Not Hi-Fi
- Activity
- Passive
- Operation Mode
- Wire / Remote Control
Specifications
| Product name | High-Output Symmetric Wavefront Three-Way Touring Grade Line Array Sound System for Professional Audio Applications with Long-Throw High Power Spl Precision |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Customization | Available |
| Noise | ≥105dB |
| Hi-Fi | Not Hi-Fi |
| Model NO. | XR312 |
| Activity | Passive |
| Operation Mode | Wire / Remote Control |
| Speaker System | Optional Combination |
| Speaker Material | Wood |
| Application | Commercial, Home |
| Certification | CE, RoHS, CCC, FCC |
| Monitor | No Display |
| THD | <0.005% |
| Maximum Sound Pressure Level | 134db Peak |
| Sensitivity | 105db (Passive Mode); Hf 113db, Mf 106db, Lf 105db |
| Dispersion Angle | 120°×15°(H×V) |
| Net Weight | 71kg |
| Transport Package | Flight Case or Cardboard Box Packaging |
| Specification | 1086mm×560mm×382mm |
| Origin | Made in China |
| HS Code | 8518210000 |
| Production Capacity | 10000pieces/Month |
| Package Size | 111.50cm * 59.00cm * 41.00cm |
| Package Gross Weight | 74.000kg |
| Lead Time | 15 days (1 - 1 Pieces) To be negotiated ( > 1 Pieces) |
| HF | 150W AES, 600W peak (bi-amp mode) |
| MF | 320W AES, 1280W peak (bi-amp mode) |
| LF | 900W AES, 3600W peak (bi-amp mode) |
| Price | US$1,499.00 1-9 Pieces US$1,449.00 10+ Pieces |
| Supplier | Weifang Domc Audio Co., Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Wood |
|---|
Additional data
| product name | XR312 | Connection Terminals | 2×Speakon NL4 |
|---|---|---|---|
| Woofer | 2×12"(300mm) with 3"voice coil | Tweeter | 2×1.5"(38mm) with 2.5"voice coil |
| Rated Power | HF: 150W AES, 600W peak (bi-amp mode)MF: 320W AES, 1280W peak (bi-amp mode)LF: 900W AES, 3600W peak (bi-amp mode) | Nominal Impedance | 8Ω |
| Dimensions (W×D×H) | 1086mm×560mm×382mm | weight | 71KG |
| 1. Symmetrical Wavefront Three-Way DesignFeaturing a symmetrical co-planar wavefront structure and true three-way configuration, this professional audio line array sound system delivers smooth frequency response, precise phase alignment, and consistent sound coverage across the entire listening area.2. High SPL Output for Large VenuesWith high sensitivity and powerful sound reinforcement capability, the system provides strong, stable high SPL performance, making it ideal for large venue sound systems, concert line array speaker setups, and long-throw applications. |
|---|
| 3. Scalable Line Array System SolutionDesigned as a modular professional line array speaker, it can be flexibly configured into a complete line array system / array system, adapting easily to touring sound reinforcement systems and fixed installation professional audio projects.4. Reliable Performance for Professional ApplicationsBuilt for demanding professional audio environments, this line array sound system ensures clarity, dynamics, and operational stability for live performance, touring productions, and permanent installation sound reinforcement. |
|---|
Product description
The supplier lists this product. Its stated application is Commercial, Home. The listed model is XR312. The specifications below reflect the information publicly displayed on the listing. Noise: ≥105dB. Model NO.: XR312. Speaker Material: Wood. Sensitivity: 105db (Passive Mode); Hf 113db, Mf 106db, Lf 105db.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for High-Output Symmetric Wavefront Three-Way Touring Grade Line Array?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does High-Output Symmetric Wavefront Three-Way Touring Grade Line Array cost?
The published price is US$1,449.00 – 1,499.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
High-Output Symmetric Wavefront Three-Way Touring Grade Line Array Sound System for Professional Audio Applications with Long-Throw High Power Spl Precision
XR312 · US$1,449.00 – 1,499.00 · MOQ 1 Pieces
XR312 · US$1,449.00 – 1,499.00 · MOQ 1 Pieces
Inquiry sent
Related products
All PA, Stage & Line-Array Speakers →

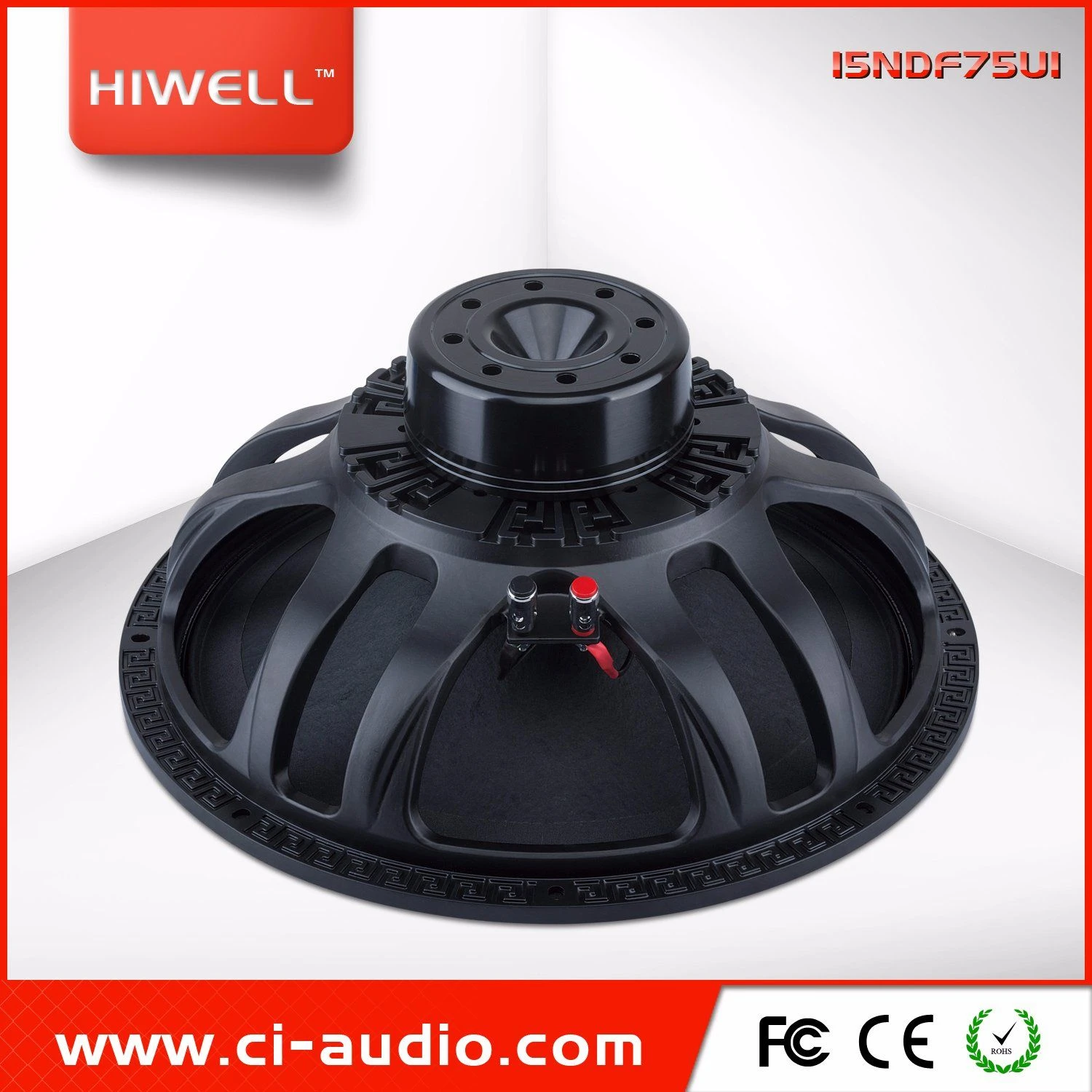

Professional Loudspeaker 15” Midrange Powered Line Array Speaker 1000W PRO Audio.
