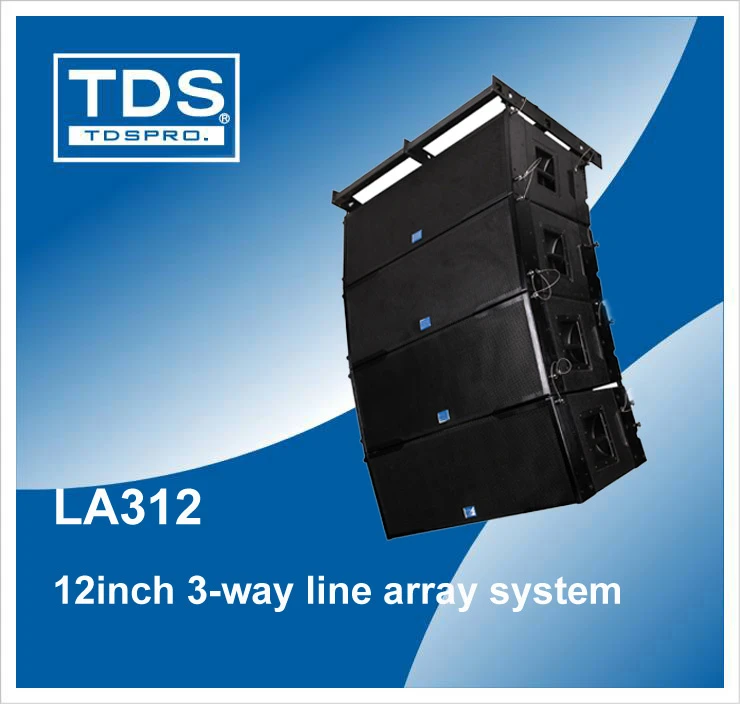

High Spl Line Array Audio System for Large Performance
- Application
- Commercial
- Speaker Material
- Wood
- Certification
- CE, RoHS
- THD
- <0.03%
- System Type
- Dual 12inch, Three-Way Line Array Speaker
- Frequency Range
- 40Hz -- 20kHz
Specifications
| Product name | High Spl Line Array Audio System for Large Performance |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Model NO. | LA312 |
| Speaker Material | Wood |
| Application | Commercial |
| Certification | CE, RoHS |
| THD | <0.03% |
| System Type | Dual 12inch, Three-Way Line Array Speaker |
| Frequency Range | 40Hz -- 20kHz |
| Maximum Peak Output | 139db |
| Transport Package | Carton or Flightcase |
| Specification | CE, RoHS |
| Origin | Guangzhouchina |
| HS Code | 851822000 |
| Production Capacity | 5000 Units Per Month |
| Customization | Available |
| Noise | <95dB |
| Activity | Passive |
| LF | 800W Continuou. 1600W Peak. |
| MF | 300W Continuou. 600W Peak. |
| HF | 180W Continuou. 360W Peak. |
| Price | US$800.00-1,280.00 4 Pieces (MOQ) |
| Supplier | TDS ACOUSTIC CO., LIMITED |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Wood |
|---|
Additional data
| TECHNICAL SPECIFICATION | |
|---|---|
| Frequency Range (-10dB) | 40Hz -- 20KHz |
| Frequency Response(±3dB) | 60Hz -- 18KHz |
| Horizontal Coverage Angle (-6dB) | 90° |
| Vertical Coverage Angle(-6dB) | 10° |
| System Input Power Rating | LF: 800W Continuou. 1600W Peak. |
| MF: 300W Continuou. 600W Peak. | |
| HF: 180W Continuou. 360W Peak. | |
| Maxium Peak Output | 139 dB |
| Recommended Amplification | LF 1200W into 8 ohm. |
| MF 800W into 8 ohm. | |
| HF 600W into 8 ohm. | |
| PHYSICAL DATA | |
| Dimensions ( W x H x D ) | 1120 x 390 x 500 mm |
| Net Weight | 56 kg |
| Connectors | 2 x NL8MP Neutrik Speakon Connectors |
| Cabinet Material | 18mm Birch Plywood |
Product description
The supplier lists this product. Its stated application is Commercial. The listed model is LA312. The specifications below reflect the information publicly displayed on the listing. Model NO.: LA312. Speaker Material: Wood. Frequency Range: 40Hz -- 20kHz. Noise: <95dB.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for High Spl Line Array Audio System for Large Performance?
The listed minimum order quantity is 4 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does High Spl Line Array Audio System for Large Performance cost?
The published price is US$800.00 – 1,280.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
LA312 · US$800.00 – 1,280.00 · MOQ 4 Pieces
