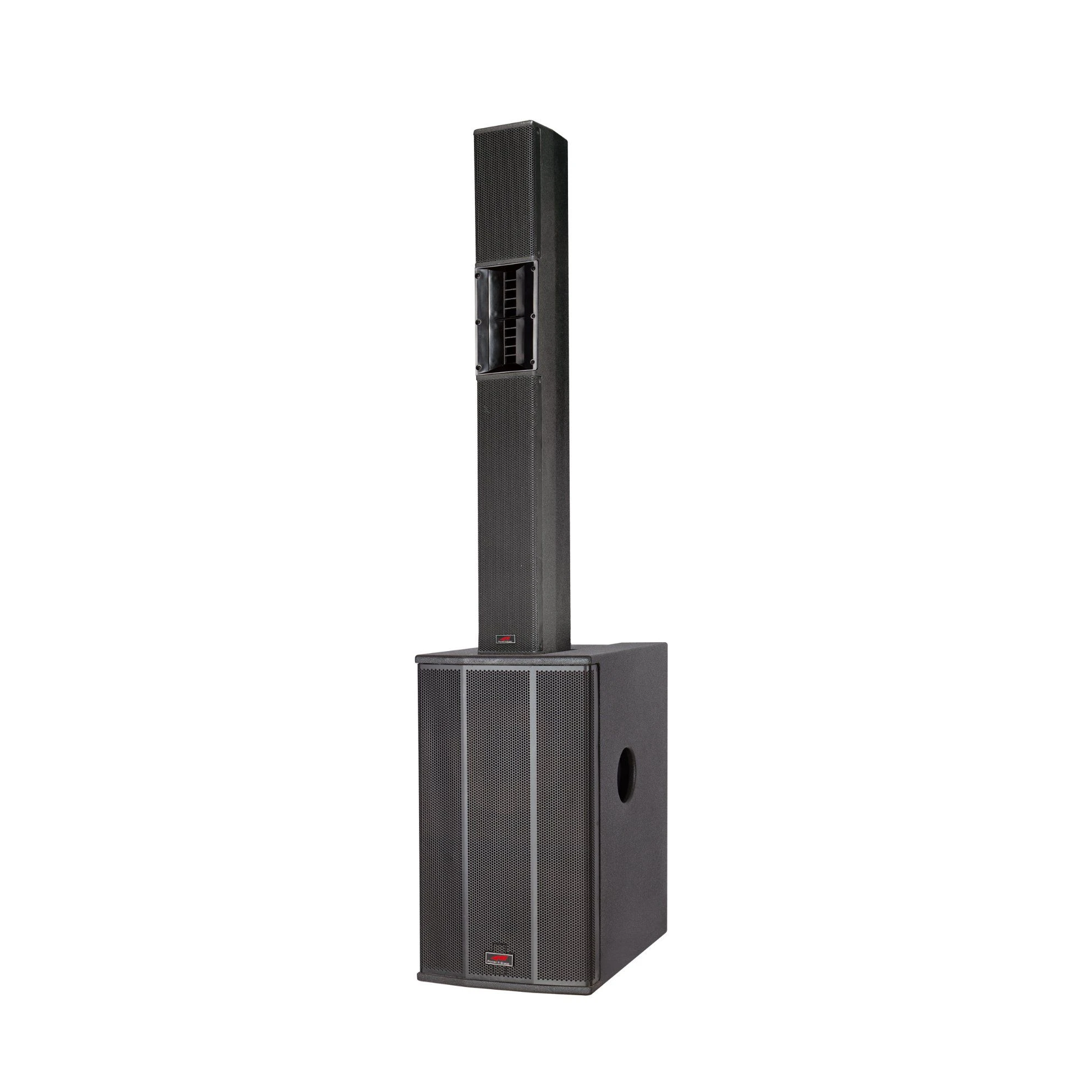

Live Performance Stage Speaker Colinear Sound System Active Column Speaker with DSP
- Impedance
- 6ohm
- Frequency Response
- 90Hz-19kHz
- Sensitivity
- 98dB
- Application
- Commercial
- Hi-Fi
- Not Hi-Fi
- Activity
- Active
Specifications
| Product name | Live Performance Stage Speaker Colinear Sound System Active Column Speaker with DSP |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Customization | Available |
| Hi-Fi | Not Hi-Fi |
| Activity | Active |
| Model NO. | KQ-5 |
| Operation Mode | Wire / Remote Control |
| Speaker Material | Wood |
| Application | Commercial |
| Certification | CE, RoHS |
| Model | Kq-5 Top |
| Impedance | 6ohm |
| Long-Term Power(RMS) | 400W |
| Power Peak | 800W |
| Sensitivity | 98dB |
| Frequency Response | 90Hz-19kHz |
| Connector | 1X4-Pin Speakon |
| N.W/G.W | 16.0kg/ 46 0kg(X2) |
| Transport Package | Gift Box/Export Carton/Pallet |
| Origin | Guangdong China |
| HS Code | 8518290000 |
| Production Capacity | 10000 |
| H1 | 2x1"compress1on driver Low·6x5"(25mm voice coil) |
| A very good questions | Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation. |
| Price | US$899.00 1-4 Sets US$860.00 5-49 Sets US$782.00 50+ Sets |
| Supplier | Guangzhou strong sound electronic equipment Co., Ltd |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Wood |
|---|---|
| Long-Term Power(RMS) | 400W |
| Power Peak | 800W |
| Impedance | 6ohm |
| Connector | 1X4-Pin Speakon |
Additional data
| Model | KQ-5 TOP | KQ-5 SUB |
|---|---|---|
| Frequency response | 90Hz-19KHz | 45Hz-280Hz |
| Drivers | H1: 2x1"compress1on driver Low·6x5"(25mm voice coil) | 2x13 5"(80mm voice coil) |
| Directivity angle | H100° xv10 | ---- |
| Sensitivity | 98dB | 103dB |
| Impedance | 6ohm | 4ohm |
| Long-term power(RMS) | 400W | 700W |
| Power peak | 800W | 1400W |
| Maximum SPL | 127dB | 134dB |
| Power supply | ---- | AC 110v-240V750Hz |
| Output power | ---- | 500W+1000W |
| PC interface | ---- | One USB interface on front panel DSP |
| Connector | 1x4-pin Speakon | 2XLR+1x4-pin Speakon+1 Powercon |
| Product/shipping | 1160x198x150/ | 386x545x700/ |
| dimension(WxDxH) | 1210x390x430mm | 1210x390x430mm |
| N.W/G.W | 16.0kg/ 46 0kg(x2) | 42.0kg/102.0kg(x2) |
Product description
The supplier lists this product. Its stated application is Commercial. The listed model is KQ-5. The specifications below reflect the information publicly displayed on the listing. Model NO.: KQ-5. Speaker Material: Wood. Model: Kq-5 Top. Impedance: 6ohm. Long-Term Power(RMS): 400W. Power Peak: 800W. Sensitivity: 98dB. Frequency Response: 90Hz-19kHz. Connector: 1X4-Pin Speakon.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Live Performance Stage Speaker Colinear Sound System Active Column?
The listed minimum order quantity is 1 sets. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Live Performance Stage Speaker Colinear Sound System Active Column cost?
The published price is US$782.00 – 899.00 per set, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
KQ-5 · US$782.00 – 899.00 · MOQ 1 Sets
