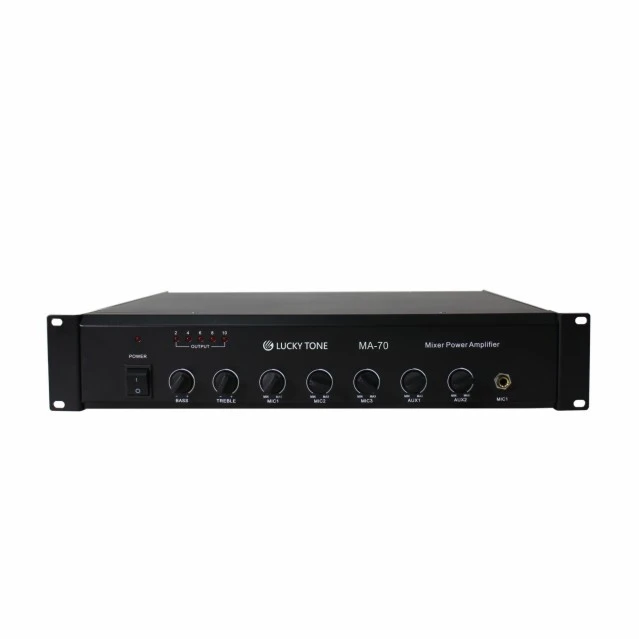

Mixer Amplifier with Aux and Microphone Input
Speaker Amplifiers & Audio Processors

Mixer Amplifier with Aux and Microphone Input

Model: MA-70 Customization available Cables, Adapters & Audio Electronics
US$40.00 – 100.00
MOQ 50 Pieces
Frequency Response
60 to 15,000 Hz
Type
Mixer Amplifier
Usage
Public Address System
Used For
Civilian
Function
Amplifier Combined
Voltage
220 to 240V AC
Send Inquiry Full specifications

Specifications

Product nameMixer Amplifier with Aux and Microphone Input
CategorySpeaker Amplifiers & Audio Processors
CustomizationAvailable
TypeMixer Amplifier
UsagePublic Address System
Model NO.MA-70
Used ForCivilian
FunctionAmplifier Combined
Voltage220 to 240V AC
Rated Power Output70W
Frequency Response60 to 15,000 Hz
ThdLess Than 0.5% at 1kHz (1/3 Rated Power)
S/N RatioBetter Than 73dB
Controls5 Input Gain, 1 Treble, 1 Bass, 1 Mute, and Power
Power Consumption115W
Gross Weight11.72kg
Built-in Dimensions2 U Rack 19 Inch
Transport PackageCarton
Specification89(H) x 483(W) x 366(D) mm
OriginGuangzhou, China
Production Capacity5000/Month
Model NumberMA-70
BASS100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB
FuseT2.0A
Panelsteel plate, black
Casesteel plate, black
PriceUS$40.00-100.00 50 Pieces(MOQ)
SupplierGuangzhou strong sound electronic equipment Co., Ltd
Data retrieved2026-10-23

Available options

Voltage220 to 240V AC
Rated Power Output70W
Power Consumption115W
Model NumberMA-70

Additional data

ModelMA-70
Rated Power Output70W
Output RegulationLess than 3 dB (no load to full load)
Frequency Response60 - 15,000 Hz, +/- 3dB
THDLess than 0.5% at 1kHz (1/3 Rated Power)
S/N RatioBetter than 73dB
Tone ControlsBASS: 100 Hz (+/- 10dB), TREBLE: 12k Hz (+/- 10dB
Controls5 input gain, 1 treble, 1 bass, 1 mute, and power switch
CoolingInternal 12VDC fan, extensive heat sinking
IndicatorsPower indicator LED, LED output level meter 0, 2, 4, 6, 8, 10dB
ProtectionFuse: T2.0A Current limiter, short circuit and thermal protection circuits
Power Consumption115W
Power Requirments220-240V AC, 50/60 Hz
Dimensions89(H) x 483(W) x 366(D) mm
Built-in Dimensions2 U rack 19 inch
Carton Dimensions185(H) x 520(W) x 435(D) mm
Net Weight10.04kg
Gross Weight11.72kg
FinishPanel: steel plate, black Case: steel plate, black

Product description

The supplier lists this product as Mixer Amplifier. Its stated application is Public Address System. The listed model is MA-70. Supplier-stated function: Amplifier Combined. The specifications below reflect the information publicly displayed on the listing. Model NO.: MA-70. Rated Power Output: 70W. Frequency Response: 60 to 15,000 Hz. Power Consumption: 115W. Model Number: MA-70.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Mixer Amplifier with Aux and Microphone Input?

The listed minimum order quantity is 50 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Mixer Amplifier with Aux and Microphone Input cost?

The published price is US$40.00 – 100.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
