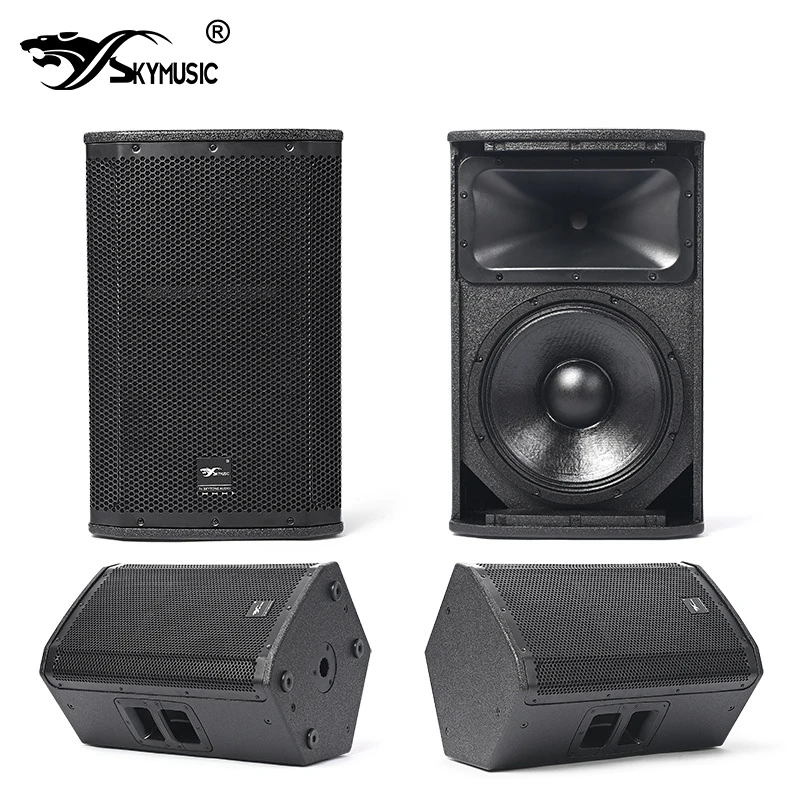

Multi-Purpose Active 12 Inch Stage Monitor USB Bluetooth DSP Full Range Speaker
PA, Stage & Line-Array Speakers

Multi-Purpose Active 12 Inch Stage Monitor USB Bluetooth DSP Full Range Speaker

Model: ZLX12 Customization available Speakers & Audio Systems
US$286.002–19 Pieces
US$258.0020+ Pieces
MOQ 2 Pieces
Power
1300W Continuous, 650W RMS
Impedance
4 Ohms
Usage
Stage/DJ, Karaoke, DJ, Stage, KTV
Adjusting Method
Amplifier
Structure
Bass Reflex Enclosure
Function
Bluetooth, USB
Send Inquiry Full specifications

Specifications

Product nameMulti-Purpose Active 12 Inch Stage Monitor USB Bluetooth DSP Full Range Speaker
CategoryPA, Stage & Line-Array Speakers
Model NO.ZLX12
UsageStage/DJ, Karaoke, DJ, Stage, KTV
Adjusting MethodAmplifier
StructureBass Reflex Enclosure
FunctionBluetooth, USB
System TypeSelf Powered 12", Two-Way, Bass-Refex,Multi-Purpos
Frequency Response Rate (±3db)48 Hz-20 kHz
Maximum Spl126 Db
Impedance4 Ohms
Crossover Frequency1.5 kHz
Dimensions (H X W X D)572 Mmx364 Mmx380 mm(22.5''x14.3''x15'')
Net Weight20.65kg(45.53 Lbs)
Handles2
Input ConnectorsXLR Input/Output, Bluetooth, USB, IEC C14 Power in
Suspension /Mounting36 mm Pole Socket,12 X M10 Suspension Points
Enclosure18 mm Birch Plywood
Lf Driver1X 2.5 Inch V.C. 500W Ferrite Woofer
Hf Driver1X1.7 Inch Neodymium Tweeter,RMS 150W, 8 Ohms
Power1300W Continuous, 650W RMS
Coverage Pattern90° X50° Nominal (Monitor Position)
Transport PackageCarton
Specification12 inch
OriginChina
CustomizationAvailable
Amplification TypeActive
Speaker MaterialBirch Plywood
PriceUS$286.00 2-19 Pieces US$258.00 20+ Pieces
SupplierGuangzhou Skytone Audio Co., Limited
Data retrieved2026-10-23

Available options

Power
1300W Continuous650W RMS
Speaker MaterialBirch Plywood
Impedance4 Ohms
Input Connectors
XLR Input/OutputBluetoothUSBIEC C14 Power in

Additional data

ZLX G2 Specifications
System TypeSelf powered 12", two-way, bass-refex,multi-purpose/stage monitor
Amplifier module2 x 500W with DSP audio processor control
Maximum SPL output126 dB
Frequency Range (-10 dB)40 Hz - 21 kHz
Frequency Response (±3 dB)48 Hz - 20 kHz
Coverage Pattern90° x 50° nominal (Monitor position)
Crossover Frequency1.5 kHz
LF Driver1 x 170mm magnet 65mm(2.5 inch) voice coil ferrite woofer,RMS 500W,4 ohms
HF Driver1 x 44mm(1.7 inch) neodymium tweeter,RMS 150W,8 ohms
Power1300W Continuous, 650W RMS
Enclosure18 mm birch plywood
Suspension / Mounting36 mm pole socket,12 x M10 Suspension points
Handles2
FinishBlack polyurea finish (waterproof, fireproof, anti-scratch)
GrillePowder coated, black, 14-gauge perforated steel withacoustical transparent charcoal foam backing.
Input ConnectorsXLR input/output, Bluetooth, USB, IEC C14 Power Inlet
Dimensions (H x W x D)572 mmx364 mmx380 mm(22.5''x14.3''x15'')
Net weight20.65KG(45.53 lbs)

Product description

The supplier lists this product. Its stated application is Stage/DJ, Karaoke, DJ, Stage, KTV. The listed model is ZLX12. Supplier-stated function: Bluetooth, USB. The specifications below reflect the information publicly displayed on the listing. Model NO.: ZLX12. Frequency Response Rate (±3db): 48 Hz-20 kHz. Impedance: 4 Ohms. Crossover Frequency: 1.5 kHz. Input Connectors: XLR Input/Output, Bluetooth, USB, IEC C14 Power in. Lf Driver: 1X 2.5 Inch V.C. 500W Ferrite Woofer. Hf Driver: 1X1.7 Inch Neodymium Tweeter,RMS 150W, 8 Ohms. Power: 1300W Continuous, 650W RMS. Speaker Material: Birch Plywood.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Multi-Purpose Active 12 Inch Stage Monitor USB Bluetooth DSP Full?

The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Multi-Purpose Active 12 Inch Stage Monitor USB Bluetooth DSP Full cost?

The published price is US$258.00 – 286.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
