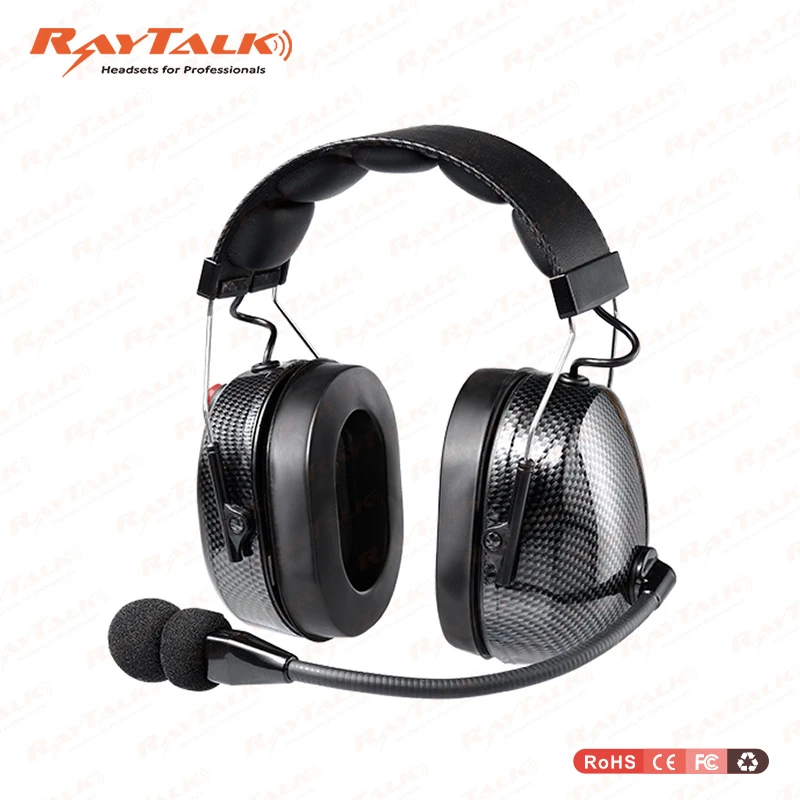

Noise Canceling Aviation Helmet Headset for Paramotor
- Communication
- Wired
- Impedance
- 150 ohms (300 ohms each; wired in parallel)
- Frequency Response
- 100Hz to 8 kHz
- Sensitivity
- 95+/-5 dB SPL
- Jack Diameter
- 6.3mm
- Jack Type
- Plug-in
Specifications
| Product name | Noise Canceling Aviation Helmet Headset for Paramotor |
|---|---|
| Category | Motorcycle & Helmet Headsets |
| Customization | Available |
| Wire Material | PU |
| Color | Blue, Red, Black |
| Model NO. | RAN-1000AHM |
| Type | Electret Earphone |
| Communication | Wired |
| Usage | Aviation, Walkie Talkie |
| Function | Microphone, Noise-Canceling, Helmet |
| Jack Diameter | 6.3mm |
| Jack Type | Plug-in |
| Ran-1000acm Color | Black |
| Ran-1000acm Connector | Two-Plug |
| Ran-1000acm Application | Airplane/Airline/Pilot/Aircraft/Paramotor |
| Warranty | 12months |
| Ran-1000acm Microphone | Flexiable Boom Microphone |
| Ear | Foam Ear Seal/Gel Ear Seal/ |
| Ran-1000acm Plug | Ga Use Dual Plug |
| Noise Canceling | Passive Nrr:24 Db Rating |
| Brand Name | Raytalk or OEM |
| OEM Produce | Available |
| Transport Package | Standard Airworthy Packing |
| Specification | CE/ISO |
| Origin | Shenzhen of China |
| HS Code | 85183010 |
| Production Capacity | 1000PCS/Week |
| Detail Technical Specification | Overview |
| Noise Reduction Ratings (NRR) | 24dB |
| Frequency Response | 100Hz to 8 kHz |
| Sensitivity | 95+/-5 dB SPL |
| Impedance | 150 ohms (300 ohms each; wired in parallel) |
| Rate Input | 100mW |
| Max. Input | 250mW |
| Element Type | Noise-canceling electret |
| Operating Voltage (supplied by aircraft ) | 8-32 Volts DC |
| Matching Impedance | 150-1000 ohms |
| Operating Temperature | -20 to 70 °C |
| Cordage | Straight cord from headset to molded plug, 150CM |
| Earphone Plug | PJ-055( .25"F6.3 phone plug) |
| Microphone Plug | PJ-068( .206"F5.2 phone plug) |
| Weights | 530g |
| Headset size range Height | 10 to 14 cm |
| Boom | Spring tension boom |
| Package | Headset in a carton box. |
| MOQ | 1/pcs |
| After-sale service | Shipping |
| Price | US$90.00-150.00 24 Pieces(MOQ) |
| Supplier | RAYTALK COMMUNICATIONS LTD |
| Data retrieved | 2026-10-23 |
Available options
| Wire Material | PU |
|---|---|
| Color | |
| Jack Diameter | 6.3mm |
| Ran-1000acm Color | Black |
| Ran-1000acm Connector | Two-Plug |
| Impedance |
Additional data
| Overview | PNR Aviation Headset GA Use Dual plugs Super Soft Double Foam Head Pad New Comfort foam, undercut ear seals Molded cord assembly made to exceptional pull and flex standards Noise-canceling electret Strong Steel Boom provides flexibility and steady microphone placement Straight cord from headset to molded plug, 150CM Noise Reduction Ratings (NRR):24dB |
|---|---|
| Headphone | Type: Dynamic (F50) Frequency Response:100Hz to 8 kHz Sensitivity:95+/-5 dB SPL (1 kHz, 1 mW input per earcup side) full volume on ear simulator Impedance:150 ohms (300 ohms each; wired in parallel) Rate Input:100mW Max. Input: 250mW Microphone and Amplifier: Element Type: Noise-canceling electret Frequency Response:100Hz to 5 kHz Operating Voltage (supplied by aircraft ):8-32 Volts DC Matching Impedance: 150-1000 ohms Sensitivity:-33+/-4 dB (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) |
| General | Operating Temperature: -20 to 70 °C Cordage: Straight cord from headset to molded plug, 150CM Intercom Connections Plug: Earphone Plug: PJ-055( .25"F6.3 phone plug) Microphone Plug:PJ-068( .206"F5.2 phone plug) Weights: 530g Headset size range Height: 10 to 14 cm Color: Green/Black/Pink/Red/Yellow/Blue/White/Gray Boom: Spring tension boom |
Product description
The supplier lists this product as Electret Earphone. Its stated application is Aviation, Walkie Talkie. The listed model is RAN-1000AHM. Supplier-stated function: Microphone, Noise-Canceling, Helmet. The specifications below reflect the information publicly displayed on the listing. Wire Material: PU. Model NO.: RAN-1000AHM. Ran-1000acm Connector: Two-Plug. Noise Canceling: Passive Nrr:24 Db Rating. Noise Reduction Ratings (NRR): 24dB. Frequency Response: 100Hz to 8 kHz. Sensitivity: 95+/-5 dB SPL. Impedance: 150 ohms (300 ohms each; wired in parallel). Matching Impedance: 150-1000 ohms.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Noise Canceling Aviation Helmet Headset for Paramotor?
The listed minimum order quantity is 24 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Noise Canceling Aviation Helmet Headset for Paramotor cost?
The published price is US$90.00 – 150.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
