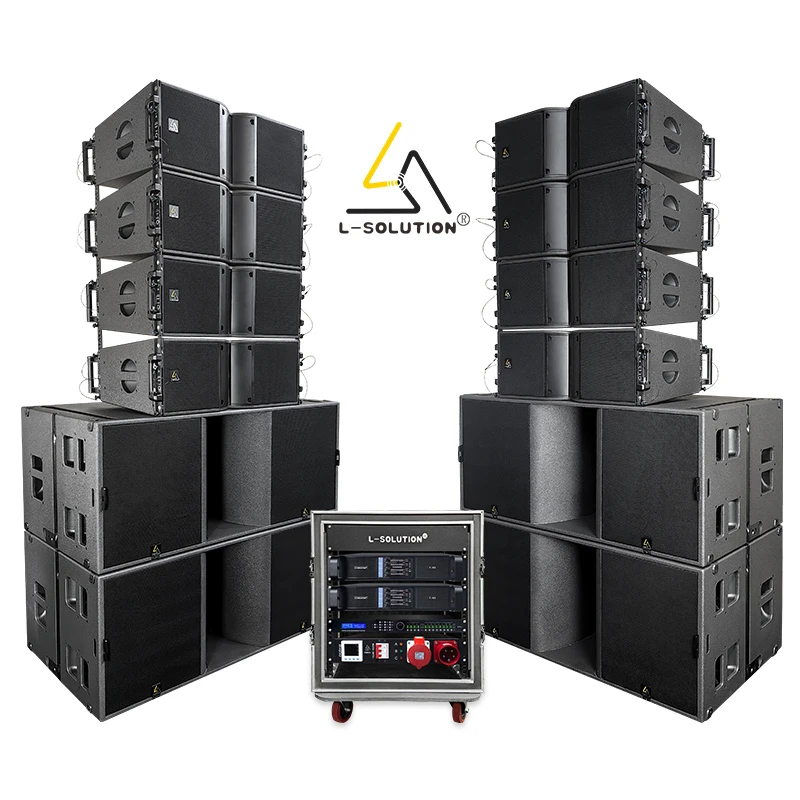

Passive Line Array System K210 & Ks28 Speaker for Live Events & Installations
PA, Stage & Line-Array Speakers

Passive Line Array System K210 & Ks28 Speaker for Live Events & Installations

Model: K210&KS28 Customization available Speakers & Audio Systems
US$9,800.00
MOQ 1 Set
Frequency Response
56Hz-19 kHz/56Hz-19 kHz
Application
Commercial
Noise
<95dB
Hi-Fi
Hi-Fi
Activity
Passive
Operation Mode
Button Control
Send Inquiry Full specifications

Specifications

Product namePassive Line Array System K210 & Ks28 Speaker for Live Events & Installations
CategoryPA, Stage & Line-Array Speakers
CustomizationAvailable
Noise<95dB
Hi-FiHi-Fi
Model NO.K210&KS28
ActivityPassive
Operation ModeButton Control
Speaker SystemNot
Speaker MaterialWood
ApplicationCommercial
CertificationCE, RoHS, CCC
MonitorNot
THD<0.005%
Product NameK210+Ks28 8+4 Passive System
ComponentsLf:2X 10 "+ Hf:1X 3 "/2×18 "
Frequency Response56Hz-19 kHz/56Hz-19 kHz
Power RMS/Peak900W/3600W;2400W/9600W
Transport PackageFlight Case
Specification305*820*555mm; 565*1345*730mm
OriginChina
Production Capacity3000
Package Size82.00cm * 89.00cm * 61.00cm
Package Gross Weight100.000kg
Lead Time20 days (1 - 1 Sets) To be negotiated ( > 1 Sets)
LF2x 10 "+ HF:1x 3 "
Material TestSize, Appearance, and Functional Test
Consistency TestSpeaker Test, Crossover Test, and Pole Test
Product Parameter TestImpedance Test, Frequency Response Test
Sound TestConduct trial listening, Resonance Test, and Long-term Aging Test
Installation TestProduct installation, hanging, and other Accessory Test
PriceUS$9,800.00 1 Set(MOQ)
SupplierL-Solution Audio Engineering Co., Ltd
Data retrieved2026-10-23

Available options

Speaker MaterialWood
Power RMS/Peak
900W/3600W2400W/9600W
Material Test
SizeAppearanceand Functional Test

Additional data

TECHNICAL SPECIFICATIONS
Product NameK210+KS28 8+4 Passive System
ModelK210
ComponentsLF:2x 10 "+ HF:1x 3 "
Frequency Response(3dB)56Hz-19 kHz
Sensitivity(1m@1w)97dB
Max SPLat 1M139dB
Power RMS/peak900W/3600W
Nominal lmpedance8Ω
Input/output connectorsoriginal NL4neutrik
Enclosure18mm birch plywood &black painting
Product Size(mm)305*820*555mm
Shipping Size(mm)820*890*615mm
N.W(kg)34kg
G.W(kg)(2pcs/case)93kg
SuppliersL-solution
Product NameKS28 Passive Subwoofer
ModelKS28
Components2×18 "
Frequency Response(3dB)29Hz-200Hz
Sensitivity(1m@1w)99dB
Max SPLat 1M142dB
Power RMS/peak2400W/9600W
Nominal lmpedance4Ω
Input/output connectorsoriginal NL4neutrik×2 +1/-1
Product Size(mm)565*1345*730mm
Shipping Size(mm)1450*810*810mm
N.W(kg)80.6kg
G.W(kg)(2pcs/case)128.5kg

Product description

The supplier lists this product. Its stated application is Commercial. The listed model is K210&KS28. The specifications below reflect the information publicly displayed on the listing. Noise: <95dB. Model NO.: K210&KS28. Speaker Material: Wood. Frequency Response: 56Hz-19 kHz/56Hz-19 kHz. Power RMS/Peak: 900W/3600W;2400W/9600W. Material Test: Size, Appearance, and Functional Test.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Passive Line Array System K210 & Ks28 Speaker for Live Events &?

The listed minimum order quantity is 1 set. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Passive Line Array System K210 & Ks28 Speaker for Live Events & cost?

The published price is US$9,800.00 per set. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
