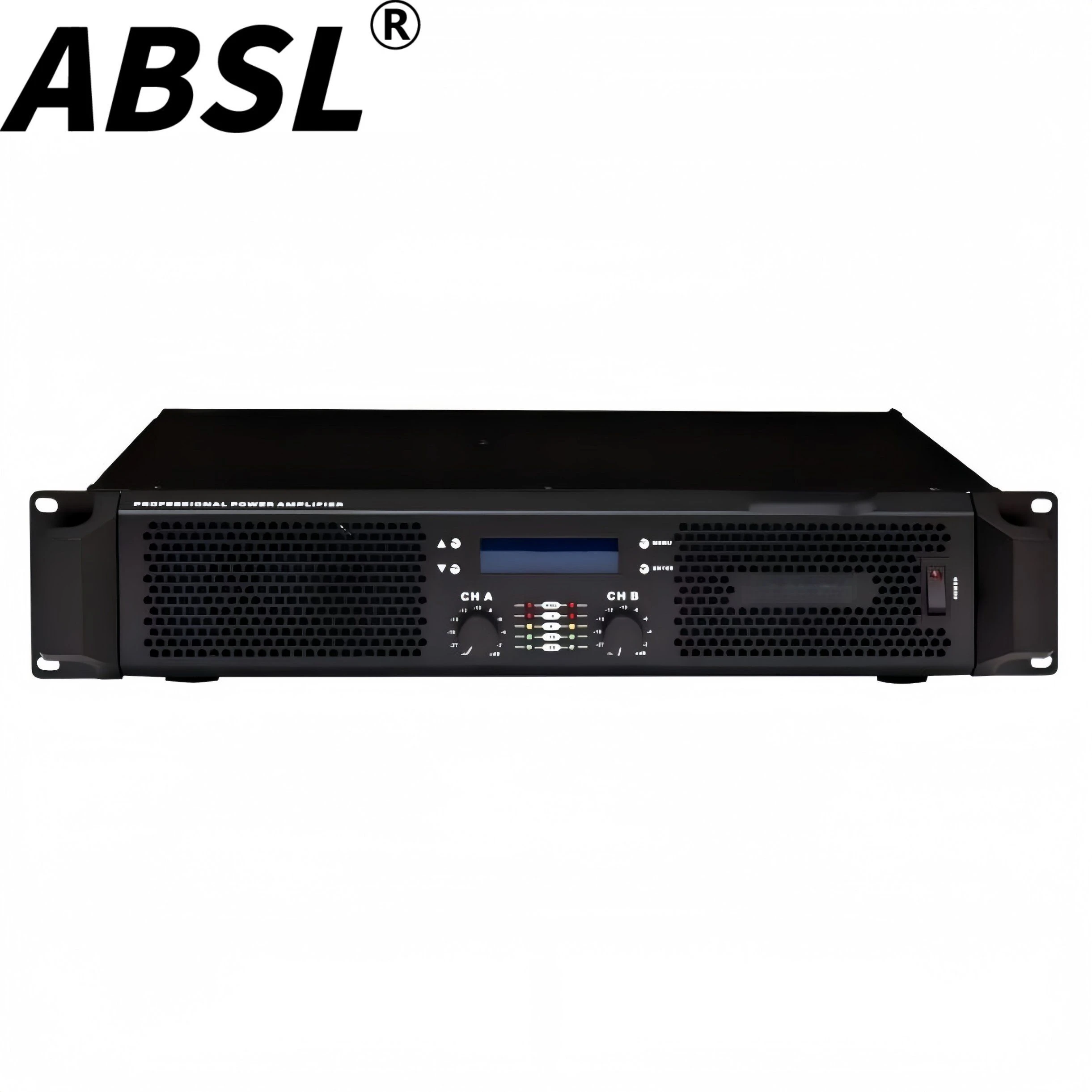

Professional Class-H 2 CH*410W Stereo Audio Power Amplifier for KTV Party Performance
US$1.00 – 999.00
MOQ 100 Pieces
Speaker Amplifiers & Audio Processors

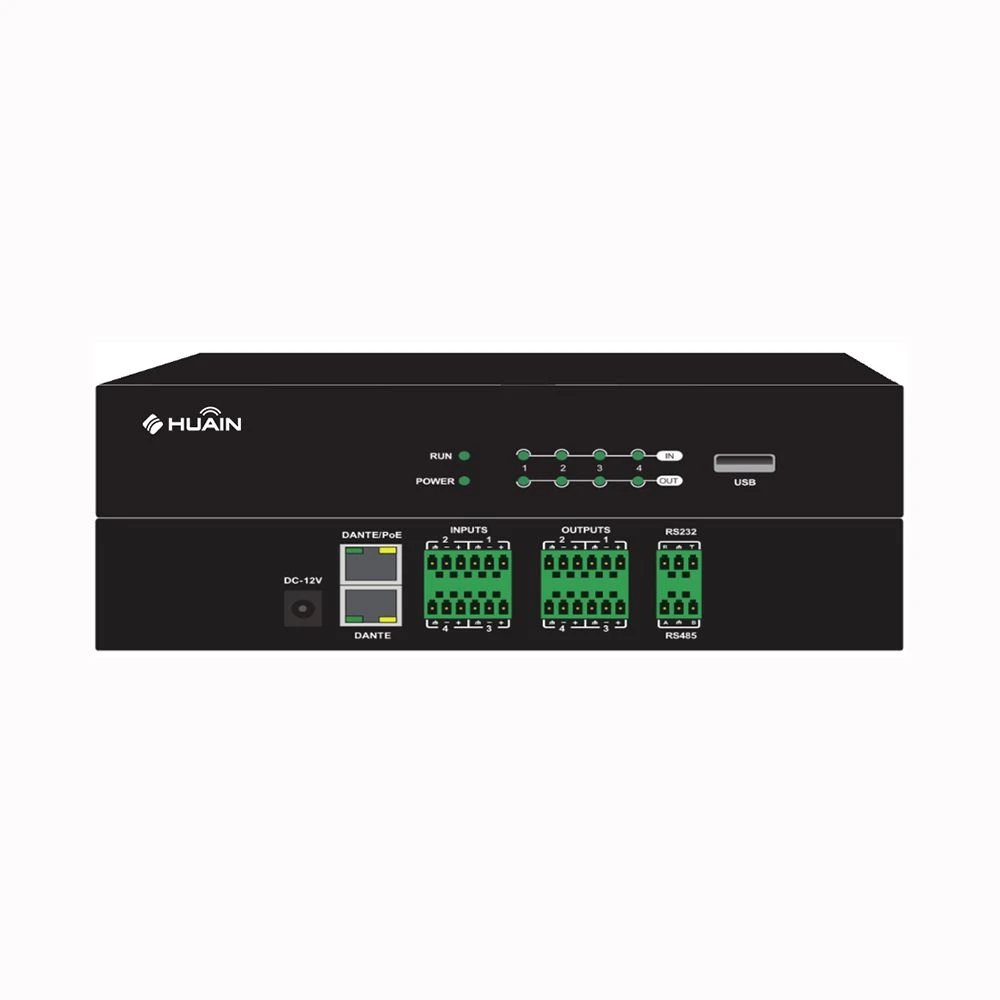

Professional 4X4 Dante DSP Audio Matrix Digital Media Processor with Hardware Aec, Ans, Afc & Gain-Sharing Auto-Mixer Engine
US$369.00
MOQ 1 Piece
- Type
- Digital Audio Conferencing System
- Color
- Black
- Communication Mode
- TCP/IP, UDP, RS-232, RS-485 & Dante Network
- Compatibility
- Android devices, iOS devices, Mac OS
- Control Features
- Remote Control, Web-based Control Interface
- Number of Participants
- 500 participants & Above
Specifications
| Product name | Professional 4X4 Dante DSP Audio Matrix Digital Media Processor with Hardware Aec, Ans, Afc & Gain-Sharing Auto-Mixer Engine |
|---|---|
| Category | Speaker Amplifiers & Audio Processors |
| Customization | Available |
| Audio Quality | Echo Cancellation Feature, Full-duplex Audio, HD Audio Quality, Noise Cancellation Feature, Voice Enhancement Technology |
| Color | Black |
| Model NO. | HY-DA0404D |
| Communication Mode | TCP/IP, UDP, RS-232, RS-485 & Dante Network |
| Compatibility | Android devices, iOS devices, Mac OS |
| Control Features | Remote Control, Web-based Control Interface |
| Integration | Integration with Collaboration Tools, Integration with Video Conferencing Systems |
| Number of Participants | 500 participants & Above |
| Recording Options | Built-in recording feature, External recording device support |
| Type | Digital Audio Conferencing System |
| Transport Package | 1 Unit Per Heavy-Duty Protected Carton with Shockp |
| Specification | Standard 1U Rack Chassis |
| Origin | China |
| Dual-Core Hybrid Matrix | Blends 4-channel analog Mic/Line inputs and 4-channel Dante audio network nodes into one unit. |
| Advanced Echo Killer (AEC) | Features built-in hardware Acoustic Echo Cancellation to keep remote video meetings clear. |
| Smart AMC Auto-Mixer | Employs gain-sharing automatic mixing logic to balance multiple open microphones seamlessly. |
| BYOD USB Sound Card | Includes a plug-and-play USB interface for instant integration with PC recording or Zoom/Teams meetings. |
| Studio Equalization | Loaded with 12-band PEQ for inputs, plus 31-band GEQ, crossovers, and limiters for system tuning. |
| Quad Control Protocol | Openly supports central control management over TCP/IP, RS-232, RS-485, and dual UDP ports. |
| Automated Camera Link | Syncs with PTZ cameras using preset positions to automate video tracking during active speech. |
| Multi-OS Wireless App | Fully compatible with Windows, iOS, and Android for wireless system tuning over WiFi. |
| Price | US$369.00 1 Piece(MOQ) |
| Supplier | Huain (Zhuhai) Digital Technology Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Color | Black |
|---|---|
| Multi-OS Wireless App | Fully compatible with Windows, iOS, and Android for wireless system tuning over WiFi. |
Additional data
| Technical Parameters Table | |
|---|---|
| DSP Core Processing Engine | High-Speed Floating-Point Acoustic Processing Architecture |
| Analog Audio Input Channels | 4 x Balanced Mic/Line Inputs (Euroblock/Phoenix Terminals) |
| Analog Audio Output Channels | 4 x Balanced Line Outputs (Euroblock/Phoenix Terminals) |
| Dante Network Audio Interface | 4-In / 4-Out Native Dante Protocol Channels (2 x RJ45 Ports) |
| Quantization Resolution | 48KHz Sampling Rate / 24-bit Architecture |
| Phantom Power Supply | +48V Independent Control Per Analog Input |
| AEC / ANS Core Logic | Independent Adaptive Echo Cancellation & Noise Suppression |
| AFC Howling Mitigation | 16-Point Independent Adaptive Feedback Cancellation Per CH |
| Auto-Mixing Architecture | Gain-Sharing AMC / Gate Mixer / AGC / Ducker / ANC |
| Channel Equalization Matrix | 12-Band PEQ (Input), 12-Band PEQ + 31-Band GEQ (Output) |
| Dynamic Range (A/D / D/A) | > 113 dB / > 115 dB |
| Frequency Response / THD+N | 20 Hz ~ 20 kHz (±0.2dB) / ≤ 0.003% @1kHz, +4dBu |
| BYOD Connectivity Link | Built-in Auto-Recognition USB Audio Sound Card Interface |
| Central Control Framework | Dual-UDP Control Setup, 1 x RS-232, 1 x RS-485, 1 x TCP/IP |
| Scene Profile Presets | 16 Independent Preset Groups (Panel/Network Recallable) |
| Camera Tracking Control | Hardware Preset Trigger for PTZ Camera Automation Linkages |
| Operational Power Profile | AC 100V-240V, 50/60Hz, Power Consumption < 25W |
Product description
The supplier lists this product as Digital Audio Conferencing System. The listed model is HY-DA0404D. The specifications below reflect the information publicly displayed on the listing. Model NO.: HY-DA0404D.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Professional 4X4 Dante DSP Audio Matrix Digital Media Processor with?
The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Professional 4X4 Dante DSP Audio Matrix Digital Media Processor with cost?
The published price is US$369.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
Professional 4X4 Dante DSP Audio Matrix Digital Media Processor with Hardware Aec, Ans, Afc & Gain-Sharing Auto-Mixer Engine
HY-DA0404D · US$369.00 · MOQ 1 Piece
HY-DA0404D · US$369.00 · MOQ 1 Piece
Inquiry sent
Related products
All Speaker Amplifiers & Audio Processors →

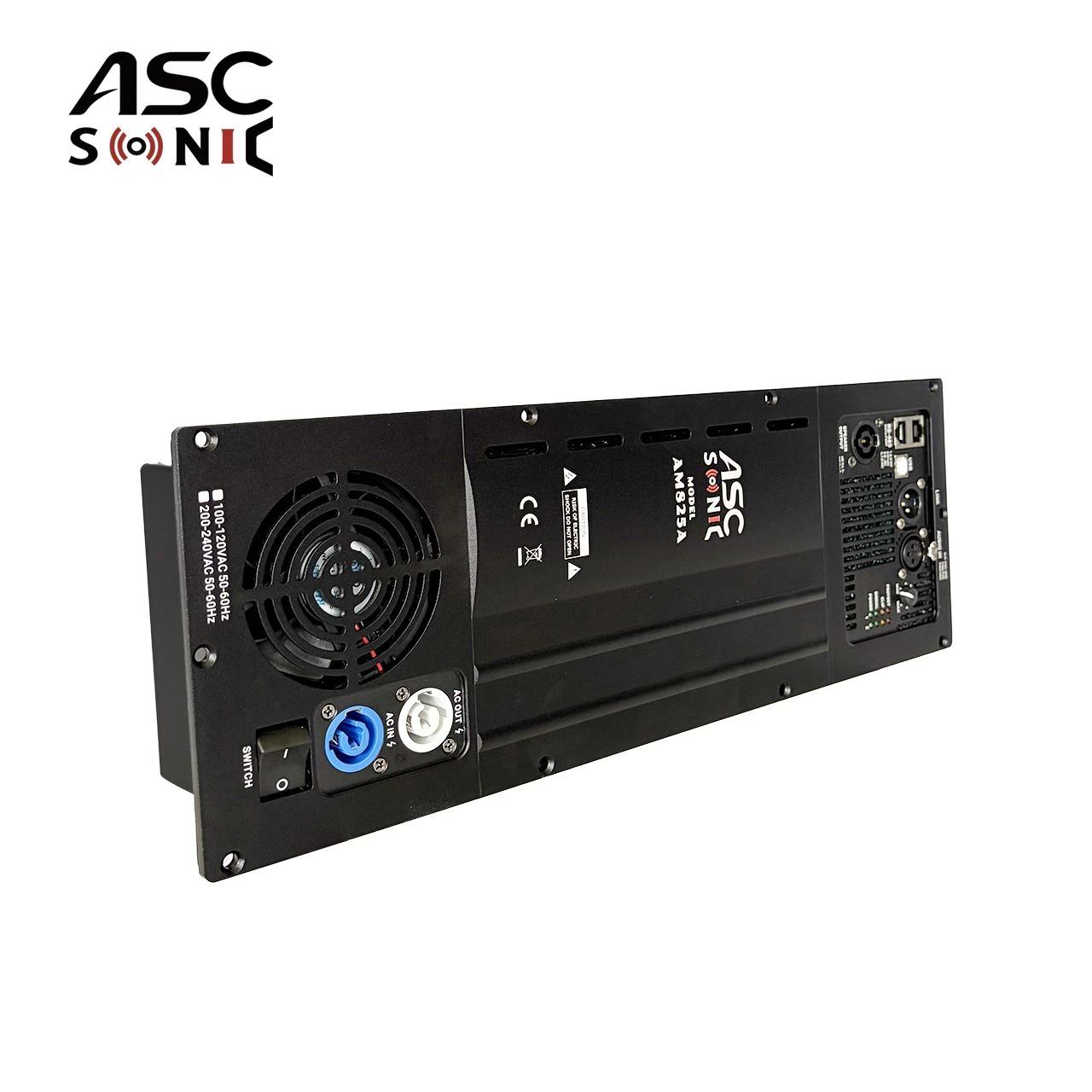

Am825A 2 Channels Class D 800W+250W Sereo DSP Plate Amplifier Module
