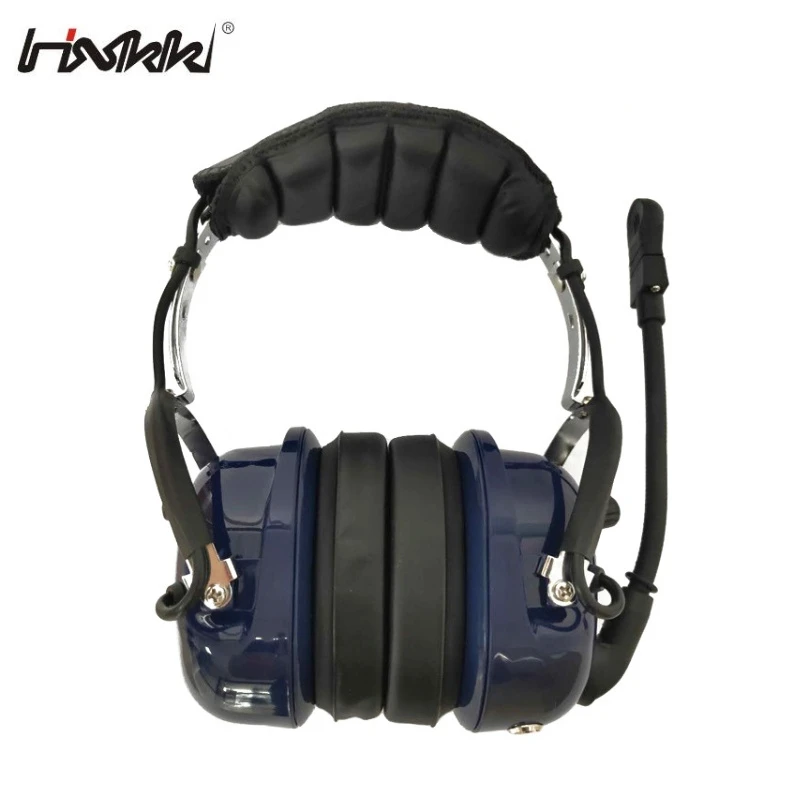

Raytalk Professional Aviation Headset with Anr & for for Pilots (Model pH-600A)
- Communication
- Wired
- Impedance
- 150 ohms (300 ohms each; wired in parallel)
- Frequency Response
- 100Hz to 8 kHz
- Sensitivity
- 95+/-5 dB SPL
- Jack Diameter
- 6.3mm
- Jack Type
- L-shaped
Specifications
| Product name | Raytalk Professional Aviation Headset with Anr & for for Pilots (Model pH-600A) |
|---|---|
| Category | Call Center, Business & Aviation Headsets |
| Customization | Available |
| Wire Material | PVC |
| Color | Black |
| Model NO. | PH-620 |
| Type | Moving-Coil Headphones |
| Communication | Wired |
| Usage | Aviation |
| Function | Noise-Canceling |
| Jack Diameter | 6.3mm |
| Jack Type | L-shaped |
| Coclor | Black |
| Warranty | 12 Months |
| Connector | Ga General Aircraft |
| Ear Seal | Foam Ear Seal, Gel Ear Seal |
| Microphone | Electret , Dynamic |
| Logo | Custom Logo Accepted |
| Earphone Plug | Pj-055( .25"F6.3 Phone Plug) |
| Microphone Plug | Pj-068( .206"F5.2 Phone Plug) |
| Transport Package | Box |
| Specification | 30*25*20 |
| Origin | China |
| HS Code | 8529903000 |
| Production Capacity | 10000 |
| Operating Temperature | -20 to 70 °C |
| Frequency Response | 100Hz to 8 kHz |
| Cordage | Straight cord from headset to molded |
| Sensitivity | 95+/-5 dB SPL |
| Intercom Connections Plug | full volume on ear simulator |
| Impedance | 150 ohms (300 ohms each; wired in parallel) |
| Rate Input | 100mW |
| Weights | 530g |
| Max. Input | 250mW |
| Headset size range Height | 10 to 14 cm |
| Element Type | Noise-canceling electret |
| Boom | Spring tension boom |
| Operating Voltage (supplied by aircraft ) | 8-32 Volts DC |
| Matching Impedance | 150-1000 ohms |
| Price | US$450.00 10-49 Pieces US$400.00 50+ Pieces |
| Supplier | RAYTALK COMMUNICATIONS LTD |
| Data retrieved | 2026-10-23 |
Available options
| Wire Material | PVC |
|---|---|
| Color | Black |
| Jack Diameter | 6.3mm |
| Connector | Ga General Aircraft |
| Impedance | |
| Headset size range Height | 10 to 14 cm |
Additional data
| Headphone | General |
|---|---|
| Type: Dynamic (F50) | Operating Temperature: -20 to 70 °C |
| Frequency Response:100Hz to 8 kHz | Cordage: Straight cord from headset to molded |
| Sensitivity:95+/-5 dB SPL | plug, 150CM |
| (1 kHz, 1 mW input per earcup side) | Intercom Connections Plug: |
| full volume on ear simulator | Earphone Plug: PJ-055( .25"F6.3 phone plug) |
| Impedance:150 ohms (300 ohms each; wired in parallel) | Microphone Plug:PJ-068( .206"F5.2 phone plug) |
| Rate Input:100mW | Weights: 530g |
| Max. Input: 250mW | Headset size range Height: 10 to 14 cm |
| Microphone and Amplifier: | Color: Green/Black/Pink/Red/Yellow/Blue/ White |
| Element Type: Noise-canceling electret | /Gray |
| Frequency Response:100Hz to 5 kHz | Boom: Spring tension boom |
| Operating Voltage (supplied by aircraft ):8-32 Volts DC | |
| Matching Impedance: 150-1000 ohms | |
| Sensitivity:-33+/-4 dB | |
| (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms | |
| AC load) |
| Function | Microphone, Noise Canceling |
|---|---|
| Noise Reduction Ratings | (NRR):24dB |
| Cable length | Straight Cable 150cm |
Product description
The supplier lists this product as Moving-Coil Headphones. Its stated application is Aviation. The listed model is PH-620. Supplier-stated function: Noise-Canceling. The specifications below reflect the information publicly displayed on the listing. Wire Material: PVC. Model NO.: PH-620. Connector: Ga General Aircraft. Frequency Response: 100Hz to 8 kHz. Sensitivity: 95+/-5 dB SPL. Impedance: 150 ohms (300 ohms each; wired in parallel). Matching Impedance: 150-1000 ohms.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Raytalk Professional Aviation Headset with Anr & for for Pilots?
The listed minimum order quantity is 10 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Raytalk Professional Aviation Headset with Anr & for for Pilots cost?
The published price is US$400.00 – 450.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
