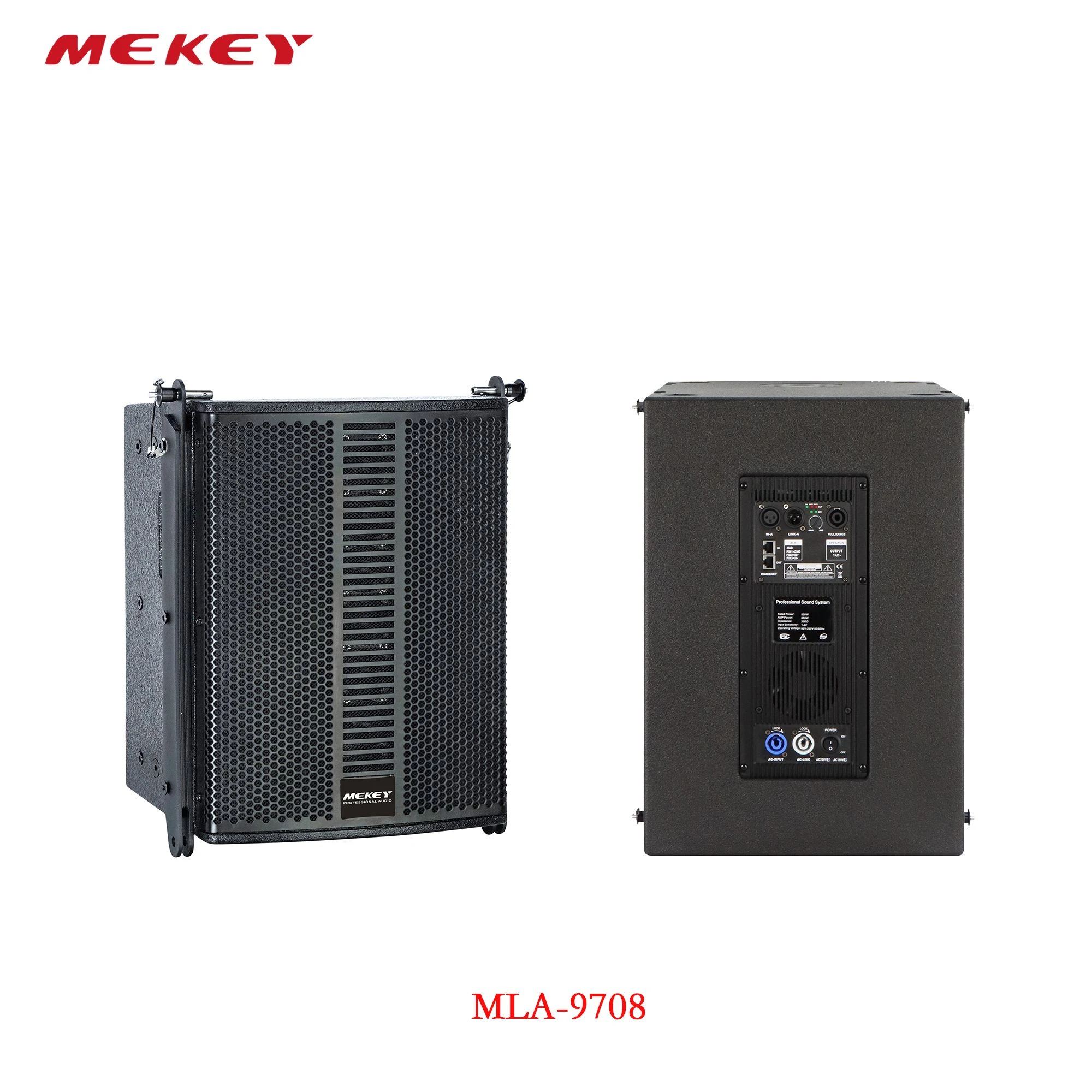

Reliable Audio Loudspeaker with Superior Frequency Response and Sensitivity
- Frequency Response
- 110Hz—20kHz
- Sensitivity
- Mf:99dB Hf:99dB
- Application
- Commercial, Home, Commercial, Banquet Hall,Church,Conference Room
- Noise
- <102dB
- Hi-Fi
- Not Hi-Fi
- Activity
- Passive
Specifications
| Product name | Reliable Audio Loudspeaker with Superior Frequency Response and Sensitivity |
|---|---|
| Category | Other Speakers & Sound Systems |
| Customization | Available |
| Noise | <102dB |
| Hi-Fi | Not Hi-Fi |
| Model NO. | MLA-9704 |
| Activity | Passive |
| Operation Mode | Wire / Remote Control |
| Speaker System | Optional Combination |
| Speaker Material | Wood |
| Application | Commercial, Home, Commercial, Banquet Hall,Church,Conference Room |
| Certification | CE, CQC |
| Monitor | No Screen |
| THD | <0.005% |
| Frequency Response | 110Hz—20kHz |
| Nominal Impedance | 8 Ohms |
| Sensitivity | Mf:99dB Hf:99dB |
| Weight | 4kg |
| Power Rating(AES) | 320W |
| Transport Package | Carton |
| Specification | 240*215*356 MM |
| Origin | China |
| HS Code | 8518220000 |
| Production Capacity | 2000PCS/Month |
| Package Size | 1.00cm * 1.00cm * 1.00cm |
| Package Gross Weight | 1.000kg |
| In Commemoration | China National Archives Library completed! Jiuding AV supports Chinese Cultural Heritage Seed Bank. |
| Price | US$367.00-414.00 5 Pieces(MOQ) |
| Supplier | Guangzhou Jiuding Audio-Visual Technology Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Wood |
|---|---|
| Power Rating(AES) | 320W |
| Nominal Impedance | 8 Ohms |
Additional data
| 1. Woofer: 8×3" (1"20mm voice coil) ferromagnetic with special cooling module |
|---|
| 2. Tweeter: 7×1" (1"25mm voice coil) neodymium magnetic high-frequency driver |
| 3. Sensitivity at 1W/1M: MF: 99dB, HF: 99dB |
| 4. Maximum SPL (Sound Pressure Level): MF: 129dB, HF: 128dB |
| 5. Frequency response range (-6 dB): 110 Hz - 20 kHz |
| 6. Rated power: MF/HF 320W/200W, Program power: MF/HF 640W/400W |
| 7. Rated impedance: MF/HF 4/4Ω |
| 8. Coverage angle (H×V): 120°×16° |
| 9. Birch laminate material |
| 10. Product size (W*D*H): 240*215*356 MM |
| 11. Crossover mode: External crossover |
| 12. Installation: Linear hanging and floor support |
| 13. Maximum number of hangings: 12 units |
| 14. Hanging angles: 0°, 2°, 4°, 6°, 8° |
| 15. Cabinet material: Selected multilayer laminate with a thickness of 12 mm |
| 16. Weight: 8 kg |
Product description
The supplier lists this product. Its stated application is Commercial, Home, Commercial, Banquet Hall,Church,Conference Room. The listed model is MLA-9704. The specifications below reflect the information publicly displayed on the listing. Noise: <102dB. Model NO.: MLA-9704. Speaker Material: Wood. Frequency Response: 110Hz—20kHz. Nominal Impedance: 8 Ohms. Sensitivity: Mf:99dB Hf:99dB. Power Rating(AES): 320W.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Reliable Audio Loudspeaker with Superior Frequency Response and?
The listed minimum order quantity is 5 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Reliable Audio Loudspeaker with Superior Frequency Response and cost?
The published price is US$367.00 – 414.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
MLA-9704 · US$367.00 – 414.00 · MOQ 5 Pieces
