Grilles, Cabinets & Enclosures
Stamped Stainless Steel Speaker Grill with Electrophoretic Coating
US$1.00500–999 Pieces
US$0.251,000–4,999 Pieces
US$0.235,000+ Pieces
MOQ 500 Pieces
- Material
- Stainless Steel
- Standard
- Customized Non-Standard Precision Optical Componen
- Tolerance
- +/-0.005mm
- Surface Treatment
- Electrophoretic Coating
- Machining Method
- Laser Cutting
- Other Processing Method
- CNC, Laser Cutting, Chemical Etching, Etched
Specifications
| Product name | Stamped Stainless Steel Speaker Grill with Electrophoretic Coating |
|---|---|
| Category | Grilles, Cabinets & Enclosures |
| Customization | Available |
| Standard | Customized Non-Standard Precision Optical Componen |
| Tolerance | +/-0.005mm |
| Model NO. | custom |
| Surface Treatment | Electrophoretic Coating |
| Machining Method | Laser Cutting |
| Material | Stainless Steel |
| Other Processing Method | CNC, Laser Cutting, Chemical Etching, Etched |
| Production Type | OEM Custom Manufacturing |
| Other Material Options | Stainless Steel , Copper, Brass, Nickel, Aluminum |
| Sample Lead Time | 3-7 Days |
| Mass Production | 14-20 Days(Depending on Quantity) |
| Custom Hole Shapes | Round, Square, Diamond, Custom |
| Outer Size (Area) | 3-50 Mmdiameter Equivalent, or Custom (Larger Size |
| Thickness | 0.02-0.30 mm(Common: 0.05/0.08/0.10 mm) |
| Hole Diameter (Aperture) | 0.08-0.50 mm(Micro-Holes Possible by Etching) |
| Hole Pitch | 0.12-1.00 mm(Depending on Pattern & Thickness) |
| Dimensional Tolerance | +0.01 Mmtypical (Tighter Possible by Design) |
| Hole Tolerance | +0.01-0.03 Mmdepending on Process & Thickness |
| Flatness | <0.05 mm Typical (Depends on Size/Thickness) |
| Transport Package | Anti-Static Bag + Foam Protection + Export Carton |
| Specification | Custom |
| Origin | Shenzhen, China |
| HS Code | 7326909000 |
| Production Capacity | 50000000 PCS /Year |
| Package Size | 15.00cm * 15.00cm * 2.00cm |
| Package Gross Weight | 0.250kg |
| Lead Time | 7 days (1 - 500 Pieces) 10 days (501 - 20000 Pieces) 15 days (20001 - 50000 Pieces) To be negotiated ( > 50000 Pieces) |
| Price | US$1.00 500-999 Pieces US$0.25 1,000-4,999 Pieces US$0.23 5,000+ Pieces |
| Supplier | Shenzhen Xintu Precision Hardware Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Material | Stainless Steel |
|---|---|
| Other Material Options | |
| Custom Hole Shapes | |
| Outer Size (Area) | |
| Thickness | 0.02-0.30 mm(Common: 0.05/0.08/0.10 mm) |
| Hole Diameter (Aperture) | 0.08-0.50 mm(Micro-Holes Possible by Etching) |
Additional data
| Product Name | Stamped Stainless Steel Speaker Grille with Electrophoretic Coating |
|---|---|
| Also Known As | Speaker GrilleStamped GrilleStainless Steel GrilleAudio Grille |
| Material | Stainless Steel (SUS304 / SUS316), Aluminum, Brass |
| Manufacturing Process | Chemical Etching / Laser Cutting / CNC Machining / Precision Stamping |
| Surface Treatment | Electrophoretic Coating (E-coating), Electroplating, Powder Coating |
| Thickness | 0.05 mm – 1.0 mm |
| Hole Diameter | 0.3 mm – 5.0 mm |
| Open Area | 30% – 70% |
| Hole Pattern | Round / Hexagon / Custom |
| Shape | Ring / Dome / Flat / Custom |
| Surface Finish | Matte / Black Coating / Brushed / Mirror Polishing |
| Tolerance | ±0.01 mm – ±0.05 mm |
| Feature | Dust Protection / Sound Transmission / Speaker Protection |
| Customization | OEM & ODM Available |
| Logo | Laser Marking / Stamping / Etching |
| Item | Electrophoretic Coating (E-coating) | Powder Coating | Electroplating |
|---|---|---|---|
| Process Principle | Paint particles are deposited on the metal surface through an electric field to form a uniform coating layer. | Dry powder is sprayed onto the metal surface and cured at high temperature to form a protective layer. | A metal layer is deposited on the surface through an electrochemical reaction in an electrolyte solution. |
| Coating Material | Resin-based paint coating | Polymer powder coating | Metal layer (nickel, chrome, copper, gold, etc.) |
| Surface Appearance | Smooth matte or semi-gloss finish | Matte or textured coating | Metallic glossy finish |
| Coating Uniformity | Excellent uniform coating, even on complex shapes | Good coverage but may be thicker on edges | May vary depending on part geometry |
| Thickness Range | 10–30 μm | 40–120 μm | 5–25 μm (typical) |
| Corrosion Resistance | Very good corrosion protection | Excellent corrosion resistance | Depends on plating material |
| Wear Resistance | Good mechanical durability | Very strong impact and wear resistance | High hardness depending on plating type |
| Environmental Impact | Environmentally friendly with high coating efficiency | Eco-friendly with minimal solvent emissions | May involve chemical waste or heavy metals |
| Typical Applications | Automotive parts, electronic components, speaker grilles | Outdoor equipment, appliances, metal housings | Decorative parts, connectors, conductive components |
Product description
The supplier lists this product. The listed model is custom. The specifications below reflect the information publicly displayed on the listing. Model NO.: custom. Material: Stainless Steel. Other Material Options: Stainless Steel , Copper, Brass, Nickel, Aluminum.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Stamped Stainless Steel Speaker Grill with Electrophoretic Coating?
The listed minimum order quantity is 500 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Stamped Stainless Steel Speaker Grill with Electrophoretic Coating cost?
The published price is US$0.23 – 1.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
Stamped Stainless Steel Speaker Grill with Electrophoretic Coating
custom · US$0.23 – 1.00 · MOQ 500 Pieces
custom · US$0.23 – 1.00 · MOQ 500 Pieces
Inquiry sent
Related products
All Grilles, Cabinets & Enclosures →
Single 15 Inch Compact Cabinet Box A15 Focus Professional Speaker for Large Stadium
US$350.00 – 650.00
MOQ 1 Piece
6inch Indoor & Outdoor Cabinet Speaker Box (MSP-41, MSP-51, MSP-61, MSP-81)
Price on request
MOQ 200 Pieces

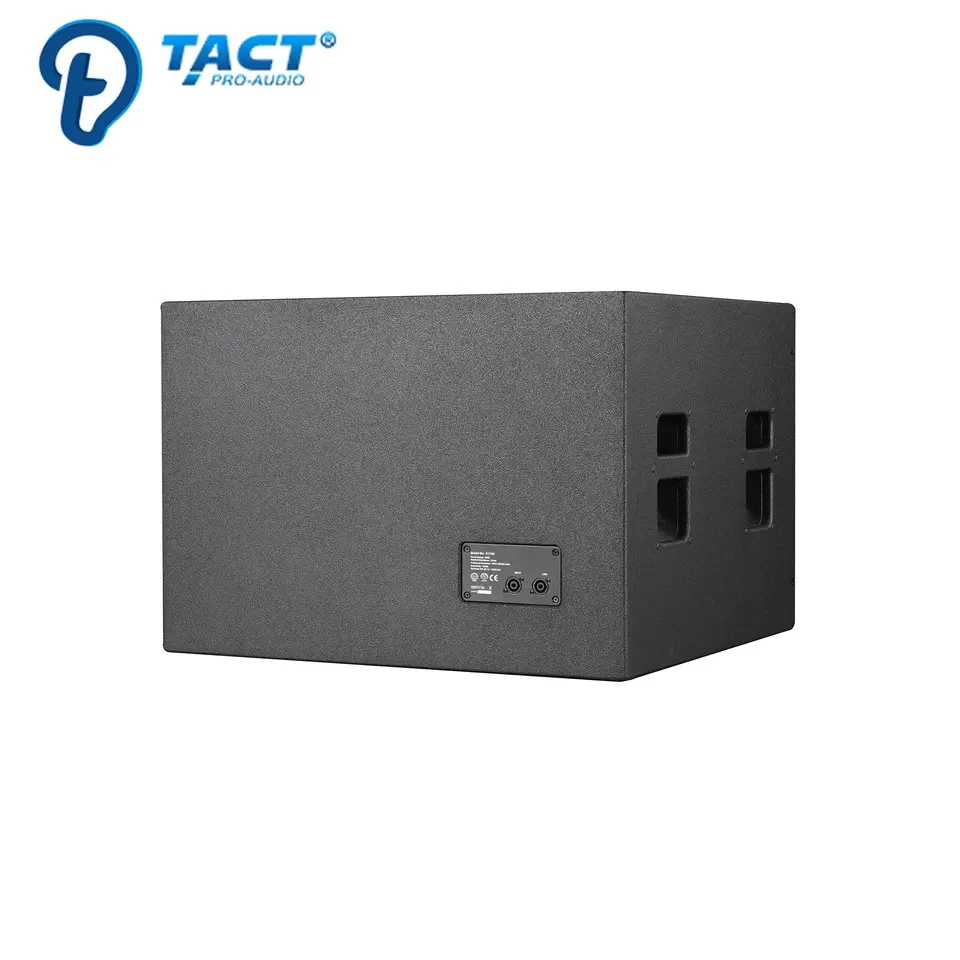

Tact Ba118s Passive Single 18inch Big Bass Speaker 18 Inch Subwoofer Box Design
