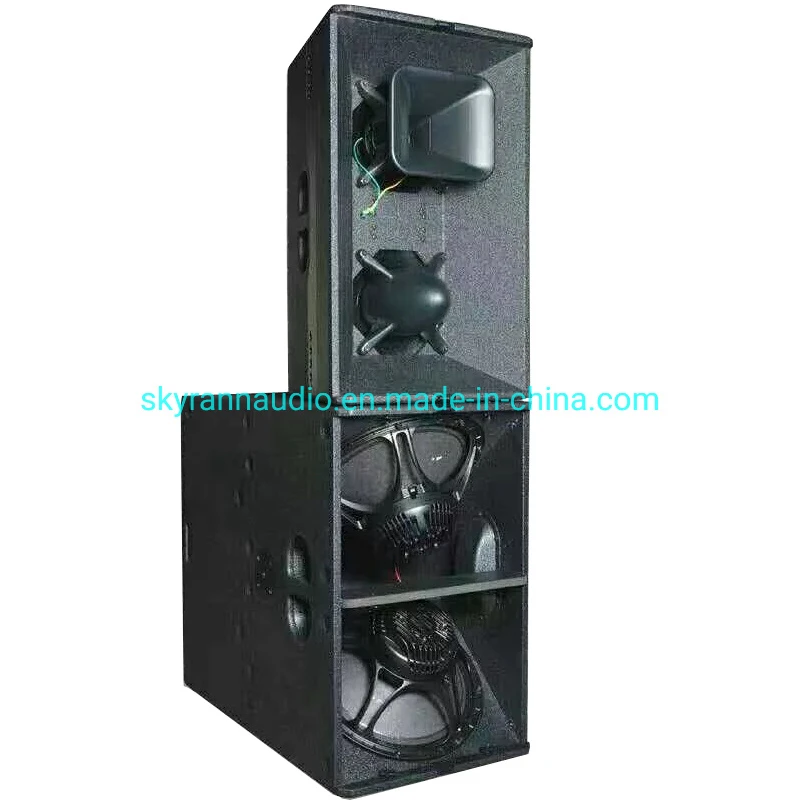

T24n Made in China Line Array Speaker Full Range Speaker
- Power
- 1400W RMS
- Impedance
- 4ohm(bi-amp, LF), 8ohm(bi-amp HF), 4ohm(passive)
- Sensitivity
- 107dB(bi-amp LF),112dB(bi-amp, HF), 110dB(passive)
- Color
- Black
- Way
- Three Way
- Component
- LF2x12" +HF1x3"
Specifications
| Product name | T24n Made in China Line Array Speaker Full Range Speaker |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Customization | Available |
| Color | Black |
| Way | Three Way |
| Model NO. | T24N |
| Transport Package | Carton |
| Specification | plywood |
| Origin | China |
| HS Code | 8518220000 |
| Production Capacity | 5000PCS |
| Power | 1400W RMS |
| Component | LF2x12" +HF1x3" |
| Impedance | 4ohm(bi-amp, LF), 8ohm(bi-amp HF), 4ohm(passive) |
| Frequency Range | 65-18000Hz |
| Sensitivity | 107dB(bi-amp LF),112dB(bi-amp, HF), 110dB(passive) |
| Coverage | 60x40 oder 90x50 HF-horn, exchangeable, rotatable |
| SPL | 143dB |
| DIM | 706x440x440mm |
| N.W | 33kg |
| Parameters | Model |
| LF | 12"x2 |
| SBU | 15"x2 |
| HF | 3"x1 |
| Area | 10000 square meter |
| Worker | more than 200 rich experienced technicians |
| History | more than 8 years ----------- We are a global marketing factory |
| Certificates | ISO9001(2008), RoHS ,CCC, FCC, CE,SGS |
| Market | western European,north American,middle-east Australia, east-south Asian , etc. |
| Our promise | pay more attention to product quality than you |
| Price | US$650.00 1-99 Pieces US$450.00 100+ Pieces |
| Supplier | GZ SKYRANN ELECTRONIC TECH CO., LTD. |
| Data retrieved | 2026-10-23 |
Available options
| Color | Black |
|---|---|
| Power | 1400W RMS |
| Impedance |
Additional data
| Model | T24N | B30 |
|---|---|---|
| Components | LF: 12"x2(Neodyminum) | SBU: 15"x2(Neodyminum) |
| HF: 3"x1 (Neodyminum) | ||
| Frequency Response | 65Hz~18KHz | 35Hz~200Hz |
| Rated Power | LF: 1400W | 1600W |
| Peak Power | LF: 2800W | 6400W |
| HF: 400W | ||
| Nominal Impedance | 4 Ohms (bi-amp LF) | 4 Ohms |
| 8 Ohms (bi-amp HF) | ||
| Dispersion | 60° /90°Hor x 40° /50°Ver | / |
| Sensitivity | 110dB(107dB (bi-amp LF), 112dB (bi-amp HF) | 102dB |
| Max@SPL | 143dB | 136dB |
| Connector | SPEAKON NL4x2 | SPEAKON NL4x2 |
| Material | 15m(0.6") PLYwood | 18mm(0.7")PLYwood |
| Dimensions | W440xD440xH706mm | W446xD800xH706mm |
| Net Weight | 33Kg | 38.7Kg |
Product description
The supplier lists this product. The listed model is T24N. The specifications below reflect the information publicly displayed on the listing. Model NO.: T24N. Power: 1400W RMS. Impedance: 4ohm(bi-amp, LF), 8ohm(bi-amp HF), 4ohm(passive). Frequency Range: 65-18000Hz. Sensitivity: 107dB(bi-amp LF),112dB(bi-amp, HF), 110dB(passive).
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for T24n Made in China Line Array Speaker Full Range Speaker?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does T24n Made in China Line Array Speaker Full Range Speaker cost?
The published price is US$450.00 – 650.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
