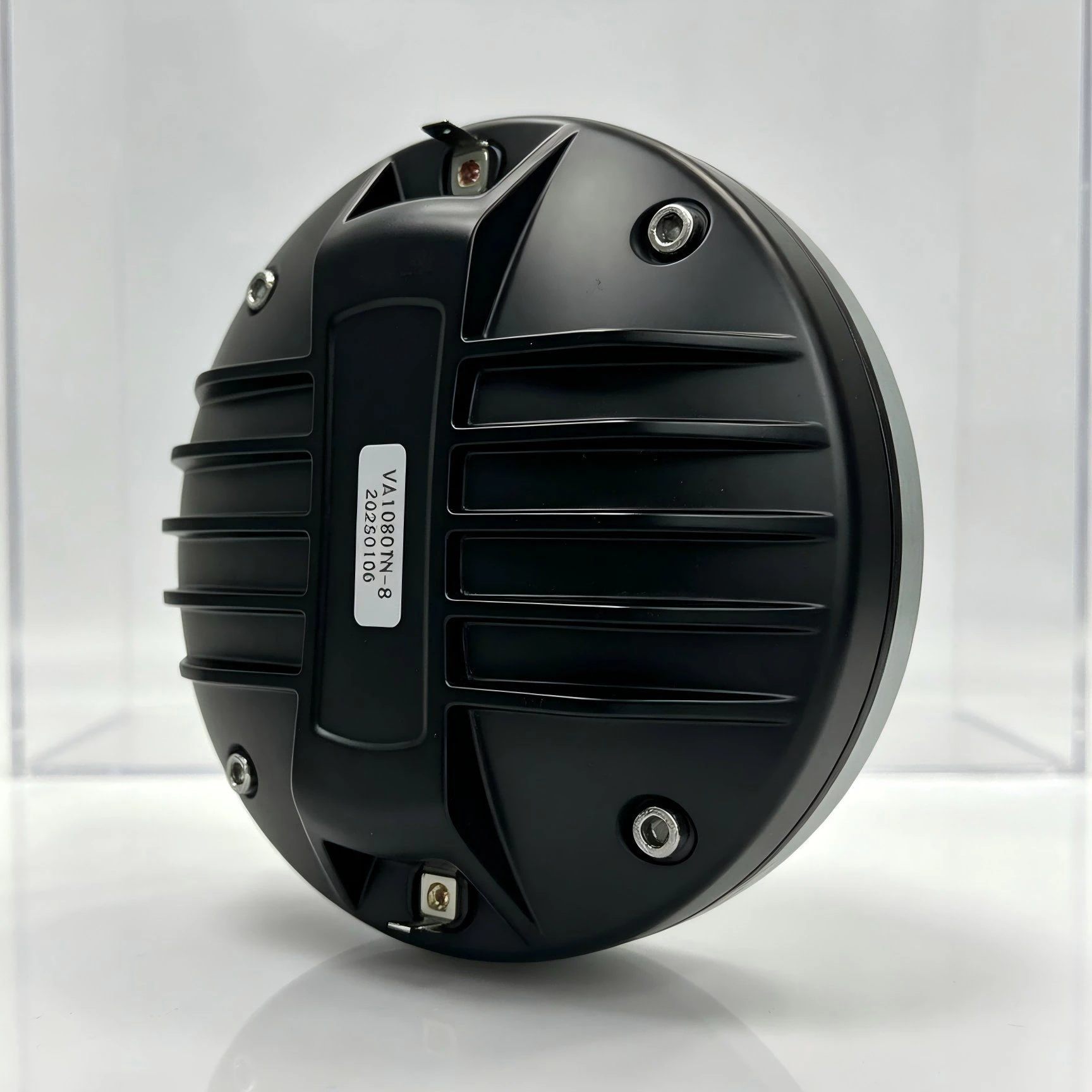

Va1080tn-8 100mm Vc Ti Diaphragm Neo Compression Driver
- Application
- Professional Audio
- Noise
- 109db
- Hi-Fi
- PA
- Activity
- Compatible
- Operation Mode
- Compatible
- Speaker System
- Compatible
Specifications
| Product name | Va1080tn-8 100mm Vc Ti Diaphragm Neo Compression Driver |
|---|---|
| Category | Crossovers, Voice Coils, Cones & Repair Parts |
| Customization | Available |
| Noise | 109db |
| Hi-Fi | PA |
| Model NO. | VA1080TN-8 |
| Activity | Compatible |
| Operation Mode | Compatible |
| Speaker System | Compatible |
| Speaker Material | Compatible |
| Application | Professional Audio |
| Certification | CE, RoHS |
| Monitor | Compatible |
| THD | Compatible |
| AES Power Handling | 140W |
| Voice Coil Diameter | 100mm |
| Diaphragm Material | Titanium |
| Throat Diameter | 38mm (1.5in) |
| Transport Package | Carton |
| Specification | Neodymium, NW 3.3kg |
| Origin | China |
| HS Code | 85182900 |
| Production Capacity | 50000pieces/Year |
| Package Size | 41.50cm * 30.00cm * 16.50cm |
| Package Gross Weight | 30.000kg |
| Lead Time | 7 days (1 - 28 Pieces) To be negotiated ( > 28 Pieces) |
| KEY FEATURES | 109dB 1W/1m sensitivity |
| NOTES | 1 |
| Our quality management system is certified under ISO 9001 | 2015, and we hold multiple invention patents. |
| Price | US$148.00 50-99 Pieces US$142.00 100-299 Pieces US$135.00 300+ Pieces |
| Supplier | Dongguan Weijiasheng Technology Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Speaker Material | Compatible |
|---|---|
| AES Power Handling | 140W |
| Voice Coil Diameter | 100mm |
| Diaphragm Material | Titanium |
| Throat Diameter | 38mm (1.5in) |
Additional data
| Part Number | VA1080TN-8 |
|---|---|
| Throat Diameter | 38mm (1.5in) |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 8.4Ω at 4000Hz |
| AES Power Handling2 | 140W |
| Maximum Power Handling3 | 280W |
| (1W/1m) Sensitivity (1W/1m)4 | 109dB |
| Recommended Crossover5 | 1.0kHz |
| Frequency Range | 500Hz-18kHz |
| Voice Coil Diameter | 100mm |
| Winding Material | Flat Copper Clad Aluminum |
| Former Material | Nomex |
| Flux Density | 2.0T |
| Diaphragm Material | Titanium |
| Phase Plug Material | Plastic |
| Cover Material | Cast Aluminum |
| Magnet Material | Neodymium |
| Net Weight | 3.3kg |
Product description
The supplier lists this product. Its stated application is Professional Audio. The listed model is VA1080TN-8. The specifications below reflect the information publicly displayed on the listing. Noise: 109db. Model NO.: VA1080TN-8. Speaker Material: Compatible. AES Power Handling: 140W. Diaphragm Material: Titanium.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Va1080tn-8 100mm Vc Ti Diaphragm Neo Compression Driver?
The listed minimum order quantity is 50 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Va1080tn-8 100mm Vc Ti Diaphragm Neo Compression Driver cost?
The published price is US$135.00 – 148.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
VA1080TN-8 · US$135.00 – 148.00 · MOQ 50 Pieces
