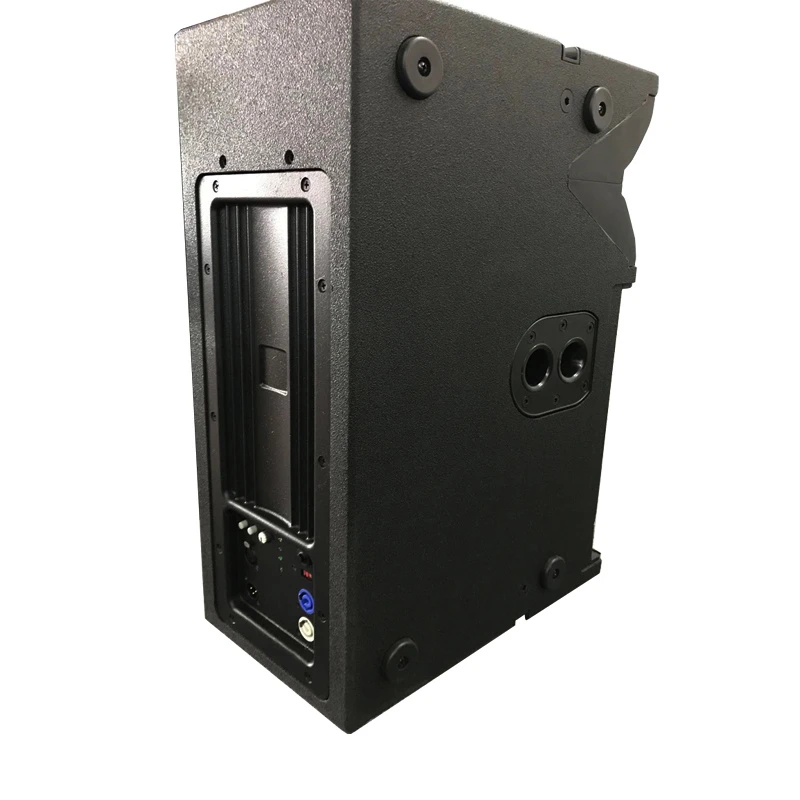

Vrx932lap 12 Inch Neo Active Line Array Speaker
- Driver unit
- LF:1×12 " Neodymium Magnet
- Impedance
- 8ohms
- Frequency response
- 57Hz - 20kHz(-10dB)
- Sensitivity
- 110 dB LF/115 dB HF
- Color
- Black
- Way
- Two Way
Specifications
| Product name | Vrx932lap 12 Inch Neo Active Line Array Speaker |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Model NO. | VRX932 LAP |
| Transport Package | Carton |
| Specification | plywood |
| Origin | China |
| HS Code | 8518220000 |
| Production Capacity | 5000PCS |
| Customization | Available |
| Color | Black |
| Way | Two Way |
| VRX932LA Power | 800W Continuous,3200W Peak |
| Amplifier power | 1100W |
| Impedance | 8ohms |
| Frequency response | 57Hz - 20kHz(-10dB) |
| Sensitivity | 110 dB LF/115 dB HF |
| MAX SPL | 132dB |
| Coverage | (H°xV°) 100°×15° |
| Driver unit | LF:1×12 " Neodymium Magnet |
| HF | 3×1.5" Neodymium Magnet |
| Dimension(H×W×D) | 343mm×597mm×376mm |
| N.W | 23 kg |
| LF | 8ohms HF:8ohms |
| User selectable | 120V/240V (-15%,+10%) |
| Price | US$500.00 1-99 Pieces US$300.00 100+ Pieces |
| Supplier | GZ SKYRANN ELECTRONIC TECH CO., LTD. |
| Data retrieved | 2026-10-23 |
Available options
| Color | Black |
|---|---|
| VRX932LA Power | |
| Amplifier power | 1100W |
| Impedance | 8ohms |
Additional data
| Model | VRX932 LAP | VRX918 LAP |
|---|---|---|
| Frequency Range(-10dB) | 55Hz-20kHz | 30Hz-220Hz |
| Frequency Response(±3dB) | 65Hz-20kHz | 35Hz-220Hz |
| Coverage Pattern | 100*15 nominal | / |
| Maximum Peak Output | 115B SPL at 1m | 120B SPL at 1m |
| LF Driver | 1*2262HPL 305MM (12in) | 1*2268HPL 457MM (18in) |
| HF Driver | 3*2408H 38mm(1.5in) voice coil neodymium compression driver | / |
| Nominal Impedance | LF:8ohms HF:8ohms | LF:8ohms |
| DPC-2 Intermal Amplification Output (at nominal load) | 1600 Watts Peak, 800 Watts Continuous | 1600 Watts Peak, 800 Watts Continuous |
| DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance) | LF: 800 Watts,HF: 120Watts | LF: 800 Watts |
| Audio Input Connector | XLR with loop through | XLR with loop through |
| User Controls | Input Attenuator (0-16dB) ACS (Array Configuration Selector) HF level adjustment (+3dB ,0dB,-3dB) | Best option 90Hz Low Pass 90Hz High-Pass enable/disable for XLR loop thru |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60Hz | 90-132 VAC or 216-264 VAC, 50/60Hz |
| AC Line Voltage | User selectable: 120V/240V (-15%,+10%) | User selectable: 120V/240V (-15%,+10%) |
| AC Input Connecotr | PowerCon (NAC 3MPA) | PowerCon (NAC 3MPA) |
| AC Loop Through Connector | PowerCon (NAC 3MPB) | PowerCon (NAC 3MPB) |
| AC Current Requirements | 5A | 5A |
| Enclosure | 25/18mm birch plywood | 18mm birch plywood |
| Finish | Polyurea Finish | Polyurea Finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Dimensions Net | 349mm*597mm*444mm | 508mm*597mm*749mm |
| Net Weight | 32KG | 51kg |
Product description
The supplier lists this product. The listed model is VRX932 LAP. The specifications below reflect the information publicly displayed on the listing. Model NO.: VRX932 LAP. VRX932LA Power: 800W Continuous,3200W Peak. Amplifier power: 1100W. Impedance: 8ohms. Frequency response: 57Hz - 20kHz(-10dB). Sensitivity: 110 dB LF/115 dB HF. Driver unit: LF:1×12 " Neodymium Magnet.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Vrx932lap 12 Inch Neo Active Line Array Speaker?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Vrx932lap 12 Inch Neo Active Line Array Speaker cost?
The published price is US$300.00 – 500.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
VRX932 LAP · US$300.00 – 500.00 · MOQ 1 Pieces
