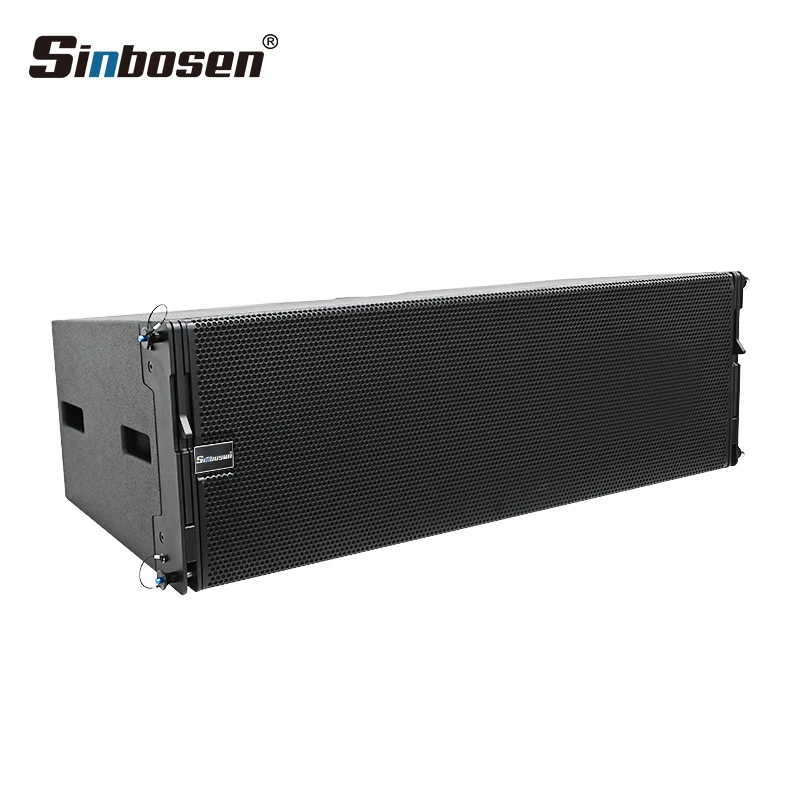

Wl12 Indoor and Outdoor 3 Way Double 12 Inch Professional Passive Speaker
Outdoor & Waterproof Speakers

Wl12 Indoor and Outdoor 3 Way Double 12 Inch Professional Passive Speaker

Model: WL12 Customization available Speakers & Audio Systems
US$800.00 – 900.00
MOQ 1 Piece
Frequency Response
52Hz-18kHz ± 3dB
Type
3-Way 12 Line Array
Noise
≥105dB
Activity
Passive
Speaker System
Line Array
Speaker Material
Wood
Send Inquiry Full specifications

Specifications

Product nameWl12 Indoor and Outdoor 3 Way Double 12 Inch Professional Passive Speaker
CategoryOutdoor & Waterproof Speakers
CustomizationAvailable
Noise≥105dB
ActivityPassive
Model NO.WL12
Speaker SystemLine Array
Speaker MaterialWood
CertificationCE, RoHS
Frequency Response52Hz-18kHz ± 3dB
Type3-Way 12 Line Array
Nominal ImpedanceLf: 8 Ohms, Mf + Hf: 8 Ohms
Conectors2 X Nl4 Type
Weight64kg
Transport PackageStrong Wooden Frame and Carton
Specification120x40x55cm (WxHxD)
OriginGuangdong Province, China
Package Size120.00cm * 40.00cm * 55.00cm
Package Gross Weight64.000kg
LF2 x 12" (300mm)/3" (75mm) voice coil, ultra-long
MF2 x 6.5" (165mm)/2" (50mm) coil, Ferrite
HF3 x 1" (25mm) exit neodymium magnet
PriceUS$800.00-900.00 1 Piece(MOQ)
SupplierGuangzhou Xinbaosheng Audio Equipment Co., Ltd.
Data retrieved2026-10-23

Available options

Speaker MaterialWood
Nominal Impedance
Lf: 8 OhmsMf + Hf: 8 Ohms

Additional data

Specification
Type3way line array element, bi-amp
Frequency Response52Hz-18kHz ± 3dB
DriversLF: 2 x 12" (300mm)/3" (75mm) voice coil, ultra-long
excursion, neodymium magnet drivers
MF: 2 x 6.5" (165mm)/2" (50mm) coil, Ferrite
magnet drivers, horn loaded
HF: 3 x 1" (25mm) exit neodymium magnet
compression drivers, horn loaded
Maximum SplLF: 139dB, MF: 140dB, HF: 145dB
Nominal ImpedanceLF: 8 ohms, MF + HF: 8 ohms
RMS handling capacityLF: 2 x 450 W MF: 280 W HF: 140 W
Dispersion90º horizontal (-6dB), 120º horizontal (-10dB),7.5° vertical
Conectors320Hz active, 4kHz internal passive
Finishmulti-laminate birch and poplar-ply construction
Black textured paint
Conectors2 x NL4 type
Dimensions (ex.pins)(W) 1136mm x (H) 371mm x (D) 526mm
(W) 44.7in x (H) 14.6in x (D) 20.7in
Weight64kg (141lbs)

Product description

The supplier lists this product as 3-Way 12 Line Array. The listed model is WL12. The specifications below reflect the information publicly displayed on the listing. Noise: ≥105dB. Model NO.: WL12. Speaker Material: Wood. Frequency Response: 52Hz-18kHz ± 3dB. Nominal Impedance: Lf: 8 Ohms, Mf + Hf: 8 Ohms.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Wl12 Indoor and Outdoor 3 Way Double 12 Inch Professional Passive?

The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Wl12 Indoor and Outdoor 3 Way Double 12 Inch Professional Passive cost?

The published price is US$800.00 – 900.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
