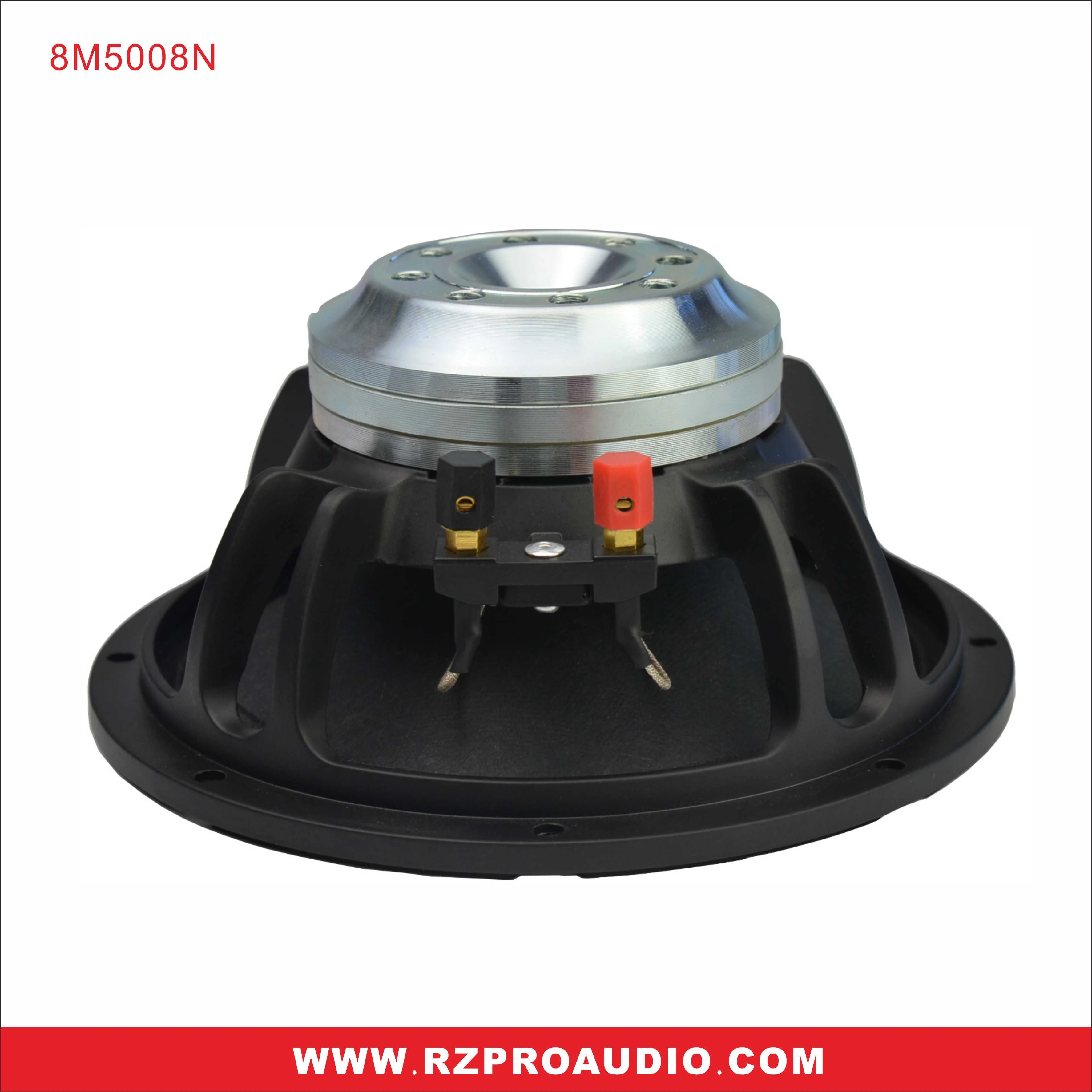

8inch Neodymium MID Line Array PRO Audio Transducer Sound Speaker
- Type
- MID Speaker
- Application
- Commercial
- Cone
- Paper
- Magnet
- Neodymium
- Voice Coil
- Alu out/out with Fiberglass Bobbin
- Spider
- USA Material
Specifications
| Product name | 8inch Neodymium MID Line Array PRO Audio Transducer Sound Speaker |
|---|---|
| Category | Speaker Drivers, Woofers & Tweeters |
| Model NO. | 8M5008N |
| Cone | Paper |
| Magnet | Neodymium |
| Voice Coil | Alu out/out with Fiberglass Bobbin |
| Spider | USA Material |
| Type | MID Speaker |
| Basket | Alu |
| Transport Package | Strong Carton |
| Specification | Shipping Weight ( 4unit) 10 kg |
| Origin | Guangzhou, China |
| HS Code | 8518290000 |
| Production Capacity | 3000/Month |
| Customization | Available |
| Activity | Passive |
| Application | Commercial |
| https | //ruizhengsound.en.made-in-china.com/product/HZgACxdyZrWE/China-8inch-High-Sensitivity-Line-Array-Professional-Speaker-Sound-Speaker.html |
| Price | US$40.00-65.00 2 Pieces (MOQ) |
| Supplier | Foshan Ruizheng Audio Co.,Ltd |
| Data retrieved | 2026-10-23 |
Additional data
| MODEL 8M5008N | ||||
|---|---|---|---|---|
| Specifications | Thiele Small Parameters | |||
| TYPE | Midrange | Fs | 90 Hz | |
| Nominal Diameter | 200 mm/8 in | Re | 11.8ohm | |
| Rated impedance | 16 ohm | Qms | 5.73 | |
| Nominal (AES) | 200 W | Qes | 0.54 | |
| Continuous Program | 400 W | Qts | 0.50 | |
| Sensitivity(1w/1m) | 94.9dB | Vas | 11.6L | |
| Frequency Range | 90Hz-6000Hz | Sd | 0.0227 m2 | |
| Voice Coil Diameter | 50 mm/2.0 in | Mms | 17.98 g | |
| Voice Coil Material | Aluminum out/out | BL | 15.3T.M | |
| Mounting lnformation | Shipping lnformation | |||
| Overall Diameter | φ209 mm/φ8.22 in | Net Weight ( 1unit) | 2.0 kg | |
| Bolt Circle Diameter | φ196 mm/φ7.7 in | Shipping Weight ( 4unit) | 10 kg | |
| Mount Baffle Cut-out | φ186 mm/φ7.3 in | Package Size (4unit) | 43x23x24 Cm | |
| Depth | 97.5 mm/3.83 in | |||
| Bolt Hole Diameter | 8-6mm/8-0.24 in |
Product description
The supplier lists this product as MID Speaker. Its stated application is Commercial. The listed model is 8M5008N. The specifications below reflect the information publicly displayed on the listing. Model NO.: 8M5008N.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for 8inch Neodymium MID Line Array PRO Audio Transducer Sound Speaker?
The listed minimum order quantity is 2 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does 8inch Neodymium MID Line Array PRO Audio Transducer Sound Speaker cost?
The published price is US$40.00 – 65.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
8M5008N · US$40.00 – 65.00 · MOQ 2 Pieces
