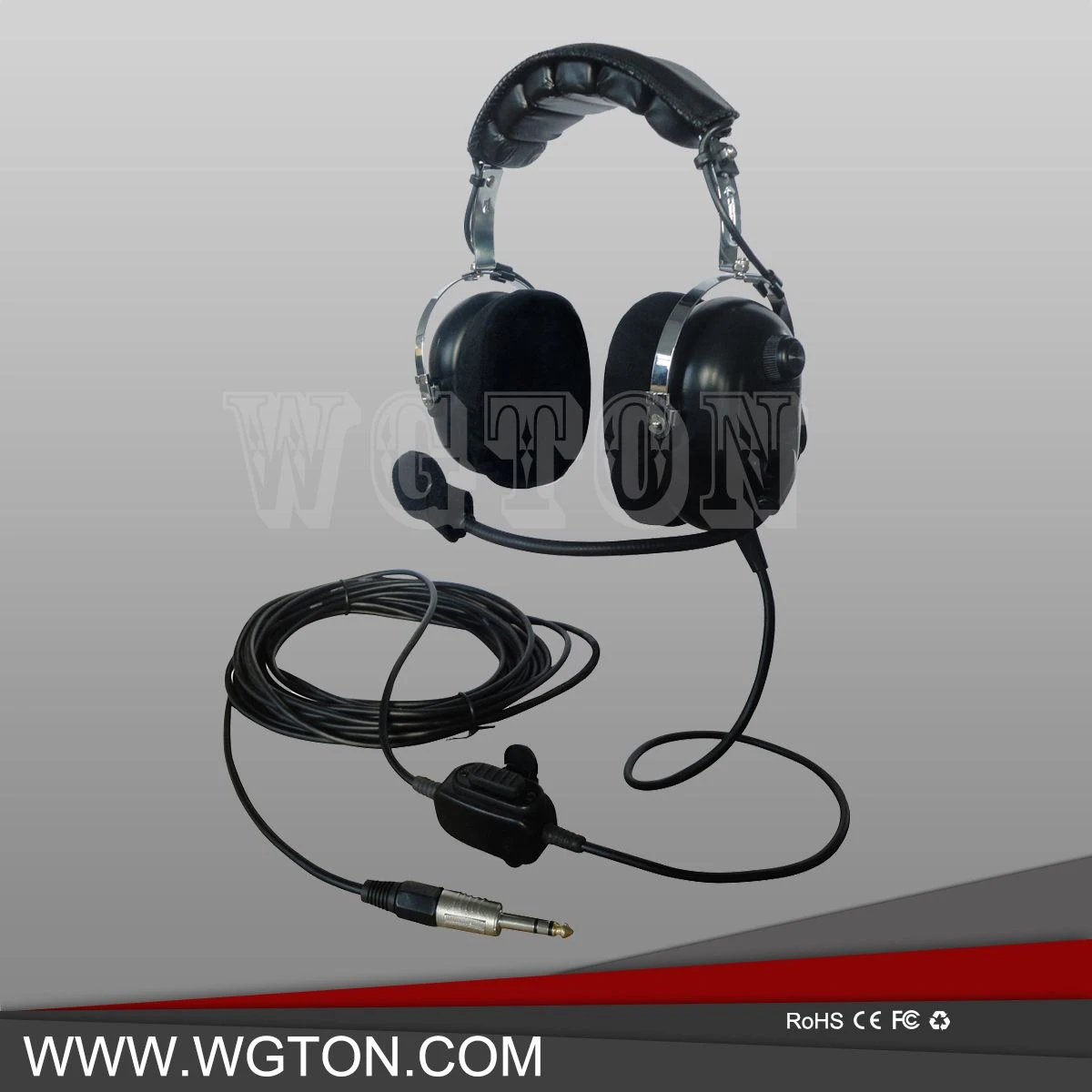

Communication Ground Support Headset with Ptt & Flexible Boom Microphone
- Communication
- Wired
- Impedance
- 165 ohms (330 ohms each; wired in parallel )
- Frequency Response
- 100Hz to 8 kHz
- Sensitivity
- 119±3dB SPL
- Jack Diameter
- 5pin XLR Cable/3.55mm Aux Jack
- Jack Type
- Plug-in
Specifications
| Product name | Communication Ground Support Headset with Ptt & Flexible Boom Microphone |
|---|---|
| Category | Bluetooth & Communication Headsets |
| Wire Material | PU |
| Color | Black |
| Type | Electret Earphone |
| Model NO. | PNR-50W |
| Communication | Wired |
| Usage | Aviation, Mobile Phone |
| Function | Noise-Canceling |
| Jack Diameter | 5pin XLR Cable/3.55mm Aux Jack |
| Jack Type | Plug-in |
| Material | PU |
| Industry | Airport Support |
| User | Airport Staff |
| Warranty | 12 Months |
| Transport Package | 1PCS/Plastic Bag, 50PCS/Polg Bag |
| Specification | Plastic |
| Origin | China |
| HS Code | 8518300000 |
| Production Capacity | 50000 PCS Per Year |
| WGTON Model No. | PNR-50WS |
| Frequency Response | 100Hz to 8 kHz |
| Sensitivity | 119±3dB SPL |
| Impedance | 165 ohms (330 ohms each; wired in parallel ) |
| Rate Input | 80mW |
| Max. Input | 160mW |
| Element Type | Noise-canceling electret |
| Operating Voltage (supplied by aircraft ) | 8-32 Volts DC |
| Matching Impedance | 150-1000 ohms |
| Operating Temperature | -20 to 70 °C |
| Cordage | Straight cord from headset to molded plug, 10M(support customized) |
| Weights | 600g |
| Headset size range Height | 10 to 14 cm |
| The coverage of our audio products | Aviation Headset |
| Shipping | UPS, DHL, EMS, HK EMS, FEDEX, HK Post, TNT(door to door) or special logistics channel |
| About our Market | Our products are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc.And Russia. |
| Normal order | MOQ 100 sets,but it's negotiable for first cooperation |
| Price | US$5.00-10.00 1 Piece(MOQ) |
| Supplier | WGTON HK CO., LIMITED |
| Data retrieved | 2026-10-23 |
Available options
| Wire Material | PU |
|---|---|
| Color | Black |
| Jack Diameter | 5pin XLR Cable/3.55mm Aux Jack |
| Material | PU |
| WGTON Model No | PNR-50WS |
| Impedance |
Additional data
| Headphone (Speaker) | |
|---|---|
| Type: | Dynamic (F50) |
| Frequency Response: | 100Hz to 8 kHz |
| Sensitivity: | 119±3dB SPL |
| Impedance: | 165 ohms (330 ohms each; wired in parallel ) |
| Rate Input: | 80mW |
| Max. Input: | 160mW |
| Microphone and Amplifier: | |
| Element Type: | Noise-canceling electret |
| Frequency Response: | 100Hz to 5 kHz |
| Operating Voltage (supplied by aircraft ): | 8-32 Volts DC |
| Matching Impedance: | 150-1000 ohms |
| Sensitivity: | -46±3dB |
| (ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) | |
| General | |
| Operating Temperature: | -20 to 70 °C |
| Cordage: | Straight cord from headset to molded plug, 10M(support customized) |
| Plug | PJ051 |
| Weights: | 600g |
| Headset size range Height: | 10 to 14 cm |
Product description
The supplier lists this product as Electret Earphone. Its stated application is Aviation, Mobile Phone. The listed model is PNR-50W. Supplier-stated function: Noise-Canceling. The specifications below reflect the information publicly displayed on the listing. Wire Material: PU. Model NO.: PNR-50W. Material: PU. Model No.: Pnr-50W. WGTON Model No.: PNR-50WS. Frequency Response: 100Hz to 8 kHz. Sensitivity: 119±3dB SPL. Impedance: 165 ohms (330 ohms each; wired in parallel ). Matching Impedance: 150-1000 ohms.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Communication Ground Support Headset with Ptt & Flexible Boom?
The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Communication Ground Support Headset with Ptt & Flexible Boom cost?
The published price is US$5.00 – 10.00 per piece. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Customization depends on the manufacturer and order quantity. Describe what you need and we will confirm the options.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
Send an inquiry
PNR-50W · US$5.00 – 10.00 · MOQ 1 Piece
