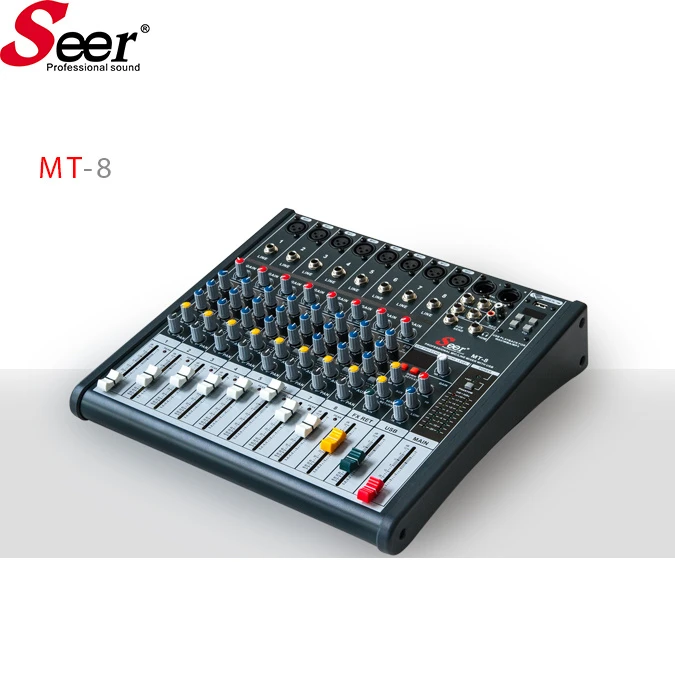

Mt Mixer Series Analog Mixer Active Line Array System 8/12/16 Channel
- Type
- Analog Mixer
- Usage
- Hi-Fi, AV, KTV System, Professional Audio
- Color
- Black
- Used For
- Professional
- Function
- Post Amplifier, Amplifier Combined, /
- Sound Channel
- 4.1
Specifications
| Product name | Mt Mixer Series Analog Mixer Active Line Array System 8/12/16 Channel |
|---|---|
| Category | PA, Stage & Line-Array Speakers |
| Customization | Available |
| Type | Analog Mixer |
| Usage | Hi-Fi, AV, KTV System, Professional Audio |
| Model NO. | MT |
| Used For | Professional |
| Function | Post Amplifier, Amplifier Combined, / |
| Sound Channel | 4.1 |
| Output Number | 4 |
| Voltage | AC 220V |
| Element Number | Push-Pull Amplifier |
| Conductive Mode | D |
| Mic Inc | +22dbu |
| Total Harmonic Distortion(Thd) | (1 kHz 35dB Gain,20Hz-20kHz Bandwidth) |
| Noise | -86 Dbu |
| 150 Ohm Termination | -129.5dbu 20Hz-20kHz |
| Bit | 16 Bit DSP |
| Channel | 4 Channel 8 Channel 16 Channel |
| Control | Twist Button |
| Color | Black |
| Use | USB Player |
| Apply | DJ Bar Nightclub |
| Effect | Control Speaker Digital Amplifier and Processor |
| Size | 485*385*100mm |
| Drivers | Neodymium Ferrite |
| Woofer | 10 Inch |
| Low Drivers | 18 Inch |
| Transport Package | Carton |
| Specification | 5KG |
| Origin | Guangzhou |
| HS Code | 8543709990 |
| Channel Mute switch engaged | -82 dBu |
| Channel Gain knob down | -82 dBu |
| Mic in | 2.5kilohms |
| Channel insert return | 2.5kilohms |
| All other inputs | 10kilohms or greater |
| Tape out | 1.1kilohms |
| All other outputs | 120 ohms |
| High Shelving | ±15db@12kHz |
| Mid Shelving | ±15db@2.5kHz |
| Low shelving | ±15db@80Hz |
| Performance Features | 4/6/8/12/16 Mono Input Channel |
| Price | Negotiable 1 Piece(MOQ) |
| Supplier | Guangzhou Seer Audio Co., Ltd. |
| Data retrieved | 2026-10-23 |
Available options
| Voltage | AC 220V |
|---|---|
| Color | Black |
| Size | 485*385*100mm |
Additional data
| Maximum Levels | |
|---|---|
| Mic inc | +22dBu |
| All Other inputs | +22dBu |
| Main Mix TRS out and XLR out | +28dBu |
| All other outputs | +22dBu |
| Total harmonic distortion(THD) | |
| (1 kHz 35dB gain,20Hz-20kHz bandwidth) | |
| Mic in to insert out | 0.005% |
| Noise: | -86 dBu |
| Signal to Noise Ratio | |
| 82db | |
| 80db | |
| Equivalent input noise(EIN) | |
| 150 ohm termination: | -129.5dBu 20Hz-20kHz |
| Attenuation(Crosstalk) | |
| Channel Mute switch engaged: | -82 dBu |
| Channel Gain knob down: | -82 dBu |
| Frequency response | |
| 20Hz-40Khz +0dB/-1dB | |
| 20Hz-60Khz +0dB/-3Db | |
| CMRR | |
| 1kHz better than -70dB | |
| Impedances | |
| Mic in : | 2.5kilohms |
| Channel insert return: | 2.5kilohms |
| All other inputs: | 10kilohms or greater |
| Tape out: | 1.1kilohms |
| All other outputs: | 120 ohms |
| EQ | |
| High Shelving : | ±15db@12kHz |
| Mid Shelving: | ±15db@2.5kHz |
| Low shelving: | ±15db@80Hz |
Product description
The supplier lists this product as Analog Mixer. Its stated application is Hi-Fi, AV, KTV System, Professional Audio. The listed model is MT. Supplier-stated function: Post Amplifier, Amplifier Combined, /. The specifications below reflect the information publicly displayed on the listing. Model NO.: MT. Noise: -86 Dbu. Drivers: Neodymium Ferrite. Low Drivers: 18 Inch.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Mt Mixer Series Analog Mixer Active Line Array System 8/12/16 Channel?
The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Mt Mixer Series Analog Mixer Active Line Array System 8/12/16 Channel cost?
The price is not publicly listed. Send an inquiry with your quantity and requirements to receive a quotation.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
