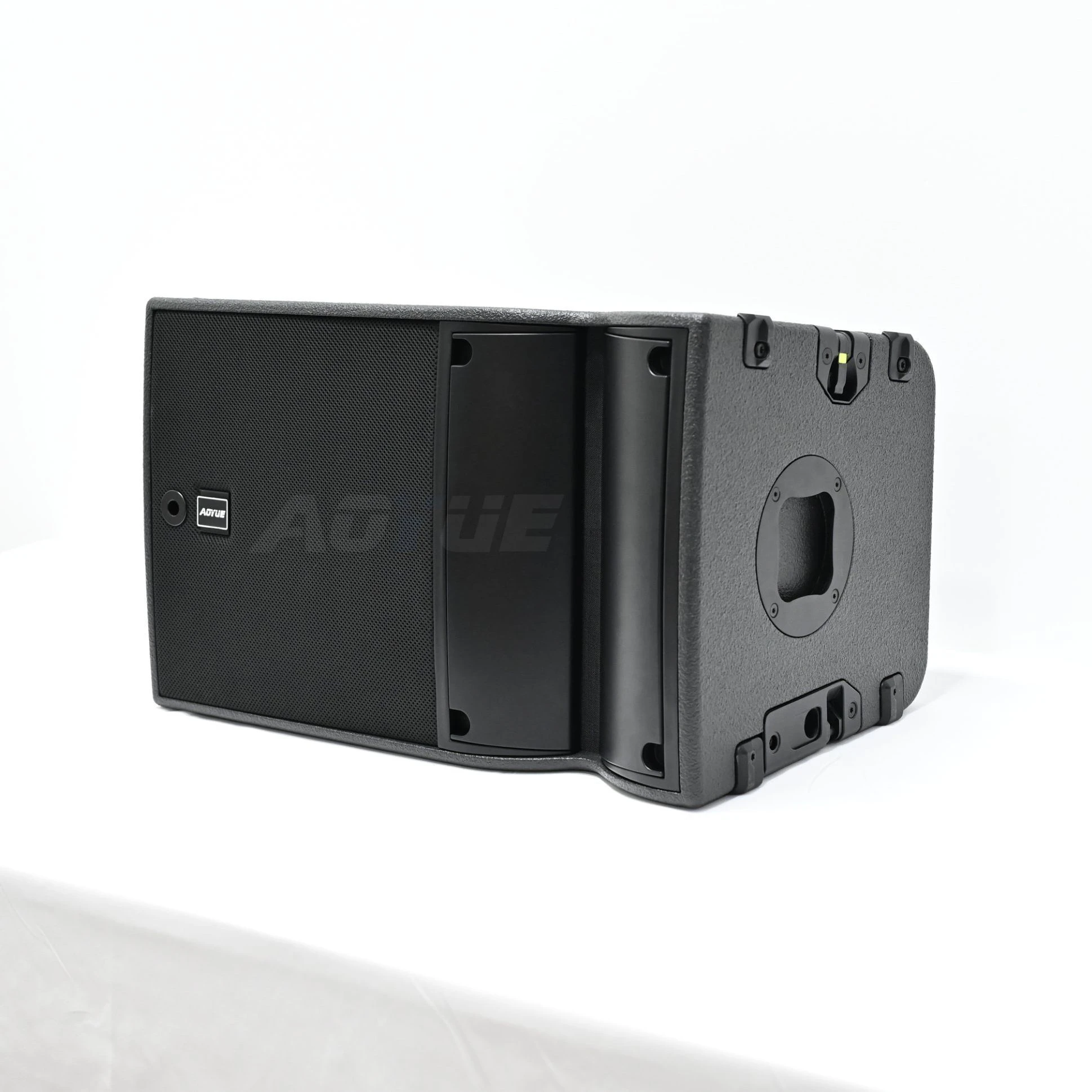

Neodymium Line Array Passive Speaker 10 Inch
PA, Stage & Line-Array Speakers

Neodymium Line Array Passive Speaker 10 Inch

Model: KA10 Customization available Speakers & Audio Systems
US$500.00 – 1,000.00
MOQ 1 Piece
Application
Commercial, Home
Speaker System
Optional Combination
Speaker Material
Wood
Certification
CE, RoHS
Max Spl
137db
Frequency Response(-3db)
66 Hz-20 kHz
Send Inquiry Full specifications

Specifications

Product nameNeodymium Line Array Passive Speaker 10 Inch
CategoryPA, Stage & Line-Array Speakers
Model NO.KA10
Speaker SystemOptional Combination
Speaker MaterialWood
ApplicationCommercial, Home
CertificationCE, RoHS
Max Spl137db
Frequency Response(-3db)66 Hz-20 kHz
CabinetFirst Grade Russian Birch Plywood
ComponentsLf: 2X10" Hf: 1X2.5"
SpeakerNeodymium Magnet
Transport PackageStrong Wooden Frame and Carton
Specification59x35x37cm (WxHxD)
OriginGuangdong Province, China
HS Code85182200
Production Capacity1000 Units/ Month
Package Size50.00cm * 50.00cm * 80.00cm
Package Gross Weight35.000kg
CustomizationAvailable
ActivityPassive
Operation ModeWire / Remote Control
Enclosure10°
L-Fins110° / 70° symmetric ; 90° asymmetric
LF1 × 10″ cone drivers
HF1 × 2.5″ diaphragm compression drivers
Feature1. Compact size, delivering high sound pressure level and excellent sound-to-volume ratio
PriceUS$500.00-1,000.00 1 Piece (MOQ)
SupplierGuangzhou Xinbaosheng Audio Equipment Co., Ltd.
Data retrieved2026-10-23

Available options

Speaker MaterialWood

Additional data

Usable bandwidth (-10 dB)66 Hz - 20 kHz
Maximum SPL1137 dB
Nominal directivity (-6 dB)Enclosure: 10°
L-Fins : 110° / 70° symmetric ; 90° asymmetric
TransducersLF: 1 × 10″ cone drivers
HF: 1 × 2.5″ diaphragm compression drivers
Acoustical loadLF: bass-reflex, L-Vents
HF: DOSC waveguide; Panflex
Nominal impedance8Ω
Connectors2 × 4-point speakON
Rigging and handlingflush-fitting 2-point rigging system 2 × handles 8 × corner stop 2 × ground runner
Dimensions581 mm ( 22.9 in) / 350 mm (13.8 in) / 367 mm (14.5 in)
Weight (net)22 kg / 49 lb
Cabinetpremium grade Baltic beech and birch plywood
FrontCoated steel grill
Acoustically neutral 3D fabric
Rigging componentsHigh grade steel with anti-corrosion coating

Product description

The supplier lists this product. Its stated application is Commercial, Home. The listed model is KA10. The specifications below reflect the information publicly displayed on the listing. Model NO.: KA10. Speaker Material: Wood. Frequency Response(-3db): 66 Hz-20 kHz.

Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.

FAQ

What is the minimum order quantity for Neodymium Line Array Passive Speaker 10 Inch?

The listed minimum order quantity is 1 piece. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.

How much does Neodymium Line Array Passive Speaker 10 Inch cost?

The published price is US$500.00 – 1,000.00 per piece. Final pricing depends on quantity, options and destination.

Can it be customized with my logo, color or packaging?

Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.

Where do these specifications come from?

Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
