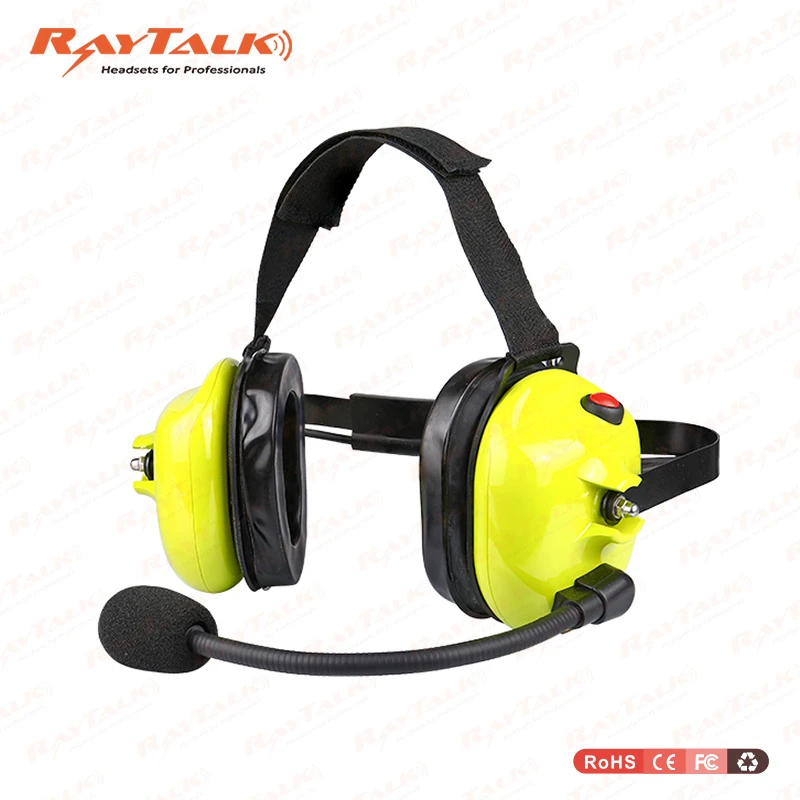

Over The Head Noise Canceling Headset with XLR 5pin
- Communication
- Wired
- Impedance
- 32 Ω at around 1KHz
- Sensitivity
- 0.-71dB ±3dB (at L=50cm)(0dB=1v/pa,1KHz)
- Jack Diameter
- 3.5mm
- Jack Type
- Two Way Radio/Walkie Talkie
- Wire Material
- PU
Specifications
| Product name | Over The Head Noise Canceling Headset with XLR 5pin |
|---|---|
| Category | Bluetooth & Communication Headsets |
| Customization | Available |
| Wire Material | PU |
| Color | Blue, Black, Yellow |
| Model NO. | RAN-3000Q |
| Type | Electret Earphone |
| Communication | Wired |
| Usage | Two Way Radio/Walkie Talkie |
| Function | Noise-Canceling |
| Jack Diameter | 3.5mm |
| Jack Type | Two Way Radio/Walkie Talkie |
| Product Type | Helmet Headset for Two Way Radio/Walkie Talkie |
| Using | Two Way Radio/Walkie Talkie |
| Voice | Loud and Clear |
| Product Style | Headband |
| Connector | All Kinds Two Way Radio Connectors |
| Product Color | Green, Black, Pink, Red, Yellow, Blue, White, Gray |
| Applications | for Paraglider/Paramotor/Skydiver |
| Microphone Feature | Noise Canceling Microphone |
| Warranty | 12 Months |
| Item | Over The Head Two Way Radio Headset |
| Transport Package | Standard Airworthy Packing |
| Specification | CE/ISO |
| Origin | China |
| HS Code | 85183010 |
| Production Capacity | 1000PCS/Week |
| Size | outer diameter 50mm |
| Weight | 14.8 gram |
| Magnet | materials ferrite size Φ20.5*4.5mm |
| Impedance | 32 Ω at around 1KHz |
| Power rating | normal 30mW RMS Maximum 100Mw |
| Output sound pressure | 95±3dB /1mW/1cm with artificial ear per channel |
| level | average at 1.0k, 1.2k, 1.5k, 2.0Hkz |
| Resonance Fo | 100Hz |
| Frequency range | 100Hz-3000Hz |
| Distortion | 5% maximum at 1KHz/1mW/1cm |
| Abnormal sound test | must be normal tested by 3.0 voltage sine wave |
| Case materia | ABS plastic |
| Sensitivity | 0.-71dB ±3dB (at L=50cm)(0dB=1v/pa,1KHz) |
| Frequency | 150Hz-7000Hz |
| Pattern | Hypercardioid |
| BOOM TYPE | universal flexible |
| Headband | padded headband for increased comfort, adjustable headband |
| Plug | microphone & earphone 5 mini chassis XLR connector, male |
| Packaging | 1pc headset in a white box. |
| MOQ | 50/pcs |
| After-sale service | Shipping |
| Price | US$65.00 1-23 Pieces US$50.00 24-49 Pieces US$49.00 50+ Pieces |
| Supplier | RAYTALK COMMUNICATIONS LTD |
| Data retrieved | 2026-10-23 |
Available options
| Wire Material | PU |
|---|---|
| Color | |
| Jack Diameter | 3.5mm |
| Product Color | |
| Connector | All Kinds Two Way Radio Connectors |
| Size | outer diameter 50mm |
Additional data
| Technical Specification |
|---|
| EARPHONE Size: outer diameter 50mm Weight: 14.8 gram Magnet: materials ferrite size Φ20.5*4.5mm Impedance: 32 Ω at around 1KHz Power rating: normal 30mW RMS Maximum 100Mw Output sound pressure: 95±3dB /1mW/1cm with artificial ear per channel level: average at 1.0k, 1.2k, 1.5k, 2.0Hkz Resonance Fo: 100Hz Frequency range: 100Hz-3000Hz Distortion: 5% maximum at 1KHz/1mW/1cm Abnormal sound test: must be normal tested by 3.0 voltage sine wave |
| MICROPHONE Type: noise canceling dynamic mic Case materia: ABS plastic Sensitivity: 0.-71dB ±3dB (at L=50cm)(0dB=1v/pa,1KHz) Impedance low impedance 150Ω Frequency: 150Hz-7000Hz Pattern: Hypercardioid |
| BOOM TYPE: universal flexible Headband: padded headband for increased comfort, adjustable headband Plug: microphone & earphone 5 mini chassis XLR connector, male Color: black, blue, yellow, carbon fiber Switch: Type: push to talk Case materia: ABS plastic Color: blue/ red/ black |
Product description
The supplier lists this product as Electret Earphone. Its stated application is Two Way Radio/Walkie Talkie. The listed model is RAN-3000Q. Supplier-stated function: Noise-Canceling. The specifications below reflect the information publicly displayed on the listing. Wire Material: PU. Model NO.: RAN-3000Q. Connector: All Kinds Two Way Radio Connectors. Impedance: 32 Ω at around 1KHz. Power rating: normal 30mW RMS Maximum 100Mw. Frequency range: 100Hz-3000Hz. Sensitivity: 0.-71dB ±3dB (at L=50cm)(0dB=1v/pa,1KHz). Frequency: 150Hz-7000Hz.
Specifications, options and prices reproduce the supplier's published listing. Please confirm critical parameters with us before ordering.
FAQ
What is the minimum order quantity for Over The Head Noise Canceling Headset with XLR 5pin?
The listed minimum order quantity is 1 pieces. Tell us your quantity in the inquiry form and we will confirm it with the manufacturer.
How much does Over The Head Noise Canceling Headset with XLR 5pin cost?
The published price is US$49.00 – 65.00 per piece, with lower tier prices for larger quantities. Final pricing depends on quantity, options and destination.
Can it be customized with my logo, color or packaging?
Yes — the listing states that customization is available (Available). Describe your requirements in the inquiry.
Where do these specifications come from?
Specifications, options and prices reproduce the manufacturer's published listing on the date shown in the specification table. Please confirm critical parameters before ordering.
